Startech Monitor Desk Mount ARMPIVOT

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ARMPIVOT

Mount a display on your desk surface or through a grommet, with adjustable height and cable management

Adjustable monitor arm with several position / viewing angle adjustments
Supports displays from 12 to 30” (30lbs / 14kg capacity)
TAA compliant for GSA Schedule purchases

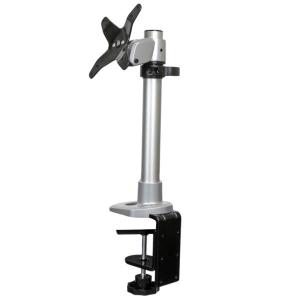

The ARMPIVOT Adjustable Monitor Arm lets you mount a display to your desk or table on a simple yet stylish monitor pole, with tilt, pivot and height adjustments. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

ARM PIVOT dispone di un supporto del monitor elegante, con una facile regolazione dell'altezza, posizione e angoli di vision del monitor.

The desk-mount monitor arm features an 11.89in (302mm) tall support post, for a much greater height adjustment range than a typical monitor stand can provide. For viewing longer pages or blocks of code without scrolling, the LCD arm also supports landscape to portrait display rotation.

Mounting your displays on a support post above the desk surface enables you to adjust your display height, position and viewing angles easily for an ergonomic work environment, with the added benefit of reclaiming valuable workspace on your desk.

Supporting 12 - 30" displays up to a maximum weight capacity of 30lbs (14kg), the monitor mount holds your display with ease, and integrates a cable management hook to keep things neat. For added installation flexibility, the included mounting hardware can either clamp to the side of your desk, table or mount through a grommet hole.

Backed by a StarTech.com 2-year warranty and free, lifetime technical support.

The StarTech.com Advantage

Experience an ergonomic workspace, through simple display height, position and viewing angle adjustments
Maximize space efficiency by mounting your displays above the desk surface

Applications

Mount a display to the side of your desk or table with tilt, swivel and height adjustment capabilities
Grommet mount your display through a desk or above a server cabinet and position as needed
Lift your display higher above your desk surface for ideal viewing angles
Rotate displays to portrait orientation for web design and coding

Warranty Information
Warranty	2 Years
Hardware
# of displays supported	1
Articulating	No
Height Adjustment	Pole-mounted
Mounting Options	Desk & Grommet Clamp
VESA Hole Pattern(s)	75x75 mm
	100x100 mm
Wallmountable	No
Performance
Display Rotation	360°
Height Adjustment	Yes
Maximum Display Size	30in
Mounting Surface Thickness	0.39 - 4in (10 - 101mm)
Swivel / Pivot	360° around the support post
Tilt	+90° / -15°
Weight Capacity	30.9 lb [14 kg]
Physical Characteristics
Color	Silver
Enclosure Type	Steel and Plastic
Product Weight	4.4 lb [2 kg]
Packaging Information
Shipping (Package) Weight	5.7 lb [2.6 kg]
What's in the Box
Included in Package	1 - Support Post
	1 - Monitor Mount
	1 - Large C Clamp
	1 - Small C Clamp
	1 - Hand Screw
	1 - Pressure Plate
	4 - Thumb Screws
	4 - M6x12mm Phillips Screws
	4 - M5x14mm Hex Screws
	1 - M4x15mm Phillips Screw
	1 - Male Round Washer
	1 - Female Round Washer
	1 - Cable Clip
	1 - EVA Cushion
	1 - M3 (2.5mm) Allen Wrench
	1 - Instruction Manual

Height Adjustable Monitor Arm - Grommet / Desk Mount with Cable Hook

Brand Name: StarTech.com

Device Supported: Monitor

Maximum Load Capacity: 14 kg

Maximum Screen Size Supported: 76.2 cm (30")

Product Type: Mounting Arm

VESA Mount Standard: 100 x 100

VESA Mount Standard: 75 x 75

Basic
Brand Name:	StarTech.com
Device Supported:	Monitor
Maximum Load Capacity:	14 kg
Maximum Screen Size Supported:	76.2 cm (30")
Product Type:	Mounting Arm
VESA Mount Standard:	100 x 100
	75 x 75

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ARMPIVOT
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	Height Adjustable Monitor Arm - Grommet / Desk Mount with Cable Hook
Product Type:	Mounting Arm

Miscellaneous
Compatibility:	LCD/LED Monitors
Environmental Certification:	RoHS
Environmentally Friendly:	Yes
Package Contents:	1 x Support Post 1 x Monitor Mount 1 x Large C Clamp 1 x Small C Clamp 1 x Hand Screw 1 x Pressure Plate 4 x Thumb Screws 4 x M6x12mm Phillips Screws 4 x M5x14mm Hex Screws 1 x M4x15mm Phillips Screw 1 x Male Round Washer 1 x Female Round Washer 1 x Cable Clip 1 x EVA Cushion 1 x M3 (2.5mm) Allen Wrench 1 x Instruction Manual

Physical Characteristics
Colour:	Silver
Material:	Plastic
	Steel
VESA Mount Compatible:	Yes
VESA Mount Standard:	100 x 100
	75 x 75
Weight (Approximate):	2.49 kg

Product Information
Device Supported:	Monitor
Features:	Adjustable Height
	Adjustable Viewing Angle
	Cable Management
	Ergonomic
	Flexible
	Pivot
	Rotate
	Swivel
	Tilt
Maximum Load Capacity:	14 kg
Maximum Screen Size Supported:	76.2 cm (30")
Minimum Screen Size Supported:	30.5 cm (12")
Number of Displays Supported:	1

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537239

Vendor Part No ARMPIVOT

UPC/EAN Number 065030858588
