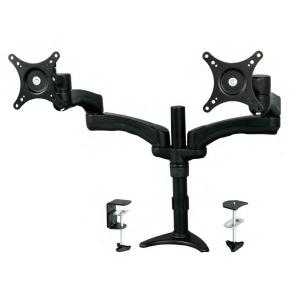

Startech Desk-Mount Dual Monitor Arm - Articulating ARMDUAL

Features

armdual desk displays mount articulating

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ARMDUAL

Mount two displays on your desk surface or through a grommet, with adjustable height and cable management

Dual articulating arms for a wide range of motion
Supports displays from 12 to 24” (30lbs / 13.6kg capacity)
360° rotation around the support post and at the elbow

The ARMDUAL Articulating Dual-Monitor Arm lets you mount two displays to your desk or table, with extension, tilt, pan, swivel, pivot and height adjustments.

Articulating Dual Monitor Arm

The desk-mount monitor arm offers a wide range of motion on several axes, giving you the freedom to place your displays side-by-side, spread apart, back-to-back or anywhere in between. For viewing longer pages or blocks of code without scrolling, the dual arm also supports landscape to portrait display rotation for either monitor.

Mounting your displays on a dual monitor arm above the desk surface enables you to adjust your display height, position and viewing angles easily for an ergonomic work environment, with the added benefit of reclaiming valuable workspace on your desk.

Supporting 12 - 24" displays up to a maximum weight capacity of 30lbs (13.6kg) per arm, the dual arm monitor mount holds your displays with ease, and integrates a cable management channel to keep things neat. For added installation flexibility, the included mounting hardware can either clamp to the side of your desk / table or mount through a grommet hole, for a versatile dual-monitor mounting solution.

Backed by a StarTech.com 2-year warranty and free, lifetime technical support.

The StarTech.com Advantage

Place your displays exactly where you want them, with dual articulating monitor arms
Experience an ergonomic workspace, through simple display height, position and viewing angle adjustments
Maximize space-efficiency by mounting your displays above the desk surface

Applications

Mount dual displays to the side of your desk or table with a wide range of adjustment capability
Grommet mount your displays through a desk or above a server cabinet and position as you need them
Spread displays apart or position them back-to-back for multi-user workstations
Rotate displays to portrait orientation for web design and coding

Warranty Information
Warranty	2 Years
Hardware
# of displays supported	2
Articulating	Yes
Height Adjustment	Pole-mounted
Mounting Options	Desk & Grommet Clamp
VESA Hole Pattern(s)	75x75 mm
	100x100 mm
Wallmountable	No
Performance
Display Rotation	360°
Height Adjustment	Yes
Maximum Arm Extension	17.5 in [445 mm]
Maximum Display Size	24in
Mounting Surface Thickness	Desk Clamp: 0.39 - 2.95in (10 - 75mm) Grommet Clamp: 0.39 - 3.74in (10 - 95mm)
Pan	+/- 90°
Swivel / Pivot	360° around the support post 180° at the shoulder 360° at the elbow
Tilt	+/- 90°
Weight Capacity	30 lb [13.6 kg]
Physical Characteristics
Color	Black
Enclosure Type	Steel and Plastic
Product Weight	9.5 lb [4.3 kg]
Packaging Information
Shipping (Package) Weight	12 lb [5.4 kg]
What's in the Box
Included in Package	2 - Articulating LCD Arms
	1 - Desk Clamp
	1 - Grommet Plate
	1 - DEK
	2 - Cover Plates
	8 - Spacers
	8 - M4x12mm Phillips Screws
	8 - M4x25mm Phillips Screws
	2 - M6x12mm Phillips Screws
	2 - M6 Washers
	2 - Cable Clip
	4 - Plastic Gasket Cushions
	1 - 2.5mm Allen Wrench
	1 - 4mm Allen Wrench
	1 - 6mm Allen Wrench
	1 - Instruction Manual

Articulating Dual Monitor Arm - Grommet / Desk Mount with Cable Management & Height Adjust

Brand Name: StarTech.com

Device Supported: Flat Panel Display

Maximum Load Capacity: 19.96 kg

Maximum Screen Size Supported: 61 cm (24")

Product Type: Desk Mount

TAA Compliant: Yes

VESA Mount Standard: 100 x 100

VESA Mount Standard: 75 x 75

Basic
Brand Name:	StarTech.com
Device Supported:	Flat Panel Display
Maximum Load Capacity:	19.96 kg
Maximum Screen Size Supported:	61 cm (24")
Product Type:	Desk Mount
TAA Compliant:	Yes
VESA Mount Standard:	100 x 100
	75 x 75

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ARMDUAL
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	Desk Mount
Product Type:	Desk Mount

Miscellaneous
Additional Information:	Maximize space-efficiency by mounting your displays above the desk surface Get the most in-demand Ultrabook accessories in a single box, with this convenient kit Experience an ergonomic workspace, through simple display height, position and viewing angle adjustments
Certifications & Standards:	FCC
Compatibility:	2 x LCD/LED Monitors
Environmental Certification:	RoHS
Environmentally Friendly:	Yes
Package Contents:	2 x Articulating LCD Arms 1 x Desk Clamp 1 x Grommet Plate 1 x DEK 2 x Cover Plates 8 x Spacers 8 x (M4 x 12mm) Phillips Screws 8 x (M4 x 25mm) Phillips Screws 2 x (M6 x 12mm) Phillips Screws 2 x M6 Washers 2 x Cable Clip 4 x Plastic Gasket Cushions 1 x 2.5mm Allen Wrench 1 x 4mm Allen Wrench 1 x 6mm Allen Wrench 1 x Instruction Manual
TAA Compliant:	Yes

Physical Characteristics
Colour:	Black
Material:	Plastic
	Steel
VESA Mount Compatible:	Yes
VESA Mount Standard:	100 x 100

Product Information
Device Supported:	Flat Panel Display
Features:	Articulating
	Ergonomic
	Extendable
	Multiple Viewing Angle
	Rotate
	Tilt
Maximum Load Capacity:	19.96 kg
Maximum Screen Size Supported:	61 cm (24")
Minimum Screen Size Supported:	30.5 cm (12")
Number of Displays Supported:	2

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537236

Vendor Part No ARMDUAL

UPC/EAN Number 065030858571
