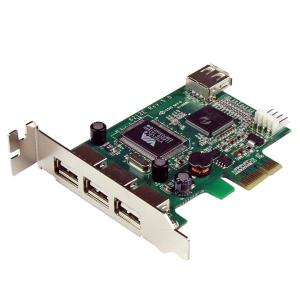

Startech 4 Port PCI Express Low Profile High Speed USB Card PEXUSB4DP

Features

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

PEXUSB4DP

Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

3 external and 1 internal USB 2.0 port
High Speed USB 2.0 compliant, with transfer rates up to 480Mbps
Backward compatible with USB 1.0/1.1 devices

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.

Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.

Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.

The StarTech.com Advantage

Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

Add USB 2.0 connectivity to any PCIe based desktop, workstation or server
Expand on a computers USB 2.0 capabilities with 4 additional ports for more USB device connections
Add an internal USB port to connect internal or front-bay mounted USB devices
Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Low Profile (SP bracket incl.)

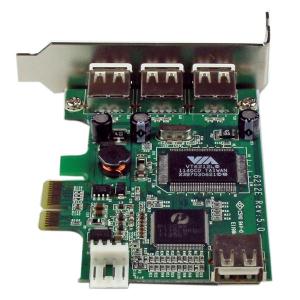

Chipset ID	VIA - VT6212
Industry Standards	PCI Express One Lane 2.5Gb/s
Interface	USB 2.0
Ports	4
Performance
Type and Rate	USB 2.0 - 480 Mbit/s
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male

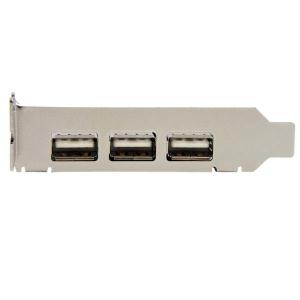

External Ports	3 - USB Type-A (4 pin) USB 2.0 Female
Internal Ports	1 - SP4 (4 pin, Small Drive Power) Male
	1 - USB Type-A (4 pin) USB 2.0 Female
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016 Mac OS X® 10.6 to 10.10 Linux 3.5.x to 4.4.x LTS versions only
Special Notes / Requirements
System and Cable Requirements	PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity	80% RH
Operating Temperature	-0°C to 75°C (32°F to 167°F)
Storage Temperature	-40°C to 125°C (-40°F to 257°F)
Physical Characteristics
Product Height	0.8 in [20 mm]
Product Length	3.5 in [90 mm]
Product Weight	1.6 oz [46 g]
Product Width	3.1 in [80 mm]
Packaging Information
Shipping (Package) Weight	0.4 lb [0.2 kg]
What's in the Box
Included in Package	1 - PCI Express USB 2.0 Card
	1 - Full Profile Bracket
	1 - Driver CD
	1 - Instruction Manual

4 Port PCI Express Low Profile High Speed USB Card

Brand Name: StarTech.com

Form Factor: Plug-in Card

Host Interface: PCI Express

Product Type: USB Adapter

Total Number of USB Ports: 4

Basic
Brand Name:	StarTech.com
Form Factor:	Plug-in Card
Host Interface:	PCI Express
Product Type:	USB Adapter
Total Number of USB Ports:	4

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	PEXUSB4DP
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	4-port PCI Express LP USB Adapter Card
Product Type:	USB Adapter

Interfaces/Ports
Number of USB 2.0 Ports:	4
Total Number of USB Ports:	4

Miscellaneous
Additional Information:	Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification Backed by a StarTech.com 2-year warranty and free lifetime technical support
Environmental Certification:	RoHS
Environmentally Friendly:	Yes
Package Contents:	4-port USB Adapter Card WHQL Certified Drivers Standard Profile Bracket
Platform Supported:	Mac
	PC

Physical Characteristics
Form Factor:	Plug-in Card
Height:	80 mm
Thickness:	20.1 mm
Weight (Approximate):	45.9 g
Width:	89.9 mm

Technical Information
Host Interface:	PCI Express

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537228

Vendor Part No PEXUSB4DP

UPC/EAN Number 065030836661
