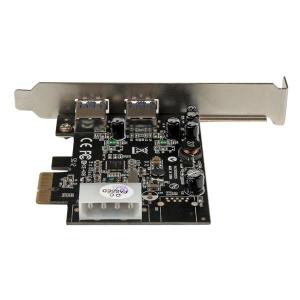

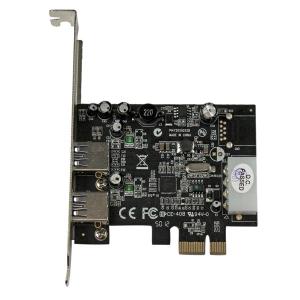

Startech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power PEXUSB3S25

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEXUSB3S25




Add 2 SuperSpeed USB 3.0 ports to your PCI Express-enabled PC


  • Provides two external USB 3.0 ports with UASP support


  • Supports data rates up to 5 Gbps


  • Compliant with PCI Express 2.0 specifications


The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).


Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.


The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Improved Performance with UASP


UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram


At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

UASP Speed Diagram


Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.


The StarTech.com Advantage
  • Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth
  • Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design
  • Power high-powered USB devices as necessary, with the optional LP4 power connector

Applications
  • Upgrade an older PCIe-based system from USB 2.0 to USB 3.0 connectivity
  • Expand the USB capabilities of your system with two additional external ports
  • Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system

Warranty Information

Warranty
2 Years

Hardware

Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Chipset ID
Renesas / NEC - µPD720202

Industry Standards
USB 3.0 Specification Rev. 1.0

USB Battery Charging Specification Rev. 1.2

PCI Express Base Specification Rev. 2.0

Intel xHCI Specification Rev. 1.0

Interface
USB 3.0

Port Style
Integrated on Card

Ports
2

Performance

Maximum Cable Length
9.8 ft [3 m]

Maximum Data Transfer Rate
5 Gbps

Type and Rate
USB 3.0 - 5 Gbit/s

UASP Support
Yes

Connector(s)

Connector Type(s)
1 - PCI Express x1 Male

External Ports
2 - USB Type-A (9 pin) USB 3.0 Female

Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male

Software

OS Compatibility
Windows® Vista, 7, 8, 8.1, 10

Windows Server® 2008 R2, 2012, 2012 R2, 2016

Linux 2.6.31 to 4.4.x LTS versions only

Special Notes / Requirements

Note
Devices that do not comply with the USB Battery Charging Specification may only receive standard USB power.

System and Cable Requirements
Available PCI Express slot

Environmental

Humidity
5~85% RH

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Product Height
4.7 in [120 mm]

Product Length
3.2 in [82 mm]

Product Weight
1.8 oz [51 g]

Product Width
0.7 in [18 mm]

Packaging Information

Shipping (Package) Weight
5.4 oz [153 g]

What's in the Box

Included in Package
1 - PCIe USB 3.0 Card

1 - Low Profile Bracket

1 - SATA to LP4 Cable

1 - Driver CD

1 - Instruction Manual



2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - Dual Port USB 3.0 PCIe Controller - Dual Profile PCI Express 5Gbps USB 3 Adapter


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Product Type: USB Adapter
Total Number of USB Ports: 2


Basic

Brand Name:
StarTech.com

Form Factor:
Plug-in Card

Host Interface:
PCI Express x1

Product Type:
USB Adapter

Total Number of USB Ports:
2
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
PEXUSB3S25

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power

Product Type:
USB Adapter
Interfaces/Ports

Number of USB 3.0 Ports:
2

Total Number of USB Ports:
2
Miscellaneous

Environmental Certification:
RoHS

Environmentally Friendly:
Yes

Package Contents:
  • 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:
PC
Physical Characteristics

Form Factor:
Plug-in Card

Height:
121 mm

Length:
67 mm


Weight (Approximate):

90 g

Width:
19 mm
Technical Information

Host Interface:
PCI Express x1
Warranty

Limited Warranty:
2 Year
