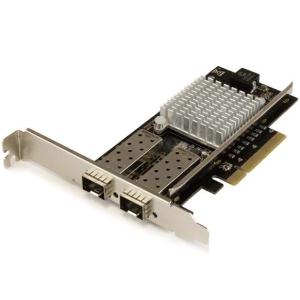

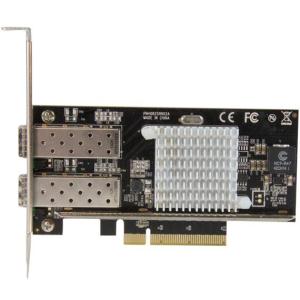

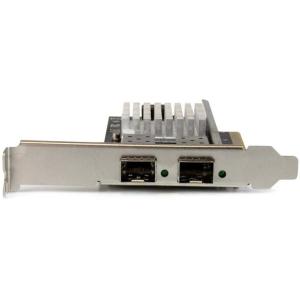

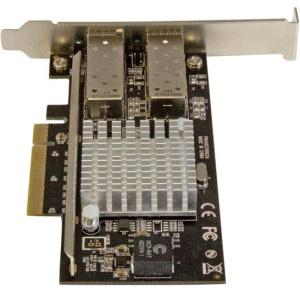

Startech 2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip PEX20000SFPI

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEX20000SFPI




Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation - using the SFP+ transceiver of your choice


  • Add two 10GbE SPF+ slots to server or workstation for fast, high bandwidth connectivity


  • Intel 82599 chipset with Intel® Virtualization Technology for connectivity


  • Up to 20Gbps (full duplex) bandwidth per port


Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.


Transfer files at faster speeds


Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.


Add scalable network connections to your server or workstation


The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.


The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.


Enhance your network capabilities


The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.


The PEX20000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Add 10Gbps network connectivity to file or application servers and high-performance workstations
  • Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
  • Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
  • Create a video / audio editing console with 10Gbps access to network storage
  • Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

Intel 82599

Industry Standards

IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)

PCI Express Rev 2.0, using PCIe x8 (or higher) slot

Interface

Fiber (10 Gigabit Ethernet)

Ports

2

Performance

Compatible Networks

10 Gbps

Full Duplex Support

Yes

Jumbo Frame Support

15K max.

Maximum Data Transfer Rate

20000 Mbps (20 Gbps) - Full-Duplex

Promiscuous Mode

Yes

Supported Protocols

IEEE 802.3ad (Link Aggregation)

IEEE 802.3x (2005 Flow Control Support)

IEEE 802.1Q (VLAN tagging)

Connector(s)

Connector Type(s)

1 - PCI Express x8 Male

Internal Ports

2 - SFP+ Slot Female

Software

OS Compatibility

Windows® 7, 8, 8.1, 10

Windows Server® 2008 R2, 2012, 2012 R2, 2016

Linux 2.6.24 to 4.4.x LTS Versions only

Environmental

Humidity

20% ~ 80% RH

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color

Black

Product Height

4.7 in [120 mm]

Product Length

5.3 in [135 mm]

Product Weight

3.6 oz [102 g]

Product Width

0.7 in [18 mm]

Packaging Information

Shipping (Package) Weight

6.3 oz [178 g]

What's in the Box

Included in Package

1 - PCIe 10GBase Fiber Card

1 - Low-profile bracket

1 - Quick install guide



2-Port 10G Fiber Network Card with Open SFP+ - PCIe Intel Chip - Dual-port 10G NIC - Fiber Ethernet Adapter - Cost-effective Fiber Network Card - PXE Network Boot Support


Brand Name: StarTech.com
Device Supported: Workstation
Expansion Slot Type: SFP+
Form Factor: Plug-in Card
Host Interface: PCI Express x4
Network Technology: 10GBase-X
Product Type: 10Gigabit Ethernet Card
Total Number of Ports: 2


Basic

Brand Name:

StarTech.com

Device Supported:

Workstation

Expansion Slot Type:

SFP+

Form Factor:

Plug-in Card

Host Interface:

PCI Express x4

Network Technology:

10GBase-X

Product Type:

10Gigabit Ethernet Card

Total Number of Ports:

2
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEX20000SFPI

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip

Product Type:

10Gigabit Ethernet Card
I/O Expansions

Expansion Slot Type:

SFP+
Interfaces/Ports

Host Interface:

PCI Express x4

Total Number of Ports:

2
Media & Performance

Media Type Supported:

Optical Fiber
Miscellaneous

Device Supported:

Workstation
Network & Communication

Network Technology:

10GBase-X
Physical Characteristics

Depth:

134.6 mm

Form Factor:

Plug-in Card

Height:

17.8 mm


Weight (Approximate):

102.1 g

Width:

119.4 mm
