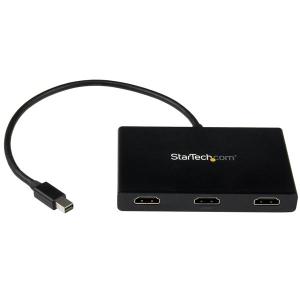

Startech Mini DisplayPort to HDMI Multi-Monitor Splitter - 3-Port MST Hub MSTMDP123HD

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

MSTMDP123HD




Use this adapter to connect three independent displays to a single mDP 1.2 port


  • Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub


  • Connect your Mini DisplayPort computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters


  • Increase external video performance with support for resolutions up to 4K


This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.


Increase your productivity with multiple monitors


The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Increase Productivity with multiple screens


Astonishing picture quality that won’t drain your system resources


MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Extend Your Performance





The MSTMDP123HD  is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Add more displays to your Surface Pro 3
  • Use one screen for reference data such as websites, while composing in another screen
  • Dock your mDP 1.2 device and add three high-resolution displays to your workstation
  • Create a panoramic video wall for DisplayPort digital signage applications
  • Edit images, video or audio clips across three displays in any orientation or resolution
  • Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
  • Enjoy the panoramic views built into games and display helpful codes/walkthrough data on a third display, at the same time

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

Chipset ID

STDP4320

Converter Type

MST Hub

Output Signal

HDMI

Ports

3

Performance

Maximum Digital Resolutions

3840 x 2160 @30hz

Supported Resolutions

1024x768

1280x720 (High-definition 720p)

1920x1080 (High-definition 1080p)

1920x1200

2560x1440

2560x1600

3840 x 2160 (Ultra HD 4K) @30hz

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - Mini-DisplayPort (20 pin) Male Output

Connector B

3 - HDMI (19 pin) Female Output

Software

OS Compatibility

Windows 10 (32/64)

Windows 8/8.1 (32/64)

Windows 7(32/64)

Power

Center Tip Polarity

Positive

Input Current

0.5 A

Input Voltage

110V-240V AC

Output Current

3A

Output Voltage

5 DC

Plug Type

N

Power Consumption (In Watts)

15

Power Source

AC Adapter Included

Environmental

Humidity

50-90%

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Physical Characteristics

Color

Black

Enclosure Type

Plastic

Product Height

0.6 in [14 mm]

Product Length

4.5 in [114 mm]

Product Weight

4.2 oz [119 g]

Product Width

2.6 in [66 mm]

Packaging Information

Shipping (Package) Weight

18.3 oz [519 g]

What's in the Box

Included in Package

1 - Mini DisplayPort to 3x HDMI MST Hub

1 - Universal power adapter (NA/EU/UK/AU)

1 - Quick install guide



Mini DisplayPort to Triple Head HDMI Multi Monitor MST Hub - DisplayPort 1.2 Multi Stream Video Output Hub - 1x mDP (M) to 3x HDMI (F) - DisplayPort Multiplicator


Brand Name: StarTech.com
Number of DisplayPort Inputs: 1
Number of HDMI Outputs: 3
Product Type: Signal Splitter


Basic

Brand Name:

StarTech.com

Number of DisplayPort Inputs:

1

Number of HDMI Outputs:

3

Product Type:

Signal Splitter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

MSTMDP123HD

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

MST Hub - Mini DisplayPort to 3x HDMI

Product Type:

Signal Splitter
Interfaces/Ports

DisplayPort:

Yes

HDMI Out:

Yes

Number of DisplayPort Inputs:

1

Number of HDMI Outputs:

3
Miscellaneous

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:

Yes
Physical Characteristics

Colour:

Black

Height:

15.2 mm

Length:

114.3 mm

Material:

Plastic


Weight (Approximate):

119 g

Width:

66 mm
Power Description

Input Voltage:

5 V DC
Video

Maximum Video Resolution:

3840 × 2160
