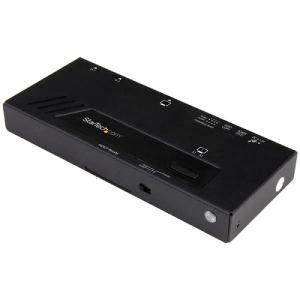

Startech 2-Port HDMI Automatic Video Switch - 4K with Fast Switching VS221HD4KA

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

VS221HD4KA




Switch between two HDMI sources on a single HDMI display, with 4K video resolution and fast switching for minimal disruption


  • Impressive image quality with support for Ultra HD 4K


  • 2-port 4K2K switch routes two HDMI sources to one HDMI display


  • Easy operation with automatic, priority or manual switching between HDMI sources


Create a powerful visual experience, with the ability to switch between two 4K video sources seamlessly. This 2-port HDMI® switch lets you share a monitor, projector or TV with two different HDMI enabled video sources, and switch between them with minimal disruption.


Impressive image quality with 4K support


The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI source devices - including Blu-ray™ players or DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers.


4K support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It provides a more engaging visual experience for audiences in a wide range of venues including conference centers and boardrooms, home theaters, and commercial settings. With its exceptional resolution and image quality, it's also ideal for bringing your digital signage to life.


Fast and easy operation


Enjoy hassle-free operation with three switching modes:

  • Fast auto-switching: ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing - it detects the latest connected HDMI source and automatically switches to it. Auto-switching encourages collaboration among colleagues, by making it easy to share your projector. It also ensures no downtime in a digital signage application if a source signal is accidentally powered off or fails.

  • Priority switching: identifies one port to take first priority for HDMI sources when multiple sources are connected, ideal for applications such as digital signage.

  • Manual switching: enables you to manually select your HDMI source with front-panel buttons that are easy to use.


An IR remote control is included in the box, enabling you to select your desired input source remotely. The RS-232 serial control interface ensures easy remote operation with serial control enabled devices.


Hassle-free setup with plug-and-play installation


The switch also saves time during setup with EDID emulation, which ensures that all of your display settings, such as native resolution and refresh rate, are communicated between your display and video source devices. EDID emulation maximizes compatibility with your 4K display to ensure a convenient plug-and-play installation and the sharpest image quality.


The VS221HD4KA is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Share a 4K television or projector with two different 4K video sources to create a powerful visual experience in boardrooms, classrooms, home theaters, hotels, shopping malls, health centers and many other environments
  • Collaborate easily with colleagues by connecting multiple users to the same display, and switch between input devices
  • Enhance your home theater by connecting two A/V devices to your television, such as Blu-ray players, cable and satellite set-top boxes, and computers
  • Ideal in digital signage applications - the switch is backward compatible with high-definition 1080p, so any video source will look great in your digital signage

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

Chipset ID

Microchip PIC24

Industry Standards

HDMI 1.4

Output Signal

HDMI

Ports

2

Performance

Audio Specifications

7.1 Surround sound

Maximum Digital Resolutions

4K @ 30 Hz

Supported Resolutions

3840x2160 (4K)

2560x1600

1920x1200

1920x1080 (1080p)

1280x720 (720p)

Wide Screen Supported

Yes

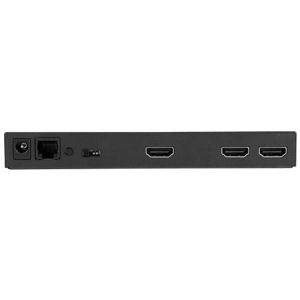

Connector(s)

Connector A

1 - HDMI (19 pin) Female

Connector B

2 - HDMI (19 pin) Female

1 - RJ-11 Female

Indicators

LED Indicators

2 - Active port LED

1 - Power LED

Power

Input Voltage

110V-240V AC

Output Current

1.5

Output Voltage

12 DC

Power Consumption (In Watts)

18

Power Source

AC Adapter Included

Environmental

Humidity

0% ~ 80%

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Physical Characteristics

Product Height

0.6 in [14 mm]

Product Length

3.9 in [100 mm]

Product Weight

6.3 oz [179 g]

Product Width

2.4 in [61.5 mm]

Packaging Information

Shipping (Package) Weight

29.7 oz [841 g]

What's in the Box

Included in Package

1 - 2-port HDMI switch

1 - remote control

1 - universal power adapter (NA/EU/UK/AU)

1 - RJ11 cable

1 - RJ11 to DB-9 serial adapter

1 - mounting kit

1 - quick start guide



2-Port HDMI Automatic Video Switch - 4K 2x1 HDMI Switch with Fast Switching Auto-Sensing & Serial Control - UltraHD HDMI Switch - 4K HDMISwitch w/ Fast Auto & Priority Switching


Brand Name: StarTech.com
Connectivity Technology: Cable
Device Supported: A/V Receiver
Device Supported: Blu-ray Disc Player
Device Supported: Computer
Device Supported: DVD Player
Device Supported: Display
Device Supported: Gaming Console
Device Supported: Projector
Device Supported: Set-top Box
HDMI In: Yes
HDMI Out: Yes
Number of Displays Supported: 1
Number of HDMI Inputs: 2
Number of Input Devices Supported: 2
Product Type: Audio/Video Switchbox


Basic

Brand Name:

StarTech.com

Connectivity Technology:

Cable

Device Supported:

A/V Receiver

Blu-ray Disc Player

Computer

DVD Player

Display

Gaming Console

Projector

Set-top Box

HDMI In:

Yes

HDMI Out:

Yes

Number of Displays Supported:

1

Number of HDMI Inputs:

2

Number of Input Devices Supported:

2

Product Type:

Audio/Video Switchbox
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

VS221HD4KA

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

2-Port HDMI Automatic Video Switch - 4K with Fast Switching

Product Type:

Audio/Video Switchbox
Interfaces/Ports

HDMI In:

Yes

HDMI Out:

Yes

Number of HDMI Inputs:

2

Number of HDMI Outputs:

1
Technical Information

Connectivity Technology:

Cable

Device Supported:

A/V Receiver

Blu-ray Disc Player

Computer

DVD Player

Display

Gaming Console

Projector

Set-top Box

Number of Displays Supported:

1

Number of Input Devices Supported:

2
Video

Graphics Modes:

4K

Maximum Video Resolution:

3840 × 2160
