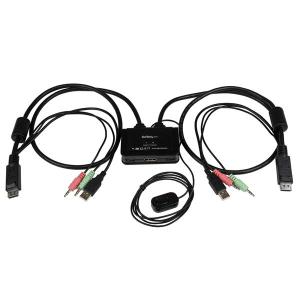

Startech 2 Port USB DisplayPort Cable KVM Switch w/ Audio and Remote Switch - USB Powered SV211DPUA

Features

sv211dpua displayport switch supported audio

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

SV211DPUA

Control two DisplayPort®, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set

Supports resolutions up to 2560x1600
Switch PCs via push-button, hot-keys or switching software
Space-saving design, minimal footprint

The SV211DPUA 2-Port DisplayPort® Cable KVM Switch with Audio and Remote Switching Control lets you control two DisplayPort, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set.

To help organize your desk without sacrificing work space, this compact DisplayPort USB KVM features integrated cables that can be connected directly to your system, while leaving a minimal footprint. The switch features a remote push-button on a 1.5 meter (5ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems. To eliminate the need for a bulky external power adapter and wall outlet, the DisplayPort KVM switch is USB-powered.

This KVM with DisplayPort video capability offers support for resolutions up to 2560x1600 for the ability to drive a large DisplayPort display for applications that require high graphical output.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Avoid cabling hassles with integrated KVM and remote switch cables
Save desk space with a compact design
Switch between systems easily using the included remote switch

Applications

Great for PC test/burn-in computer control, saving the desk space required for two monitors, keyboards and mice
Perfect for sharing computers and attached peripherals in the home or home office
Dual system control for single user workstations increasing user productivity in the office

Warranty Information
Warranty	2 Years
Hardware
Audio	Yes
Cables Included	Yes
Daisy-Chain	No
KVM Ports	2
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	DisplayPort
Rack-Mountable	No
Performance
Audio Specifications	Analog (3.5mm) and DisplayPort audio supported
Hot-Key Selection	Yes
IP Control	No
On-Screen Display	No
Port Selection Support	Push Button, Hotkeys, and Software
Connector(s)
Console Interface(s)	1 - DisplayPort (20 pin) Female
	2 - 3.5 mm Mini-Jack (3 Position)
	2 - USB Type-A (4 pin) USB 2.0
Host Connectors	1 - DisplayPort (20 pin) Latching Male
	1 - USB Type-A (4 pin) USB 2.0 Male
	2 - 3.5 mm Mini-Jack (3 Position) Male
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016 Mac OS 10.x (Tested up to 10.9), 9.x
Special Notes / Requirements
Note	OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform
Indicators
LED Indicators	1 - PC Selection indictor
Power
Power Source	USB-Powered
Environmental
Humidity	0~90% RH Non-Condensing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (4°F to 140°F)
Physical Characteristics
Cable Length	33.5 in [850 mm]
Color	Black
Enclosure Type	Plastic
Product Height	0.9 in [23 mm]
Product Length	3.5 in [88 mm]
Product Weight	14.1 oz [400 g]
Product Width	2.6 in [66 mm]
Packaging Information
Shipping (Package) Weight	19.4 oz [550 g]
What's in the Box
Included in Package	1 - KVM Switch
	1 - Software CD
	1 - Instruction Manual

2 Port USB DisplayPort Cable KVM Switch with Audio and Remote Switch - USB Powered KVM with DisplayPort - Dual Port DisplayPort KVM Switch - Two Port DP KVM Switch

Brand Name: StarTech.com

Number of Computers Supported: 2

Number of Local Users Supported: 1

Product Type: KVM Switchbox

USB: Yes

Basic
Brand Name:	StarTech.com
Number of Computers Supported:	2
Number of Local Users Supported:	1
Product Type:	KVM Switchbox
USB:	Yes

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	SV211DPUA
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	2 Port USB DisplayPort Cable KVM Switch w/ Audio and Remote Switch - USB Powered
Product Type:	KVM Switchbox

Interfaces/Ports
DisplayPort:	Yes
Headphone:	Yes
Microphone:	Yes
Number of USB Ports:	3
USB:	Yes

Miscellaneous
Platform Supported:	Mac
	PC

Physical Characteristics
Colour:	Black
Depth:	61 mm
Height:	88.9 mm
Weight (Approximate):	399.7 g
Width:	25.4 mm

Technical Information
Daisy Chain Supported:	No
Number of Computers Supported:	2
Number of Local Users Supported:	1

Video
Graphic Mode:	WQXGA
Maximum Video Resolution:	2560 x 1600

Information

SKU/Item No 537189

Vendor Part No SV211DPUA

UPC/EAN Number 065030851282
