Startech 4 Port Professional VGA USB KVM Switch with Hub SV431USB

Features

sv431usb switch startech computers number

Click to view full size

Click to view full size

type rack-mountable warranty information ports

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

SV431USB

Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

Supports hot-plug and disconnect – computers can be added or removed without the need to reboot other connected systems
Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets

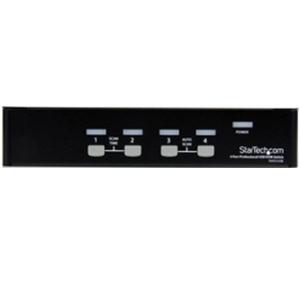

Front panel push-buttons for quick and easy switching

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

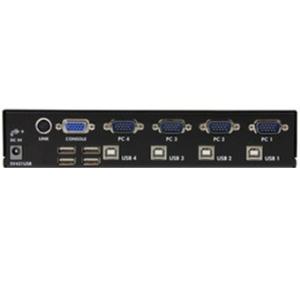

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
Rugged, solid steel rack-mountable case offers durability even in harsh environments
Absolutely no software or drivers required providing a completely OS independent KVM solution

Applications

Sharing computers and USB devices in the home/SOHO/multimedia environment
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice
Dual system control for single user workstations increasing user productivity in the office

Warranty Information
Warranty	3 Years
Hardware
Audio	No
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Optional
U Height	1U
Performance
Auto Scan	3, 8, 15 & 30 seconds
DVI Support	No
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Cable Length	16.4 ft [5 m]
Maximum Number of Users	1
MTBF	82,506 Hours
On-Screen Display	No
Port Selection Support	Push Button
Connector(s)
Console Interface(s)	1 - VGA (15 pin, High Density D-Sub) Female
	4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors	4 - USB B (4 pin) Female
	4 - VGA (15 pin, High Density D-Sub) Male
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
Note	In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required
Power
Center Tip Polarity	Positive
Input Current	0.4A
Input Voltage	110V-240V AC
Output Current	2A
Output Voltage	5 DC
Plug Type	N
Power Source	Not Included (not required for standard applications)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Height	1.7 in [44 mm]
Product Length	8.7 in [220 mm]
Product Weight	31.8 oz [900 g]
Product Width	5.1 in [130 mm]
Packaging Information
Shipping (Package) Weight	3 lb [1.3 kg]
What's in the Box
Included in Package	1 - 4 Port VGA USB KVM Switch
	4 - Rubber Feet
	1 - Instruction Manual

4 Port Professional VGA USB KVM Switch with Hub

Brand Name: StarTech.com

Number of Computers Supported: 4

Number of Local Users Supported: 1

Product Type: KVM Switchbox

USB: Yes

VGA: Yes

Basic
Brand Name:	StarTech.com
Number of Computers Supported:	4
Number of Local Users Supported:	1
Product Type:	KVM Switchbox
USB:	Yes
VGA:	Yes

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	SV431USB
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Name:	4 Port Professional VGA USB KVM Switch with Hub
Product Type:	KVM Switchbox

Interfaces/Ports
Number of USB Ports:	8
Number of VGA Ports:	5
USB:	Yes
VGA:	Yes

Miscellaneous
Additional Information:	Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices. Rugged, solid steel rack-mountable case offers durability even in harsh environments. Absolutely no software or drivers required providing a completely OS independent KVM solution.
Platform Supported:	Mac
	PC

Physical Characteristics
Colour:	Black
Depth:	220 mm
Form Factor:	Rack-mountable
Height:	43.9 mm
Rack Height:	1U
Weight (Approximate):	900 g
Width:	130 mm

Technical Information
Minimum Scan Interval:	3 Second
Number of Computers Supported:	4
Number of Local Users Supported:	1

Video
Maximum Video Resolution:	1920 x 1440

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537181

Vendor Part No SV431USB

UPC/EAN Number 065030787192
