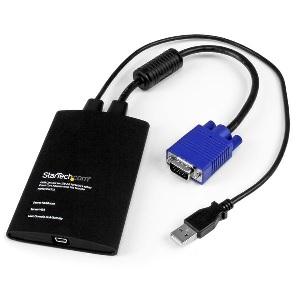

Startech KVM Console to Laptop USB 2.0 Portable Crash Cart Adapter with File Transfer & Video Capture NOTECONS02

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

NOTECONS02

Turn any laptop into a portable console for rack servers, PCs, ATMs, kiosks and more

Compact footprint with integrated KVM cables
Supports file sharing & video capture between your laptop and the connected server
Supports resolutions up to 1920x1200

The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now with local file transfer and video capture built into the software. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server for instant, BIOS-level control.

USB Crash Cart Adapter

Connect Quickly

Get connected in seconds. The crash cart adapter offers integrated VGA and USB cables for the server-side connections and includes the USB cable to connect to your laptop.

Troubleshoot your devices faster with a flexible software interface that lets you transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars - ever.

Connect Universally

With no server-side software installation required, the USB crash cart adapter can connect to any PC or device that has a VGA and USB port, to provide BIOS-level control.

Powered from the server-side USB connection, the laptop crash cart adapter doesn't require an AC outlet and saves your laptop / netbook battery power.

Connect Portably

With portability for the mobile administrator or repair technician in mind, this pocket-sized adapter features a rugged design that easily fits inside your laptop bag and requires no additional accessories to connect.

Eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems, this portable crash cart lets you connect to a headless device with only a laptop.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Perfect for mobile systems administrators traveling to multiple server rooms
Eliminate the need for a bulky crash cart in your server room
Use for console access to full server racks, or where a rack console is not feasible
Maintain headless servers
ATM and VLT maintenance and repair

Warranty Information
Warranty	2 Years
Hardware
Audio	No
Cables Included	Yes
Daisy-Chain	No
KVM Ports	1
Number of Monitors Supported	1
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	No
Performance
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920x1200 @ 60Hz
Maximum Number of Users	1
MTBF	909000
On-Screen Display	No
Connector(s)
Console Interface(s)	1 - USB Mini-B (5 pin) Female Input
Host Connectors	1 - USB Type-A (4 pin) USB 2.0 Male
	1 - VGA (15 pin, High Density D-Sub) Male
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.9 to 10.12 Linux 2.6 to 4.4 LTS versions only
Indicators
LED Indicators	1 - Host/Server Keyboard/Mouse USB Link
	1 - Host/Server Video (VGA) Link
	1 - User Console/USB Link
Power
Power Source	USB-Powered
Environmental
Humidity	80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Physical Characteristics
Cable Length	16.4 in [416 mm]
	1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
Color	Black
Enclosure Type	Plastic
Product Depth	4.5 in [115 mm]
Product Height	0.6 in [15 mm]
Product Weight	6 oz [170 g]
Product Width	2.9 in [74 mm]
Packaging Information
Shipping (Package) Weight	12.8 oz [363 g]
What's in the Box
Included in Package	1 - USB Crash Cart Adpater
	1 - USB A to Mini-B Cable
	1 - USB Software Key

KVM Console to Laptop USB 2.0 Portable Crash Cart Adapter with File Transfer - Portable KVM Console - USB Crash Cart - VGA Laptop KVM Console Adapter

Brand Name: StarTech.com

Connectivity Technology: Wired

Number of Computers Supported: 1

Number of Local Users Supported: 1

Product Type: KVM Console

USB: Yes

VGA: Yes

Basic
Brand Name:	StarTech.com
Connectivity Technology:	Wired
Number of Computers Supported:	1
Number of Local Users Supported:	1
Product Type:	KVM Console
USB:	Yes
VGA:	Yes

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	NOTECONS02
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	USB Crash Cart Adpater
Product Type:	KVM Console

Interfaces/Ports
Number of USB Ports:	1
USB:	Yes
VGA:	Yes

Miscellaneous
Certifications & Standards:	CE FCC
Environmental Certification:	RoHS
Environmentally Friendly:	Yes
Package Contents:	USB Crash Cart Adpater 1 x USB A to Mini-B Cable 1 x USB Software Key
Platform Supported:	Linux
	Mac
	PC

Physical Characteristics
Colour:	Black
Form Factor:	Portable
Receiver Depth:	114.30 mm
Receiver Height:	15.24 mm
Receiver Weight (Approximate):	170 g
Receiver Width:	73.66 mm

Technical Information
Connectivity Technology:	Wired
Number of Computers Supported:	1
Number of Local Users Supported:	1

Video
Graphic Mode:	WUXGA
Maximum Video Resolution:	1920 x 1200

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537179

Vendor Part No NOTECONS02

UPC/EAN Number 065030854382
