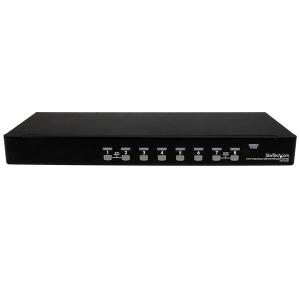

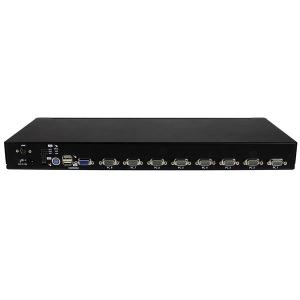

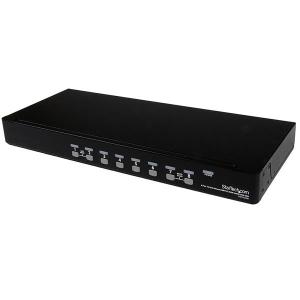

Startech 8 Port 1U Rackmount USB PS/2 KVM Switch with OSD SV831DUSB

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SV831DUSB




Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor


  • Connect USB and PS/2 based computer systems


  • OS independent – No software or drivers required


  • Auto-scan function cycles through computers sequentially


The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.


The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.


A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.


This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Cascade configuration adds scalability and offers support for control of up to 56 computers
  • Rugged, solid steel rack-mountable case offers durability even in harsh environments
  • Absolutely no software or drivers required providing a completely OS independent KVM solution

Applications
  • Add single console administration to your Co-location/ISP facility saving you time and money
  • Create a scalable, streamlined access solution in your Datacenter or Server Farm
  • Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
  • Perfect for manufacturing line computer control, simplifying access to multiple systems

Warranty Information

Warranty
3 Years

Hardware

Audio
No

Cables Included
No

Daisy-Chain
Yes

KVM Ports
8

Number of Monitors Supported
1

PC Interface
USB and PS/2

PC Video Type
VGA

Rack-Mountable
Yes

Performance

DVI Support
No

Hot-Key Selection
Yes

IP Control
No

Maximum Analog Resolutions
1920 x 1440 @60hz

Maximum Cascaded Computers
64

Maximum Number of Users
1

On-Screen Display
No

Port Selection Support
Push Button and Hotkeys

Software

OS Compatibility
OS independent; No software or drivers required

Power

Center Tip Polarity
Positive

Input Current
0.2A

Input Voltage
110V-240V AC

Output Current
0.6A

Output Voltage
9 DC

Plug Type
M

Power Consumption (In Watts)
5.4

Power Source
AC Adapter Included

Environmental

Operating Temperature
5°C to 40°C (41°F to 104°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color
Black

Enclosure Type
Steel

Product Height
1.8 in [45 mm]

Product Length
17.2 in [438 mm]

Product Weight
102.4 oz [2900 g]

Product Width
7.1 in [180 mm]

Packaging Information

Shipping (Package) Weight
7.6 lb [3.5 kg]

What's in the Box

Included in Package
1 - 8-port KVM switch

2 - mounting brackets

1 - PS/2 keyboard and mouse Y cable

1 - universal power adapter (NA/EU/UK)

4 - foot pads

1 - instruction manual



8 PORT 1U RACKMOUNT USB PS/2 KVM SWITCH WITH OSD


Brand Name: StarTech.com
Number of Computers Supported: 8
PS/2 Port: Yes
Product Family: StarView
Product Type: KVM Switchbox


Basic

Brand Name:
StarTech.com

Number of Computers Supported:
8

PS/2 Port:
Yes

Product Family:
StarView

Product Type:
KVM Switchbox
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
SV831DUSB

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
4

Product Line:
StarView

Product Name:
StarView USB Console KVM Switch with OSD

Product Type:
KVM Switchbox
Interfaces/Ports

PS/2 Port:
Yes
Physical Characteristics

Depth:
437.9 mm

Form Factor:
Rack-mountable

Height:
45 mm

Rack Height:
1U


Weight (Approximate):

2.90 kg

Width:
180.1 mm
Technical Information

Daisy Chain Supported:
Yes

Number of Computers Supported:
8
Video

Maximum Video Resolution:
1920 x 1440
