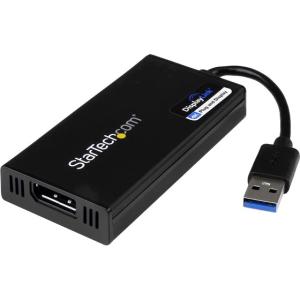

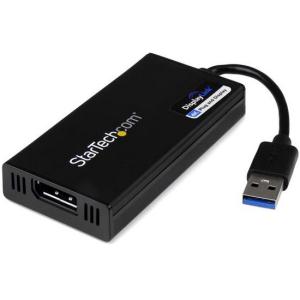

Startech USB 3.0 to 4K DisplayPort External Multi Monitor Video Graphics Adapter - DisplayLink Certified - Ultra HD 4K USB32DP4K

Features
usb32dp4k displayport video ultra adapter
Click to view full size
displaylink chipset monitor product computer
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB32DP4K




Connect an additional DisplayPort monitor to your PC with USB 3.0 technology capable of playback at 4K


  • Add Ultra HD 4K video support to your computer system through an available USB 3.0 port


  • Astonishing picture quality with support for resolutions up to 4K


  • DisplayLink 4K Plug-and-Display certified - automatic driver installation and updates


Want to add 4K Ultra HD video to your computer system? Now, you can enjoy the picture quality of Ultra HD video, even if your system doesn't natively support 4K video output. With an additional 4K monitor connected to your computer, you can extend or mirror your desktop for increased productivity. DisplayLink 4K Plug-and-Display certification ensures automatic driver installation, so you'll be ready to enjoy your Ultra HD display in no time.





Ultra HD Multi-tasking


Now you can connect a 4K HDTV, monitor or projector to your computer, even if your laptop or desktop video card doesn’t natively support 4K output. The USB32DP4K USB to DisplayPort 4K adapter lets you extend or mirror your primary display onto an Ultra HD monitor or television, giving you the additional screen space you need to simplify multi-tasking and maximize your productivity.

Add the video power of 4K to your Laptop or Ultrabook





Astonishing Picture Quality


At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K monitor or television; the USB32DP4K lets you harness the impressive bandwidth capability of a USB 3.0 connection to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.

Substantially increase the video capabilities of your computer system





DisplayPort & DisplayLink 4K Plug-and-Display Certified


Installation has never been easier. When you connect this DisplayLink 4K Plug-and-Display certified adapter to a web-enabled Windows® 7, Windows® 8 or Windows® 10 computer, it automatically downloads and installs the most up-to-date drivers for you, so you won’t have to.

Get up and running faster with automatic software and driver installation





The USB32DP4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Connect a 4K television, monitor or projector to your computer system
  • View large or multiple spreadsheets across multiple displays
  • Increase productivity by running multiple applications on different displays; check your email on one display while editing a document on the other

Warranty Information

Warranty
2 Years

Hardware

Audio
Yes

Chipset ID
DisplayLink - DL5500

Memory
DDR 1Gb

Output Signal
DisplayPort

Ports
1

USB Pass-Through
No

Performance

Audio Specifications
2-channel stereo

General Specifications
This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset.

Maximum Digital Resolutions
4K x 2K @ 30Hz

Supported Resolutions

Widescreen(16/32 Bit):


3840×2160, 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720



Standard(16/32 Bit):


1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - USB Type-A (9 pin) USB 3.0 Male

Connector B
1 - DisplayPort (20 pin) Female

Software

OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10

MacOS® 10.6 to 10.12

Ubuntu 14.04, 16.04

Chrome OS v55+

Power

Power Source
USB-Powered

Environmental

Humidity

Operating Temperature
10°C to 40°C (50°F to 104°F)

Storage Temperature
-10°C to 80°C (14°F to 167°F)

Physical Characteristics

Cable Length
2.5 in [63.5 mm]

Color
Black

Enclosure Type
Plastic

Product Height
0.6 in [15 mm]

Product Length
3.5 in [90 mm]

Product Weight
2.3 oz [64 g]

Product Width
1.8 in [45 mm]

Packaging Information

Shipping (Package) Weight
0.5 lb [0.2 kg]

What's in the Box

Included in Package
1 - USB 3.0 to DisplayPort Video Card

1 - Software Installation Disc

1 - Instruction Manual



USB 3.0 to 4K DisplayPort External Multi Monitor Video Graphics Adapter - DisplayLink Certified - USB 3.0 External Video Card - USB 4K DisplayPort Video Card - Ultra HD 4K


Brand Name: StarTech.com
Chipset Manufacturer: DisplayLink
Chipset Model: DL5500
DisplayPort: Yes
Form Factor: External
Host Interface: USB 3.0
Maximum Resolution: 3840 x 2160
Product Type: Graphic Adapter


Basic

Brand Name:
StarTech.com

Chipset Manufacturer:
DisplayLink

Chipset Model:
DL5500

DisplayPort:
Yes

Form Factor:
External

Host Interface:
USB 3.0

Maximum Resolution:
3840 x 2160

Product Type:
Graphic Adapter
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB32DP4K

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
USB 3.0 to DisplayPort Video Card

Product Type:
Graphic Adapter
Interfaces/Ports

DisplayPort:
Yes

Host Interface:
USB 3.0

Number of DisplayPort Outputs:
1
Miscellaneous

Environmentally Friendly:
Yes

Platform Supported:
PC

System Requirements:

OS Compatibility:

  • Windows® 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000 (Aero 3D interface supported)
  • Apple® OSX Yosemite (10.10), Mavericks (10.9) Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6)
Physical Characteristics

Form Factor:
External

Height:
15.2 mm

Length:
91.4 mm


Weight (Approximate):

300.5 g

Width:
45.7 mm
Processor & Chipset

Chipset Manufacturer:
DisplayLink

Chipset Model:
DL5500
Technical Information

Maximum Resolution:
3840 x 2160
