Startech 4 Port USB to RS232 Serial DB9 Adapter Hub ICUSB2324

Features

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ICUSB2324

Add four RS232 serial ports to any notebook or desktop computer using a single USB port

Bus powered, no external power adapter required
Easy Plug-and-Play installation
Fully compliant with USB 1.1 specifications and compatible with USB 2.0
Provides you with four additional Straight-Through RS232 serial ports

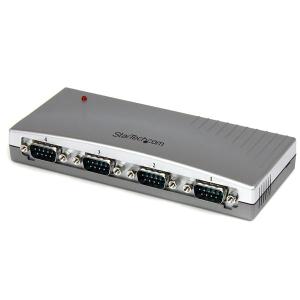

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.

The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.

A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage

Add four additional RS-232 serial ports to any computer with a free USB port
Provides serial connectivity to legacy free systems lacking RS-232 serial ports
Supports wakeup and power management modes

Applications

Connect modems, digitizer tablets, mice, bar code scanners, GPS receivers, ISDN terminal adapters, mobile phones, scanners, UPSes and POS equipment to your system
Connect and program LED and Digital signage boards with serial communication ports

Warranty Information
Warranty	Lifetime
Hardware
Bus Type	USB 2.0
Chipset ID	FTDI - FT232RL
Industry Standards	RS232
	USB 1.1
Interface	Serial
Port Style	External Hub
Ports	4
Performance
FIFO	256 Bytes
Max Baud Rate	921.6 Kbps
Serial Protocol	RS-232
Connector(s)
Connector Type(s)	1 - USB Type-A (4 pin) USB 2.0 Male
External Ports	4 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility	Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements	One free USB port
Power
Power Consumption (In Watts)	1 ~ 1.5W
Environmental
Humidity	5~95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20 to 85°C (-4 to 185°F)
Physical Characteristics
Cable Length	6 ft [1.8 m]
Enclosure Type	Plastic
Product Height	1 in [26 mm]
Product Length	5.9 in [150 mm]
Product Weight	3.9 oz [110 g]
Product Width	2.6 in [66.5 mm]
Packaging Information
Shipping (Package) Weight	0.8 lb [0.4 kg]
What's in the Box
Included in Package	1 - 4 Port Serial Hub
	1 - USB Cable
	1 - Driver CD
	1 - Instruction Manual

4 Port USB to RS232 Serial DB9 Adapter Hub

Brand Name: StarTech.com

Form Factor: External

Host Interface: USB

Product Type: Serial Hub

Basic
Brand Name:	StarTech.com
Form Factor:	External
Host Interface:	USB
Product Type:	Serial Hub

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ICUSB232_4
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Model:	ICUSB232_4
Product Name:	4 Port Usb to RS-232 Serial DB9 Adapter
Product Type:	Serial Hub

Interfaces/Ports
Number of USB Ports:	1

Physical Characteristics
Form Factor:	External

Technical Information
Data Transfer Rate:	Up to 115 kbit/s
Host Interface:	USB
Platform Supported:	Mac
	PC

Warranty
Limited Warranty:	Lifetime

Information

SKU/Item No 537163

Vendor Part No ICUSB2324

UPC/EAN Number 065030825177
