Startech 5m Cisco Compatible SFP+ 10-Gigabit Ethernet (10GbE) Passive Twinax Direct Attach Cable SFPCMM5M

Features
sfpcmm5m cable 10gbase-cu copper meter
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

SFPCMM5M




Connect 10GbE SFP+ network devices with this high-quality replacement SFP-H10GB-CU5M cable


  • Compatible with Cisco equipment


  • Compliant with SFP+ MSA Multi-Source Agreement standards


  • Support for 1x, 2x, 4x and 8x Fiber Channel data rates

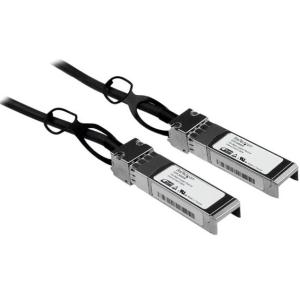

The SFPCMM5M Cisco Compatible 5m SFP+ cable is a fully hot pluggable, direct attach cable, supporting 10 Gigabit Ethernet and Fiber Channel applications connected through (Small Form Factor Pluggable) SFP+ ports.


Designed for short length, high speed interconnects, this low power, low latency Twinax cable is a cost-effective alternative to fiber optic cable assemblies and is intended for short distance applications such as point-to-point in-rack and across rack network switch/server connections.


Backed by our 2-year warranty, this 10GBASE-CU SFP+ Cable is compliant with MSA (Multi-Source Agreement) standards, making it a reliable replacement SFP-H10GB-CU5M cable.


The StarTech.com Advantage
  • Cost-effective alternative to fiber optic modules
  • Thicker gauge cable maintains signal integrity even over a 5m connection
  • Guaranteed reliability

Applications
  • Use in 10Gb Ethernet and Fiber Channel applications
  • Point-to-point in-rack and across rack network switch/server connections (Storage Area Networks (SAN), Network Attached Storage (NAS), Storage Servers, etc.)

Warranty Information

Warranty
2 Years

Hardware

Cable Jacket Type
PVC - Polyvinyl Chloride

Performance

Impedance
100 Ohm

Connector(s)

Connector A
1 - SFP+ Latching Plug

Connector B
1 - SFP+ Latching Plug

Environmental

Operating Temperature
0&degC to 70&degC

Storage Temperature
-40&degC to 80&degC

Physical Characteristics

Cable Length
16.4 ft [5 m]

Product Height
0.5 in [12 mm]

Product Length
16.4 ft [5 m]

Product Weight
11.2 oz [316 g]

Product Width
0.6 in [14 mm]

Wire Gauge
24 AWG

Packaging Information

Package Quantity
1

Shipping (Package) Weight
11.5 oz [326 g]

What's in the Box

Included in Package
1 - 5m SFP+ 10-Gigabit Ethernet (10GbE) Twinax Cable



5m Cisco Compatible SFP+ 10-Gigabit Ethernet 10GbE Direct Attach Cable - 10GBASE-CU SFP+ Copper Twinax Cable 5 meter - 24 AWG 100 OHM Passive


Brand Name: StarTech.com
Cable Length: 5 m
Cable Type: Twinaxial
Connector on First End: 1 x SFF-8431 SFP+
Connector on Second End: 1 x SFF-8431 - SFP+
Packaged Quantity: 1
Product Type: Network Cable


Basic

Brand Name:
StarTech.com

Cable Length:
5 m

Cable Type:
Twinaxial

Connector on First End:
1 x SFF-8431 SFP+

Connector on Second End:
1 x SFF-8431 - SFP+

Packaged Quantity:
1

Product Type:
Network Cable
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
SFPCMM5M

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
5m Cisco Compatible SFP+ 10-Gigabit Ethernet (10GbE) Twinax Direct Attach Cable

Product Type:
Network Cable
Lock

Cable Length:
5 m
Miscellaneous

Certifications & Standards:


MSA


Device Supported:
Network Device

Green Compliance Certificate/Authority:
RoHS

Green Compliant:
Yes
Physical Characteristics

Material:
Polyvinyl Chloride (PVC) - Jacket
Product Information

Cable Length:
5 m

Device Supported:
Network Device

Packaged Quantity:
1
Technical Information

Cable Length:
5 m

Cable Type:
Twinaxial

Conductor:
Copper

Connector on First End:
1 x SFF-8431 SFP+

Connector on Second End:
1 x SFF-8431 - SFP+

Device Supported:
Network Device
Warranty

Limited Warranty:
2 Year
