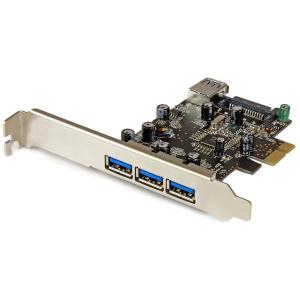

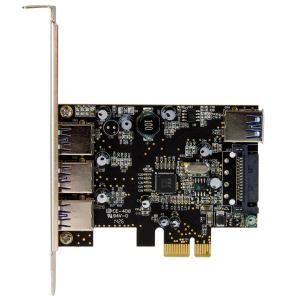

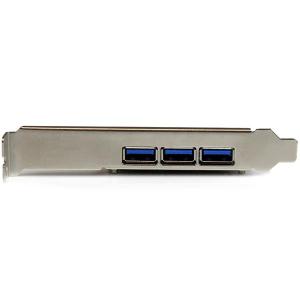

Startech 4-Port PCI Express USB 3.0 Card PEXUSB3S42

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEXUSB3S42




Add four USB 3.0 ports – three external ports and one internal port – to your computer


  • Expands your computer connectivity with four extra USB 3.0 ports (3 external, 1 internal)


  • Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later


  • Fits standard or small form-factor computers, low-profile bracket included


Here’s a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.


Enjoy convenient USB 3.0 port availability


With three external USB 3.0 ports you can connect more devices to your computer. The card provides easy access to commonly-used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device such as a flash drive inside your computer case, providing added security and convenience.


USB 3.0 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices.


Get up and running quickly


Setup is a breeze with native operating system support. The USB 3.0 adapter card automatically installs in Windows® 8.1, 8 and 7.


For convenient installation, this PCI Express USB 3.0 card features a dual-profile design that can be installed in almost any type of computer. It comes equipped with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems.


UASP support for more efficient data transfers


This high-performance USB 3.0 card is enhanced with UASP support, which can perform ~70% faster read speed and ~40% faster write speed over traditional USB 3.0, when paired with UASP-enabled enclosure.

UASP speed benefit diagram


The PEXUSB3S42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1, 8, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.


Applications
  • Enhance the connection capabilities of your PCI Express enabled computer or server
  • Connect external hard drives, tablets, smartphones, CD/DVD drives, webcams or game controllers to your computer
  • Connect your flash drive or other devices to the internal USB 3.0 port for a secure connection

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

VIA/VLI - VL805

Industry Standards

USB 3.0 Specification Rev. 1.0

PCI Express Base Specification Rev. 2.0

Intel xHCI Specification Rev. 1.0

Interface

USB 3.0

Port Style

Integrated on Card

Ports

4

Performance

Maximum Cable Length

9.8 ft [3 m]

Maximum Data Transfer Rate

5 Gbps

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

External Ports

3 - USB Type-A (9 pin) USB 3.0 Female

Internal Ports

1 - SATA Power (15 pin) Plug

1 - USB Type-A (9 pin) USB 3.0 Female

Software

OS Compatibility

Windows® XP, Vista, 7, 8, 8.1, 10

Windows Server® 2008 R2, 2012, 2012 R2, 2016

Linux 2.6.31 to 4.4.x LTS Versions only

Special Notes / Requirements

Note

The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

System and Cable Requirements

PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)

SATA power connector (recommended, but optional)

Environmental

Humidity

20~80% RH

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Product Height

4.7 in [120 mm]

Product Length

3.4 in [87 mm]

Product Weight

2.1 oz [59 g]

Product Width

0.7 in [19 mm]

Packaging Information

Shipping (Package) Weight

5 oz [143 g]

What's in the Box

Included in Package

1 - 4 Port PCI Express USB 3.0 Card

1 - Low-Profile Bracket

1 - Driver CD

1 - Instruction Manual



4 Port PCI Express USB 3.0 Card - 3 External and 1 Internal - Native OS Support in Windows 8 and 7 - Standard and Low-Profile - Cost-effective USB 3.0 Adapter Card - SATA Power


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express 2.0 x1
Product Type: USB Adapter
Total Number of USB Ports: 4


Basic

Brand Name:

StarTech.com

Form Factor:

Plug-in Card

Host Interface:

PCI Express 2.0 x1

Product Type:

USB Adapter

Total Number of USB Ports:

4
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEXUSB3S42

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

4 Port PCI Express USB 3.0 Card - 3 External and 1 Internal

Product Type:

USB Adapter
Interfaces/Ports

Number of USB 3.0 Ports:

4

Total Number of USB Ports:

4
Miscellaneous

Additional Information:
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2
  • Linux 2.6.31 and later (tested up to 3.5)

Platform Supported:

Linux

PC
Physical Characteristics

Form Factor:

Plug-in Card

Height:

119.4 mm

Length:

86.4 mm


Weight (Approximate):

59.5 g

Width:

17.8 mm
Technical Information

Host Interface:

PCI Express 2.0 x1
