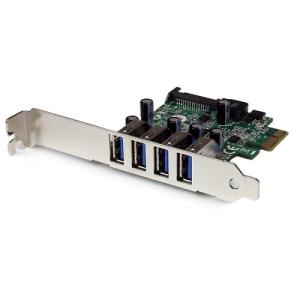

Startech 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power PEXUSB3S4V

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEXUSB3S4V




Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express

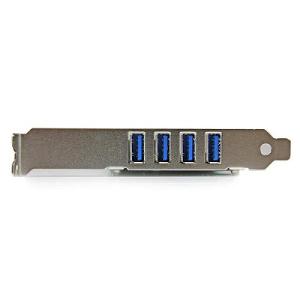

  • 4 external USB 3.0 ports in a stacked layout


  • UASP support for more efficient data transfer


  • Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications


The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.


Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.


The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

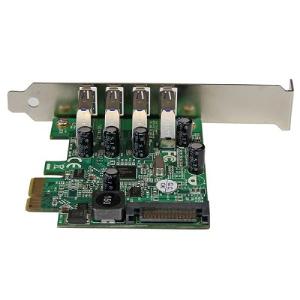

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Improved Performance with UASP


UASP is supported in Windows® 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram


At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

UASP Speed Diagram


Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.


The StarTech.com Advantage
  • USB 3.0 PCI-E card has 4 external USB 3.0 ports using a space-saving stacked layout
  • Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
  • Power high-powered USB devices as necessary, with the optional SATA power connector

Applications
  • Upgrade an older PCIe-based system with USB 3.0 connectivity, to fully utilize USB 3.0 devices
  • Expand a system's USB capabilities with four additional external USB ports, for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc.

Warranty Information

Warranty
2 Years

Hardware

Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Chipset ID
NEC uPD720201

Interface
USB 3.0

Port Style
Integrated on Card

Ports
4

Performance

Type and Rate
USB 3.0 - 5 Gbit/s

UASP Support
Yes

Connector(s)

Connector Type(s)
1 - PCI Express x1 Male

External Ports
4 - USB Type-A (9 pin) USB 3.0 Female

Internal Ports
1 - SATA Power (15 pin) Plug

Software

OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Special Notes / Requirements

Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

System and Cable Requirements
Available PCI Express expansion slot

Environmental

Humidity
20% ~ 80% RH

Operating Temperature
5°C to 50°C (41°F to 122°F)

Storage Temperature
-25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Product Height
2.7 in [68 mm]

Product Length
3 in [75 mm]

Product Weight
1.6 oz [45 g]

Product Width
0.7 in [19 mm]

Packaging Information

Package Quantity
1

Shipping (Package) Weight
0.2 lb [0.1 kg]

What's in the Box

Included in Package
1 - PCI Express USB 3.0 Card

1 - Low Profile Bracket

1 - Driver CD

1 - Instruction Manual



4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power - USB 3 PCIe Card - USB 3.0 PCI-e Card


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Product Type: USB Adapter
Total Number of USB Ports: 4


Basic

Brand Name:
StarTech.com

Form Factor:
Plug-in Card

Host Interface:
PCI Express x1

Product Type:
USB Adapter

Total Number of USB Ports:
4
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
PEXUSB3S4V

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Package Contents:
  • PCI Express USB 3.0 Card
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Packaged Quantity:
1

Product Name:
PCI Express USB 3.0 Card

Product Type:
USB Adapter
Interfaces/Ports

Host Interface:
PCI Express x1

Number of USB 3.0 Ports:
4

Total Number of USB Ports:
4
Miscellaneous

Form Factor:
Plug-in Card

Green Compliance Certificate/Authority:
RoHS

Green Compliant:
Yes

Package Contents:
  • PCI Express USB 3.0 Card
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:
PC
Physical Characteristics

Form Factor:
Plug-in Card

Height:
68.6 mm

Platform Supported:
PC

Thickness:
17.8 mm


Weight (Approximate):

45 g

Width:
76.2 mm
Product Information

Form Factor:
Plug-in Card

Packaged Quantity:
1

Platform Supported:
PC

Thickness:
17.8 mm

Width:
76.2 mm
Technical Information

Host Interface:
PCI Express x1

Platform Supported:
PC
Warranty

Limited Warranty:
2 Year
