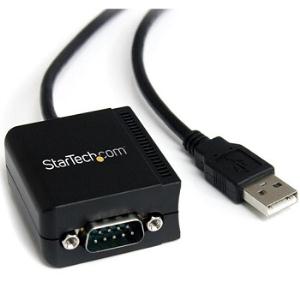

Startech 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention ICUSB2321F

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ICUSB2321F

Add an RS232 serial port with COM retention to your laptop or desktop computer through USB

Integrated FTDI USB UART Chip
Baud Rate up to 115.2Kbps
COM Port assignments maintained across reboot

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
Portable USB-Powered design requires no bulky power adapter or outlet
Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices

Applications

Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Connect, monitor and control industrial/automotive sensors and equipment
Connect bar code scanners, receipt printers and other point of sale devices
Connect and program LED and Digital signage boards with serial communication ports
Connect a satellite receiver, serial modem, or PDU

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 2.0
Chipset ID	FTDI - FT232RL
Interface	Serial
Port Style	Cable Adapters
Ports	1
Performance
Data Bits	7, 8
FIFO	256 Bytes
Max Baud Rate	115.2 Kbps
MTBF	836981.2 hours
Parity	None, Odd, Even, Mark, Space
Serial Protocol	RS-232
Stop Bits	1, 2
Connector(s)
Connector Type(s)	1 - DB-9 (9 pin, D-Sub) Male
	1 - USB Type-A (4 pin) USB 2.0 Male
Software
OS Compatibility	Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements	One available USB 1.1 (or better) port
Power
Power Source	USB-Powered
Environmental
Humidity	5~95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length	6 ft [1.8 m]
Color	Black
Enclosure Type	Plastic
Product Height	0.9 in [22 mm]
Product Length	1.8 in [45 mm]
Product Weight	7.1 oz [200 g]
Product Width	1.6 in [41.5 mm]
Packaging Information
Shipping (Package) Weight	0.5 lb [0.2 kg]
What's in the Box
Included in Package	1 - USB to RS-232 Serial Adapter
	1 - Driver CD
	1 - Instruction Manual

1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention - USB to RS232 Serial Port Adapter

Brand Name: StarTech.com

Cable Length: 1.83 m

Cable Type: Serial

Colour: Black

Connector on First End: 1 x DB-9 Male USB

Connector on Second End: 1 x Type A Male USB

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Cable Length:	1.83 m
Cable Type:	Serial
Colour:	Black
Connector on First End:	1 x DB-9 Male USB
Connector on Second End:	1 x Type A Male USB
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ICUSB2321F
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Package Contents:	1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention 1 x Driver CD 1 x Instruction Manual
Product Name:	1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
Product Type:	Data Transfer Cable

Lock
Cable Length:	1.83 m

Miscellaneous
Additional Information:	Operating System(s): Windows 8 / 7 / Vista / XP(32/64-bit) Windows 2000 Windows CE(4.2+) Windows Server 2008 R2 Windows 2003(32/64-bit) Mac OS v.9.x, v.10.x (Tested up to v.10.8) Linux
Certifications & Standards:	FCC
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes
Package Contents:	1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention 1 x Driver CD 1 x Instruction Manual

Physical Characteristics
Colour:	Black
Weight (Approximate):	200 g

Product Information
Cable Length:	1.83 m

Technical Information
Cable Length:	1.83 m
Cable Type:	Serial
Conductor:	Copper
Connector on First End:	1 x DB-9 Male USB
Connector on Second End:	1 x Type A Male USB

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 537053

Vendor Part No ICUSB2321F

UPC/EAN Number 065030843485
