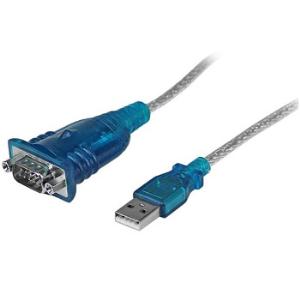

Startech 1 Port USB to RS232 DB9 Serial Adapter Cable - M/M ICUSB232V2

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ICUSB232V2

Add an RS232 serial port to your laptop or desktop computer through USB

USB to Straight-Through RS232 DB9 Serial Adapter
High-speed 921.6Kbps Baud Rate
Compatible with Windows® 8, Mac OS X® and Linux

The ICUSB232V2 1 Port USB to Serial Adapter converts a USB port into an RS232 DB9 serial port to connect to, monitor, and control a serial device.

Supporting data transfer rates up to 921.6 Kbps, the USB to serial cable is a convenient and cost-saving solution for providing serial connectivity to devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.

The USB to RS232 converter is easy to install and offers broad operating system compatibility, including Windows® 8, Linux and Mac OS®, for easy integration into mixed environments.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Install in almost any laptop or desktop computer through broad operating system compatibility, including Windows® 8
Communicate efficiently with connected devices with high-speed 921Kbps support
Portable and lightweight, the USB-Powered design requires no additional power adapter

Applications

IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Connect bar code scanners, receipt printers and other point of sale devices
Connect, monitor and control industrial/automotive sensors and other sensitive equipment
Connect and program LED and digital signage boards

Warranty Information
Warranty	3 Years
Hardware
Bus Type	USB 2.0
Chipset ID	Prolific - PL2303RA
Industry Standards	USB 1.1/2.0 RS232
Interface	Serial
Port Style	Cable Adapters
Ports	1
Performance
Data Bits	5, 6, 7, 8
FIFO	512 Bytes
Flow Control	None, Xon/Xoff, RTS/CTS, DTR/DSR
Max Baud Rate	921.6 Kbps
MTBF	30,000 Hours
Parity	Odd, Even, Mark, Space, or None Parity Modes
Serial Protocol	RS-232
Stop Bits	1, 1.5, 2
Connector(s)
Connector Type(s)	1 - DB-9 (9 pin, D-Sub) Male
	1 - USB Type-A (4 pin) USB 2.0 Male
Software
Microsoft WHQL Certified	Yes
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 9.x, 8.x, 10.6 to 10.12 Linux 2.4.31 to 4.4.x LTS Versions Only
Special Notes / Requirements
System and Cable Requirements	One available USB 1.1 (or above) port
Environmental
Humidity	0~65% RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 80°C (-4°F to 176°F)
Physical Characteristics
Enclosure Type	Plastic
Product Height	0.8 in [20 mm]
Product Length	16.9 in [430 mm]
Product Weight	1.9 oz [52.5 g]
Product Width	1.4 in [35 mm]
Packaging Information
Shipping (Package) Weight	2.2 oz [62.5 g]
What's in the Box
Included in Package	1 - USB to RS232 Adapter
	1 - Instruction Manual

1 Port USB to RS232 DB9 Serial Adapter Cable - M/M

Brand Name: StarTech.com

Cable Length: 30.48 cm

Cable Type: Serial/USB

Colour: Black

Connector on First End: 1 x DB-9 Male Serial

Connector on Second End: 1 x Type A Male USB

Packaged Quantity: 1

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Cable Length:	30.48 cm
Cable Type:	Serial/USB
Colour:	Black
Connector on First End:	1 x DB-9 Male Serial
Connector on Second End:	1 x Type A Male USB
Packaged Quantity:	1
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ICUSB232V2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	1 Port USB to RS232 DB9 Serial Adapter Cable - M/M
Product Type:	Data Transfer Cable

Miscellaneous
Additional Information:	OS Compatibility: Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000 Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.x (tested up to 10.10), 9.x, 8.x Linux 2.4.31 and later

Miscellaneous

Additional Information:

OS Compatibility:

Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (tested up to 10.10), 9.x, 8.x
Linux 2.4.31 and later

Physical Characteristics
Colour:	Black
Material:	Plastic - Housing
Weight (Approximate):	53.9 g

Technical Information
Cable Configuration:	Straight-through
Cable Length:	30.48 cm
Cable Type:	Serial/USB
Conductor:	Copper
Connector on First End:	1 x 9-pin DB-9 Male RS-232 Serial
Connector on Second End:	1 x 4-pin Type A Male USB 2.0 USB
Device Supported:	Bar Code Reader
	Label/Receipt Printer
	Monitor
	Notebook
	POS Device
	Scanner

Warranty
Limited Warranty:	3 Year

Information

SKU/Item No 537040

Vendor Part No ICUSB232V2

UPC/EAN Number 065030852609
