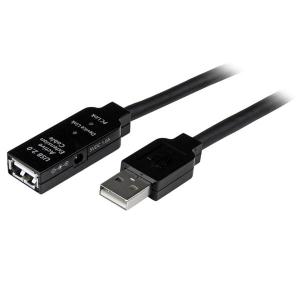

Startech 10m USB 2.0 Active Extension Cable - M/F USB2AAEXT10M

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

USB2AAEXT10M

Extend the distance between a computer and a USB 2.0 device by 10 meters

1x USB-A male connector
1x USB-A female connector
Fully shielded for error-free connections

The USB2AAEXT10M 10m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 10-meters (30-feet).

An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables.

Up to 4 of these cables can be daisy-chained together, allowing for a total USB extension of up to 40-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).

The USB2AAEXT10M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.

The StarTech.com Advantage

No USB signal loss, even at a distance of up to 30 feet (10 meters)
Power your USB devices directly from the USB port or through the included universal external power adapter
Daisy chain up to 4 cables together for reaching connection distances of up to 40-meters between your USB 2.0 devices

Applications

Extend the distance of USB peripherals beyond the USB 2.0 5-meter limitation
Daisy chain up to 4 cables together for even longer USB extensions

Warranty Information
Warranty	2 Years
Hardware
Cable Jacket Type	PVC - Polyvinyl Chloride
Connector Plating	Nickel
Connector(s)
Connector A	1 - USB Type-A (4 pin) USB 2.0 Male
Connector B	1 - USB Type-A (4 pin) USB 2.0 Female
Special Notes / Requirements
Note	Cascade up to 4 USB2AAEXT10M devices together for further extension
Power
Center Tip Polarity	Positive
Input Current	0.35 A
Input Voltage	110V-240V AC
Output Current	1A
Output Voltage	5 DC
Plug Type	H
Power Consumption (In Watts)	5
Power Source	AC Adapter Included
Physical Characteristics
Cable Length	32.8 ft [10 m]
Color	Black
Connector Style	Straight
Product Length	32.8 ft [10 m]
Product Weight	14.2 oz [402 g]
Packaging Information
Package Quantity	1
Shipping (Package) Weight	21.4 oz [605 g]
What's in the Box
Included in Package	1 - 10m USB 2.0 Active Extension Cable - M/F
	1 - Universal Power Adapter
	1 - Plug Adapters for North America, UK, Europe, and Australia

10m USB 2.0 Active Extension Cable M/F

Brand Name: StarTech.com

Cable Length: 10 m

Cable Type: USB

Colour: Black

Connector on First End: 1 x Type A Male USB

Connector on Second End: 1 x Power

Connector on Second End: 1 x Type A Female USB

Packaged Quantity: 1

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Cable Length:	10 m
Cable Type:	USB
Colour:	Black
Connector on First End:	1 x Type A Male USB
Connector on Second End:	1 x Power
	1 x Type A Female USB
Packaged Quantity:	1
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB2AAEXT10M
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	10m USB 2.0 Active Extension Cable - M/F
Product Type:	Data Transfer Cable

Physical Characteristics
Colour:	Black
Material:	Polyvinyl Chloride (PVC) - Jacket
Weight (Approximate):	500 g

Technical Information
Cable Characteristic:	Extension Cable
Cable Length:	10 m
Cable Type:	USB
Conductor:	Copper
Connector Plating:	Nickel Plated
Connector on First End:	1 x 4-pin Type A Male USB 2.0 USB
Connector on Second End:	1 x 4-pin Type A Female USB 2.0 USB
	1 x Power
Features:	Active
Shielding:	Yes

Information

SKU/Item No 537034

Vendor Part No USB2AAEXT10M

UPC/EAN Number 065030854344
