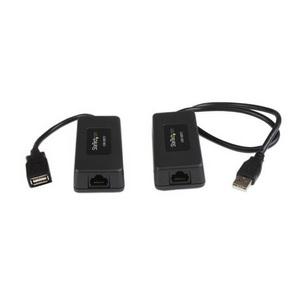

Startech 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m) USB110EXT2

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

USB110EXT2

Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable

1x USB 1.1 port, 1x RJ45 port
Support for a maximum distance of up to 40m (131ft), over Cat5 or Cat6 cabling
Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.

The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.

Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+
Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options
USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device

Applications

Secured environments where the host computer must be in a secure, inaccessible location from the the keyboard, mouse, camera or other USB input devices
Use existing in-wall Cat5/Cat6 wiring to extend USB 1.1 device connections between rooms
Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/Cat6 cable
Industrial control environments where the host computer must be located away from interference or contamination

Warranty Information
Warranty	3 Years
Hardware
Cabling	Cat 5e UTP or better
Ports	1
Performance
Max Distance	40 m / 131 ft
Maximum Data Transfer Rate	12 Mbps
Connector(s)
Local Unit Connectors	1 - RJ-45 Female
	1 - USB Type-A (4 pin) USB 2.0 Male
Remote Unit Connectors	1 - RJ-45 Female
	1 - USB Type-A (4 pin) USB 2.0 Female
Software
OS Compatibility	OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements	Available USB port
Power
Power Source	USB-Powered
Environmental
Humidity	20% ~ 80% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	1 in [25 mm]
Product Length	3.3 in [85 mm]
Product Weight	1.8 oz [50 g]
Product Width	1.6 in [40 mm]
Packaging Information
Package Quantity	1
Shipping (Package) Weight	6.5 oz [185 g]
What's in the Box
Included in Package	1 - USB 1.1 Extender Local Unit
	1 - USB 1.1 Extender Remote Unit
	1 - Instruction Manual

1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)

Brand Name: StarTech.com

Product Type: USB Extender

Basic
Brand Name:	StarTech.com
Product Type:	USB Extender

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB110EXT2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Package Contents:	1 x Local Unit 1 x Remote Unit 1 x Instruction Manual
Packaged Quantity:	1
Product Name:	1 Port USB Over Cat5 / Cat6 Ethernet Extender - Up to 131ft (40m)
Product Type:	USB Extender

Miscellaneous
Additional Information:	Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 165 feet (50 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+ USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device 1x USB 1.1 port, 1x RJ45 port 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection Integrated USB cables No driver or software required
Certifications & Standards:	CE FCC
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes
Package Contents:	1 x Local Unit 1 x Remote Unit 1 x Instruction Manual

Physical Characteristics
Height:	25.4 mm
Length:	83.8 mm
Weight (Approximate):	50 g
Width:	40.6 mm

Product Information
Length:	83.8 mm
Packaged Quantity:	1
Width:	40.6 mm

Technical Information
Length:	83.8 mm

Warranty
Limited Warranty:	3 Year

Information

SKU/Item No 537005

Vendor Part No USB110EXT2

UPC/EAN Number 065030847896
