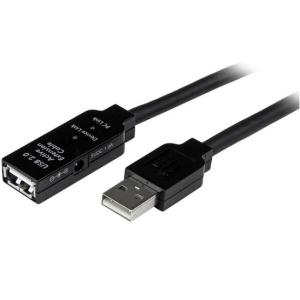

Startech 25m USB 2.0 Active Extension Cable - M/F USB2AAEXT25M

Features
usb2aaext25m cable extension active startech
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB2AAEXT25M




Extend the distance between a computer and a USB 2.0 device by 25 meters


  • USB bus-powered


  • Universal external power source also included


  • Blue LED indicator x1 for Extension Cable and USB port connection status monitoring


The USB2AAEXT25M 25m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 25-meters (80-feet).


An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 2 cables for a total USB extension of up to 50-meters.


If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).


The USB2AAEXT25M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.


The StarTech.com Advantage
  • No USB signal loss, even at a distance of up to 80 feet (25 meters)
  • Power your USB devices directly from the USB port or through the included universal external power adapter
  • Daisy chain 2 cables together for reaching connection distances of up to 50-meters between your USB 2.0 devices

Applications
  • Extend the distance of USB peripherals beyond the USB 2.0 5-meter limitation
  • Daisy chain 2 cables together for even longer USB extensions

Warranty Information

Warranty
2 Years

Hardware

Cable Jacket Type
PVC - Polyvinyl Chloride

Connector Plating
Nickel

Connector(s)

Connector A
1 - USB Type-A (4 pin) USB 2.0 Male

Connector B
1 - USB Type-A (4 pin) USB 2.0 Female

Special Notes / Requirements

Note
Cascade two USB2AAEXT25M devices together for further extension

Power

Center Tip Polarity
Positive

Input Current
0.35 A

Input Voltage
110V-240V AC

Output Current
1A

Output Voltage
5 DC

Plug Type
H

Power Consumption (In Watts)
5

Power Source
AC Adapter Included

Physical Characteristics

Cable Length
82 ft [25 m]

Color
Black

Connector Style
Straight

Product Height
0.4 in [10 mm]

Product Length
82 ft [25 m]

Product Weight
34.3 oz [972 g]

Product Width
0.6 in [16.5 mm]

Packaging Information

Package Quantity
1

Shipping (Package) Weight
2.7 lb [1.2 kg]

What's in the Box

Included in Package
1 - 25m USB 2.0 Active Extension Cable - M/F

1 - Universal Power Adapter

1 - Plug Adapters for North America, UK, Europe, and Australia



25m USB 2.0 Active Extension Cable MF


Brand Name: StarTech.com
Cable Length: 25 m
Cable Type: USB
Colour: Black
Connector on First End: 1 x Type A Male USB
Connector on Second End: 1 x Type A Female USB
Packaged Quantity: 1
Product Type: Data Transfer Cable


Basic

Brand Name:
StarTech.com

Cable Length:
25 m

Cable Type:
USB

Colour:
Black

Connector on First End:
1 x Type A Male USB

Connector on Second End:
1 x Type A Female USB

Packaged Quantity:
1

Product Type:
Data Transfer Cable
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB2AAEXT25M

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
25m USB 2.0 Active Extension Cable - M/F

Product Type:
Data Transfer Cable
Physical Characteristics

Colour:
Black

Material:
Polyvinyl Chloride (PVC) - Jacket


Weight (Approximate):

1.20 kg
Technical Information

Cable Characteristic:
Extension Cable

Cable Length:
25 m

Cable Type:
USB

Conductor:
Copper

Connector Plating:
Nickel Plated

Connector on First End:
1 x 4-pin Type A Male USB 2.0 USB

Connector on Second End:
1 x 4-pin Type A Female USB 2.0 USB

Features:
Active

Shielding:
Yes
