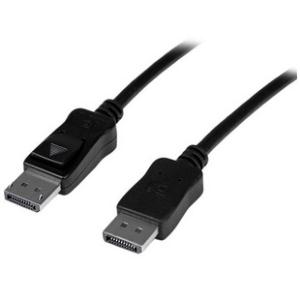

Startech 10m Active DisplayPort Cable - DP to DP M/M DISPL10MA

Features
displ10ma displayport cable active male
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

DISPL10MA




Connect DisplayPort®-equipped devices up to 10m away with no signal loss


  • 1x DisplayPort male connector


  • 1x DisplayPort male connector with Latches


  • Built-in, active amplifier circuitry


The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.


This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.


The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.


This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.

Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.


The StarTech.com Advantage
  • No DisplayPort signal loss, even at a distance of up to 30 feet (10 meters)
  • Easier installations with enhanced cable flexibility
  • Prevent accidental disconnections with latched connector

Applications
  • Connecting a DisplayPort display to a PC or alternative DisplayPort source , over long distances, with no signal loss

Warranty Information

Warranty
2 Years

Hardware

Cable Jacket Type
PVC - Polyvinyl Chloride

Cable Shield Type
Aluminum-Mylar Foil with Braid

Connector Plating
Nickel

Fire Rating
CMG Rated (General Purpose)

Number of Conductors
19

Connector(s)

Connector A
1 - DisplayPort (20 pin) Latching Male

Connector B
1 - DisplayPort (20 pin) Male

Environmental

Operating Temperature
0°C to 45°C (32°F to 113°F)

Storage Temperature
-20°C to 70°C (-4°F to 158°F)

Physical Characteristics

Cable Length
32.8 ft [10 m]

Color
Black

Connector Style
Straight

Product Height
0.5 in [12 mm]

Product Length
32.8 ft [10 m]

Product Weight
16 oz [452 g]

Product Width
0.8 in [20 mm]

Wire Gauge
32 AWG

Packaging Information

Package Quantity
1

Shipping (Package) Weight
16.4 oz [466 g]

What's in the Box

Included in Package
1 - 10m Active DisplayPort® Cable - M/M



10m Active DisplayPort Cable - DisplayPort to DisplayPort - Active DP Cable - Male to Male - 10 meter Long Displayport Cable - 2560x1600


Brand Name: StarTech.com
Cable Length: 10 m
Cable Type: DisplayPort
Colour: Black
Connector on First End: 1 x DisplayPort Male Digital A
Connector on Second End: 1 x DisplayPort Male Digital A
Packaged Quantity: 1
Product Type: A/V Cable


Basic

Brand Name:
StarTech.com

Cable Length:
10 m

Cable Type:
DisplayPort

Colour:
Black

Connector on First End:
1 x DisplayPort Male Digital A

Connector on Second End:
1 x DisplayPort Male Digital A

Packaged Quantity:
1

Product Type:
A/V Cable
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
DISPL10MA

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Marketing Content:
The DISPL10MA 10m Active DisplayPort Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.

Packaged Quantity:
1

Product Name:
10m Active DisplayPort Cable - DP to DP M/M

Product Type:
A/V Cable
Physical Characteristics

Colour:
Black

Material:
Aluminum Mylar - Shielding

Foil - Shielding

Polyvinyl Chloride (PVC) - Jacket


Weight (Approximate):

565 g
Technical Information

Cable Length:
10 m

Cable Type:
DisplayPort

Conductor:
Copper

Connector Plating:
Nickel Plated

Connector on First End:
1 x 20-pin DisplayPort Male Digital Audio/Video

Connector on Second End:
1 x 20-pin DisplayPort Male Digital Audio/Video

Device Supported:
Audio/Video Device

Monitor

Projector

Features:
Active

Jacket Type:
CMG

Shielding:
Yes
