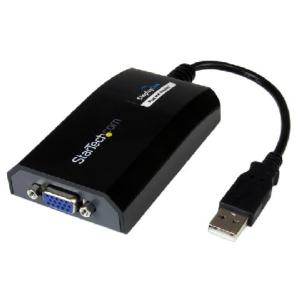

Startech USB to VGA Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200 USB2VGAPRO2

Features

usb2vgapro2 adapter video external startech

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

USB2VGAPRO2

Connect a VGA display for an extended desktop multi-monitor USB solution

Optimal performance at 1920x1200 and ideal for use with 24" to 26" monitors or smaller
Support for Aero themes in Windows®
Works with Mac® OS X

The USB2VGAPRO2 USB to VGA Adapter functions as an external graphics card for Windows® and Mac® computers - the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB.

The USB-VGA Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is capable of simultaneously running up to five additional displays from a single computer (using four USB2VGAPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0 port, acting as an external VGA video card to either extend or mirror the desktop shown on the existing display - without having to open the computer case.

Featuring driver support for Microsoft Windows® (including Aero themes) and Mac OS X, and with video support for resolutions up to 1920x1200, this USB-VGA video adapter is the ideal solution for a wide rade of operating environments as well as large-screen displays/monitors.

The USB2VGAPRO2 USB to VGA Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

The graphics adapter supports high-performance requirements and high resolution video, making it suitable for connecting large-screen monitors
USB-powered operation eliminates the need for an external power adapter, enabling you to position an additional monitor without having to make the extra power connection or carry an additional cable for mobile applications
Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system, which in many cases would void manufacturers' warranties

Applications

Add multiple (up to five) monitors / projectors to your computer setup using one USB2VGAPRO2 device for each additional display
View large or multiple spreadsheets across multiple displays
Increase productivity by running multiple applications on different VGA screens; check your email on one display while editing a document on the other
Use the USB-VGA adapter to connect your PC to your television for showing family pictures and movies
Connect multiple VGA monitors to a single computer to create engaging multimedia presentations
Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other

Warranty Information
Warranty	2 Years
Hardware
Chipset ID	DisplayLink - DL-195
Memory	16MB
USB Pass-Through	No
Performance
General Specifications	This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset.
Maximum Analog Resolutions	1920x1200 (32-bit Color)
Supported Resolutions	Standard(16/32 Bit): 640x480, 800x600, 1024x768, 1280x1024, 1600x1200 Widescreen(16/32 Bit): 1366x768, 1440X900, 1680x1050, 1920x1200
Connector(s)
Connector Type(s)	1 - USB Type-A (4 pin) USB 2.0 Male
	1 - VGA (15 pin, High Density D-Sub) Female
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 MacOS® 10.6 to 10.12 Chrome OS v51 Ubuntu 14.04, 16.04
Special Notes / Requirements
Note	Power PC-based Macintosh computers, such as late-model iMacs, PowerBooks and PowerMacs, are not currently supported
System and Cable Requirements	1.2Ghz or higher CPU 30MB of hard drive space 512 MB RAM USB 2.0 Port
Indicators
LED Indicators	1 - Blue - Power
Power
Power Source	USB-Powered
Environmental
Humidity
Operating Temperature	10°C to 40°C (50°F to 104°F)
Storage Temperature	-10°C to 80°C (14°F to 176°F)
Physical Characteristics
Color	Black
Product Height	0.6 in [15.5 mm]
Product Length	3.1 in [78 mm]
Product Weight	10.6 oz [300 g]
Product Width	1.7 in [43.5 mm]
Packaging Information
Shipping (Package) Weight	8.5 oz [240 g]
What's in the Box
Included in Package	1 - USB to VGA Adapter
	1 - Driver CD
	1 - Instruction Manual

USB to VGA Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200 - Display Adapter

Brand Name: StarTech.com

Chipset Manufacturer: DisplayLink

Chipset Model: DL-195

Form Factor: External

Host Interface: USB 2.0

Maximum Resolution: 1900 x 1200

Product Type: Graphic Adapter

Standard Memory: 16 MB

VGA: Yes

Basic
Brand Name:	StarTech.com
Chipset Manufacturer:	DisplayLink
Chipset Model:	DL-195
Form Factor:	External
Host Interface:	USB 2.0
Maximum Resolution:	1900 x 1200
Product Type:	Graphic Adapter
Standard Memory:	16 MB
VGA:	Yes

Display & Graphics
Maximum Resolution:	1900 x 1200

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	USB2VGAPRO2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Packaged Quantity:	1
Product Name:	USB to VGA Adapter - External USB Video Graphics Card for PC and MAC- 1920x1200
Product Type:	Graphic Adapter

Maximum Resolution:	1900 x 1200

Interfaces/Ports
Host Interface:	USB 2.0
Number of VGA Outputs:	1
VGA:	Yes

Memory
Standard Memory:	16 MB

Miscellaneous

Form Factor:

External

Platform Supported:

System Requirements:

1.2Ghz or Higher CPU
30MB of hard Drive Space
512 MB RAM
USB 2.0 Port

Operating System(s):

Windows XP (64/84 bit)
Windows Vista (64/84 bit)
Windows 7 (64/84 bit)
Windows 8
2000 (Aero 3D interface supported)
Mac OS Mountain Lion (10.8)
Lion (10.7) Snow Leopard (10.6)
Leopard (10.5)
Tiger (10.4)

Physical Characteristics
Form Factor:	External
Height:	15.2 mm
Length:	78.7 mm
Platform Supported:	PC
Thickness:	43.2 mm
Weight (Approximate):	300.5 g

Processor & Chipset
Chipset Manufacturer:	DisplayLink
Chipset Model:	DL-195

Product Information
Form Factor:	External
Length:	78.7 mm
Packaged Quantity:	1
Platform Supported:	PC
Thickness:	43.2 mm

Technical Information
Analog Signal:	Yes
Digital Signal:	Yes
Host Interface:	USB 2.0
Length:	78.7 mm
Maximum Resolution:	1900 x 1200
Platform Supported:	PC

Video
Maximum Resolution:	1900 x 1200

Information

SKU/Item No 536953

Vendor Part No USB2VGAPRO2

UPC/EAN Number 065030847995
