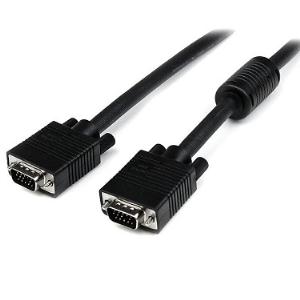

Startech 5m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M MXTMMHQ5M

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

MXTMMHQ5M

Connect your VGA monitor with the highest quality connection available

Triple coaxial + twisted-pair wire for crystal clear display
Durably constructed cable, with high quality HD15 connectors
Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
High quality VGA connectors with molded PVC strain relief

The MXTMMHQ5M High Resolution VGA Cable (5-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.

This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

The StarTech.com Advantage

Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
Ferrite cores help eliminate EMI interference
Backed by StarTech.com Lifetime warranty

Applications

Replace a worn-out or missing VGA monitor cable with this high quality, coax VGA cable
Supports high resolution VGA monitors (1920x1200)
Create a longer connection between a high resolution VGA display and a desktop PC/video switch than a typical cable length would allow

Warranty Information
Warranty	Lifetime
Hardware
Cable Jacket Type	PVC - Polyvinyl Chloride
Cable Shield Type	Aluminum-Mylar Foil with Braid
Connector Plating	Nickel
Fire Rating	CMG Rated (General Purpose)
Number of Conductors	14
Number of Ferrites	1
Connector(s)
Connector A	1 - VGA (15 pin, High Density D-Sub) Male
Connector B	1 - VGA (15 pin, High Density D-Sub) Male
Environmental
Humidity	0 - 80 %RH
Operating Temperature	0 to 60 °C
Storage Temperature	-20 to 80 °C
Physical Characteristics
Cable Length	16.4 ft [5 m]
Color	Black
Product Length	16.4 ft [5 m]
Product Weight	1.2 lb [0.6 kg]
Wire Gauge	28 AWG
Packaging Information
Package Quantity	1
Shipping (Package) Weight	1.2 lb [0.6 kg]
What's in the Box
Included in Package	1 - 5m Coax High Resolution Monitor VGA Cable - HD15 M/M

5m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M - 5m VGA Cable - HD15 to HD15 Cable

Brand Name: StarTech.com

Cable Length: 5 m

Cable Type: VGA

Colour: Black

Connector on First End: 1 x HD-15 Male VGA

Connector on Second End: 1 x HD-15 Male VGA

Packaged Quantity: 1

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Length:	5 m
Cable Type:	VGA
Colour:	Black
Connector on First End:	1 x HD-15 Male VGA
Connector on Second End:	1 x HD-15 Male VGA
Packaged Quantity:	1
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	MXTMMHQ5M
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The MXTMMHQ5M High Resolution VGA Cable (5-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
Packaged Quantity:	1
Product Name:	5m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
Product Type:	Video Cable

Lock
Cable Length:	5 m

Miscellaneous
Device Supported:	Monitor
Features:	Ferrite Bead
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes

Physical Characteristics
Colour:	Black
Connector Plating:	Nickel Plated
Material:	Aluminum Mylar - Shielding
Weight (Approximate):	500 g

Product Information
Cable Length:	5 m
Device Supported:	Monitor
Features:	Ferrite Bead
Packaged Quantity:	1

Storage
Features:	Ferrite Bead

Technical Information
Cable Length:	5 m
Cable Type:	VGA
Conductor:	Copper
Connector Plating:	Nickel Plated
Connector on First End:	1 x HD-15 Male VGA
Connector on Second End:	1 x HD-15 Male VGA
Device Supported:	Monitor
Features:	Ferrite Bead
Jacket Type:	CMG
Shielding:	Yes

Warranty
Limited Warranty:	Lifetime

Wireless Specifications
Features:	Ferrite Bead

Information

SKU/Item No 536942

Vendor Part No MXTMMHQ5M

UPC/EAN Number 065030847728
