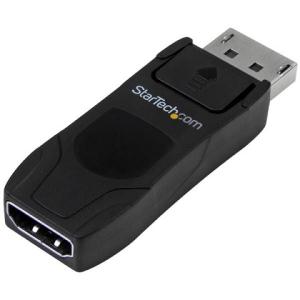

Startech DisplayPort to HDMI Adapter - 4K DP2HD4KADAP

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

DP2HD4KADAP




Connect your 4K HDMI display to a DP video source using this compact, passive adapter


  • Astonishing picture quality four times the resolution of 1080p with support for 4K


  • Maximum portability with a small footprint and lightweight design


  • Hassle-free setup with plug-and-play installation


This DisplayPort™ to HDMI® adapter supports 4K video resolution, enabling you to connect DisplayPort devices, such as an Ultrabook™ or desktop computer, to a 4K HDMI display or projector.


Astonishing 4K picture quality


You will be amazed at how this adapter flawlessly manages your graphics-intensive content. With support for resolutions up to 4K - four times the resolution of high-definition 1080p - its lossless performance makes the adapter the ideal solution for high-resource applications such as graphic design, CAD & CAM design, or health care imaging (MRI, radiology diagnostics, etc.).


Plus, the 4K adapter supports 1080p displays, which makes it a great accessory for home, office or other workspace applications.


Arrive prepared, wherever you go


This DP to HDMI adapter is extremely portable, with a lightweight, small-footprint design. It’s the perfect accessory to carry with your Ultrabook, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes the adapter ideal for BYOD (Bring Your Own Device) applications at the office, and enables you to arrive prepared when you’re presenting to a potential client, teaching off-site, or traveling to meet with a customer.


The DP2HD4KADAP is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Connect your 4K HDMI display to a DisplayPort output port
  • Carry with your laptop for BYOD office applications
  • Use an HDMI display as a secondary monitor for your DisplayPort computer

Warranty Information

Warranty

2 Years

Hardware

Adapter Style

Adapter

Audio

Yes

Converter Type

Passive

Industry Standards

DPCP (DisplayPort Content Protection)

HDCP (High Definition Content Protection)

DisplayPort 1.2

HDMI 1.4

Ports

1

Performance

Audio Specifications

7.1 Surround Sound

Maximum Digital Resolutions

4K x 2K @ 30 Hz

Supported Resolutions

4k x 2K (Ultra HD)

1920x1200

1920x1080 (1080p)

1280x720 (720p)

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - DisplayPort (20 pin) Male Input

Connector B

1 - HDMI (19 pin) Female Output

Environmental

Humidity

10%~85%RH

Operating Temperature

0°C to 60°C (32°F to 140°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Physical Characteristics

Product Height

0.4 in [11 mm]

Product Length

2.5 in [64 mm]

Product Weight

0.4 oz [12 g]

Product Width

0.8 in [21 mm]

Packaging Information

Shipping (Package) Weight

1.3 oz [36 g]

What's in the Box

Included in Package

1 - DisplayPort to HDMI adapter



DisplayPort to HDMI Converter - Passive DP to HDMI Adapter - 4K - Connect your 4K HDMI display to a DP video source using this compact passive adapter


Adapter Type: DisplayPort/HDMI
Brand Name: StarTech.com
Connector on First End: DisplayPort Digital Audio/Vid
Connector on Second End: HDMI Female Digital Audio/Vide
Packaged Quantity: 1
Product Type: A/V Adapter


Basic

Adapter Type:

DisplayPort/HDMI

Brand Name:

StarTech.com

Connector on First End:

DisplayPort Digital Audio/Vid

Connector on Second End:

HDMI Female Digital Audio/Vide

Packaged Quantity:

1

Product Type:

A/V Adapter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

DP2HD4KADAP

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

DisplayPort to HDMI Converter - Passive DP to HDMI Adapter - 4K

Product Type:

A/V Adapter
Technical Information

Adapter Type:

DisplayPort/HDMI

Connector on First End:

1 x 20-pin DisplayPort Male DisplayPort 1.2 Digital Audio/Video

Connector on Second End:

1 x 19-pin HDMI Female HDMI 1.4 Digital Audio/Video

Maximum Resolution Supported:

1920 x 1200
