Startech DisplayPort 1.2 to VGA Adapter Converter – DP to VGA – 1920x1200 DP2VGA3

Features

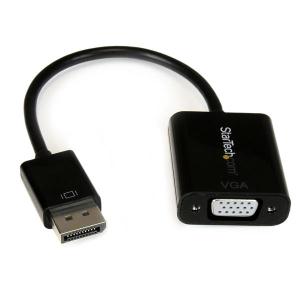

dp2vga3 1920x1200 converter adapter displayport

Click to view full size

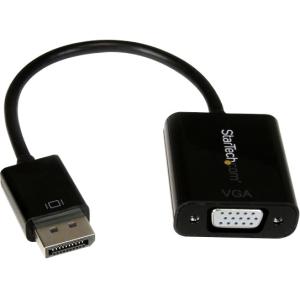

dp2vga3 1920x1200 converter adapter displayport image 2

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

DP2VGA3

Connect a DisplayPort 1.2-equipped computer to a VGA Monitor or Projector

Fully compliant with DisplayPort 1.2 revision
No software or drivers required
Compact and lightweight design
Supports video resolution up to 1920x1200 / 1080p

The DP2VGA3 DisplayPort 1.2 to VGA adapter lets you connect your DisplayPort-equipped desktop or laptop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DisplayPort 1.2-capable display.

The DP to VGA adapter is fully compliant with the DisplayPort 1.2 revision, ensuring compatibility with newer DisplayPort enabled computer systems. The DisplayPort 1.2 adapter is also backward compatible with older DisplayPort revisions, ensuring this adapter will work with your DisplayPort computer. Plus, with support for resolutions up to 1920x1200 / 1080p you can convert your DisplayPort video source to work with your VGA projector or display without sacrificing video quality.

For a hassle-free setup the DisplayPort adapter allows for plug and play installation with no software or drivers required.

The DP2VGA3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Save upgrade costs by connecting your DisplayPort computer to a VGA projector or monitor
Ensure optimal performance, with a DisplayPort 1.2 compliant converter
Hassle-free setup with no software or drivers required

Applications

Extend your desktop to a secondary display, by connecting a VGA monitor to your DisplayPort port
Connect your DisplayPort computer to a VGA projector
Carry the adapter with you while travelling to ensure your laptop is compatible with VGA displays in BYOD applications

Warranty Information
Warranty	2 Years
Hardware
Adapter Style	Adapter
Audio	No
Converter Type	Active
Performance
Maximum Analog Resolutions	1920x1200
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - DisplayPort (20 pin) Male
Connector B	1 - VGA (15 pin, High Density D-Sub) Female
Environmental
Humidity	40%-85%RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	0°C to 70°C (32°F to 158°F)
Physical Characteristics
Cable Length	3.9 in [100 mm]
Color	Black
Enclosure Type	Plastic
Product Height	0.6 in [14 mm]
Product Length	9.1 in [230 mm]
Product Weight	1.1 oz [30 g]
Product Width	1.5 in [37 mm]
Packaging Information
Shipping (Package) Weight	1.4 oz [40 g]
What's in the Box
Included in Package	1 - DisplayPort to VGA Adapter

DisplayPort# 1.2 to VGA Adapter Converter # DP to VGA # 1920x1200

Brand Name: StarTech.com

Cable Type: DisplayPort/VGA

Colour: Black

Connector on First End: 1 x DisplayPort Male Digital A

Connector on Second End: 1 x HD-15 Female VGA

Packaged Quantity: 1

Product Type: A/V Cable

Basic
Brand Name:	StarTech.com
Cable Type:	DisplayPort/VGA
Colour:	Black
Connector on First End:	1 x DisplayPort Male Digital A
Connector on Second End:	1 x HD-15 Female VGA
Packaged Quantity:	1
Product Type:	A/V Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	DP2VGA3
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The DP2VGA3 DisplayPort 1.2 to VGA adapter lets you connect your DisplayPort-equipped desktop or laptop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DisplayPort 1.2-capable display.
Packaged Quantity:	1
Product Name:	DisplayPort 1.2 to VGA Adapter Converter - DP to VGA - 1920x1200
Product Type:	A/V Cable

Physical Characteristics
Colour:	Black
Material:	Plastic
Weight (Approximate):	45.4 g

Technical Information
Cable Type:	DisplayPort/VGA
Conductor:	Copper
Connector on First End:	1 x 20-pin DisplayPort Male Digital Audio/Video
Connector on Second End:	1 x 15-pin HD-15 Female VGA
Device Supported:	Audio/Video Device
	Monitor
	Projector

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 536931

Vendor Part No DP2VGA3

UPC/EAN Number 065030848701
