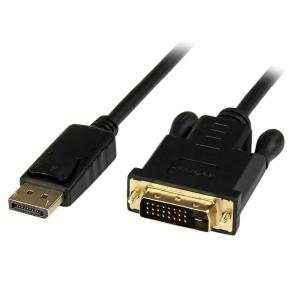

Startech 3 ft DisplayPort to DVI Active Adapter Converter Cable - DP to DVI 1920x1200 - Black DP2DVIMM3BS

Features

dp2dvimm3bs displayport cable video male

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

DP2DVIMM3BS

Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapter

Active DisplayPort to DVI conversion
1x Male DisplayPort connector, 1x Male DVI connector
Supports resolutions up to 1920x1200
Plug-and-play Installation

The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.

For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.

The DP2DVIMM3BS is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Hassle-free installation with cable-style adapter enabling you to connect your DisplayPort source directly to a DVI display with no additional video cable required
Save upgrade costs by connecting your DisplayPort computer to a DVI monitor or Projector
Reduces clutter, with a short cable design

Applications

Use with single-mode DisplayPort video outputs that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity video cards
Connect your DVI display device (monitor, projector) directly to a DisplayPort output device
Ideal for using your DVI monitor as a secondary display

Warranty Information
Warranty	2 Years
Hardware
Adapter Style	Cable Adapter
Audio	No
Chipset ID	PS171A
Converter Type	Active
Performance
Maximum Cable Length	3 ft [0.9 m]
Maximum Digital Resolutions	1920 x 1200
Supported Resolutions	1024 x 768 1280 x 720 1920 x 1080 1920 x 1200
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - DisplayPort (20 pin) Male
Connector B	1 - DVI-D (25 pin) Male
Special Notes / Requirements
System and Cable Requirements	Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
	This adapter is not compatible for use with the Apple Cinema Display.
Environmental
Humidity	40%-85%RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Cable Length	3 ft [0.9 m]
Color	Black
Product Height	0.6 in [15 mm]
Product Length	3 ft [0.9 m]
Product Weight	2.8 oz [80.6 g]
Product Width	1.6 in [40 mm]
Packaging Information
Shipping (Package) Weight	3.2 oz [91.6 g]
What's in the Box
Included in Package	1 - Active DisplayPort to DVI Adapter

3 ft DisplayPort# to DVI Active Adapter Converter Cable # DP to DVI 2560x1600 # Black

Brand Name: StarTech.com

Cable Length: 91.44 cm

Cable Type: DisplayPort/DVI

Colour: Black

Connector on First End: 1 x DisplayPort Male Digital A

Connector on Second End: 1 x DVI-D Male Digital Video

Packaged Quantity: 1

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Length:	91.44 cm
Cable Type:	DisplayPort/DVI
Colour:	Black
Connector on First End:	1 x DisplayPort Male Digital A
Connector on Second End:	1 x DVI-D Male Digital Video
Packaged Quantity:	1
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	DP2DVIMM3BS
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Packaged Quantity:	1
Product Name:	DisplayPort/DVI Video Cable
Product Type:	Video Cable

Physical Characteristics
Colour:	Black

Technical Information
Cable Length:	91.44 cm
Cable Type:	DisplayPort/DVI
Conductor:	Copper
Connector on First End:	1 x 20-pin DisplayPort Male Digital Audio/Video
Connector on Second End:	1 x 25-pin DVI-D Male Digital Video
Device Supported:	MacBook
	Monitor
	Notebook
	Projector
	TV
	Ultrabook
	Video Device
Features:	Active

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 536888

Vendor Part No DP2DVIMM3BS

UPC/EAN Number 065030854900
