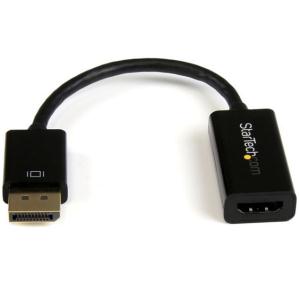

Startech DisplayPort to HDMI 4K Audio / Video Converter – DP 1.2 to HDMI Active Adapter for Desktop / Laptop Computers – 4K @ 30 Hz DP2HD4KS

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

DP2HD4KS




Connect an HDMI monitor to a DisplayPort video source


  • Supports video resolutions up to 4K


  • Fully compliant with DisplayPort 1.2 revision


  • Supports HDMI 4K @ 30 Hz


The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.


With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.


For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.


To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).


The DP2HD4KS is backed by a 2-year StarTech.com warranty, and lifetime technical support.


The StarTech.com Advantage
  • Prepare for the next generation of displays, with support for Ultra HD 4K video
  • Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
  • Easy to carry as a laptop accessory, with a compact design and no external power adapter needed

Applications
  • Connect a DisplayPort 1.2 video source to a 4K HDMI display
  • Carry with your laptop for BYOD office applications
  • Extend your Desktop onto a secondary HDMI display using an available DisplayPort port

Warranty Information

Warranty

2 Years

Hardware

Adapter Style

Adapter

Audio

Yes

Converter Type

Active

Industry Standards

DPCP (DisplayPort Content Protection)

HDCP (High Definition Content Protection)

DisplayPort 1.2

HDMI 1.4

Ports

1

Performance

Audio Specifications

7.1 surround sound

Maximum Digital Resolutions

4K x 2K @ 30 Hz

Supported Resolutions

4k x 2K (Ultra HD)

1920x1200

1920x1080 (1080p)

1280x720 (720p)

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - DisplayPort (20 pin) Male

Connector B

1 - HDMI (19 pin) Female

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-10°C to 80°C (14°F to 176°F)

Physical Characteristics

Cable Length

5.9 in [150 mm]

Product Height

0.4 in [11 mm]

Product Length

2.5 in [64 mm]

Product Weight

0.4 oz [12 g]

Product Width

0.8 in [21 mm]

Packaging Information

Shipping (Package) Weight

1.3 oz [36 g]

What's in the Box

Included in Package

1 - DisplayPort® to HDMI® Active Adapter



DisplayPort# to HDMI® 4K Audio / Video Converter # DP 1.2 to HDMI Active Adapter for Desktop / Laptop Computers # 4K 30 H


Brand Name: StarTech.com
Cable Length: 14.99 cm
Cable Type: DisplayPort/HDMI
Connector on First End: 1 x DisplayPort Male Digital A
Connector on Second End: 1 x HDMI Female Digital Audio/
Packaged Quantity: 1
Product Type: A/V Cable


Basic

Brand Name:

StarTech.com

Cable Length:

14.99 cm

Cable Type:

DisplayPort/HDMI

Connector on First End:

1 x DisplayPort Male Digital A

Connector on Second End:

1 x HDMI Female Digital Audio/

Packaged Quantity:

1

Product Type:

A/V Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

DP2HD4KS

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

DisplayPort to HDMI Active Adapter

Product Type:

A/V Cable
Miscellaneous

Compatibility:
HP EliteBook Notebooks:
  • 8570p
  • 8470p
Physical Characteristics


Weight (Approximate):

11.3 g
Technical Information

Cable Length:

14.99 cm

Cable Type:

DisplayPort/HDMI

Conductor:

Copper

Connector on First End:

1 x 20-pin DisplayPort Male DisplayPort 1.2 Digital Audio/Video

Connector on Second End:

1 x 19-pin HDMI Female HDMI 1.4 Digital Audio/Video

Device Supported:

Audio/Video Device

Monitor

Notebook

Features:

Active
Warranty

Limited Warranty:

2 Year
