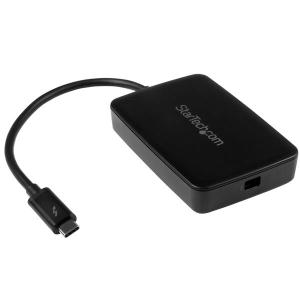

Startech Thunderbolt 3 to Thunderbolt Adapter - Windows and Mac TBT3TBTADAP

Features
tbt3tbtadap thunderbolt type connector adapter
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

TBT3TBTADAP




Use first-generation Thunderbolt and Thunderbolt 2 devices with your new Thunderbolt 3 computer


  • Cost-effective solution for connecting older Thunderbolt peripherals to newer Thunderbolt 3 laptops or computers


  • Compatible with first-generation Thunderbolt and Thunderbolt 2 devices


  • Thunderbolt Certified


  • Supplies power for bus-powered devices


With this adapter, you can connect Windows and Mac based Thunderbolt™ 3 computers to older Thunderbolt devices, such as external hard drives, Thunderbolt displays, and older Thunderbolt capable Mac computers.

A Thunderbolt 3 laptop connected to a Thunderbolt 2 drive enclosure, using the TBT3TBTADAP adapter


Because this adapter is backward compatible, you can connect to first-generation Thunderbolt devices at 10Gbps speed. With Thunderbolt 2 devices, you can connect at 20Gbps. The adapter satisfies all requirements for bi-directional data transfers and simultaneous power for bus-powered devices.

Thunderbolt 3 Logo


The TBT3TBTADAP is backed by a 2-year warranty for guaranteed reliability.

Learn more about Thunderbolt

Your computer’s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:

  • BIOS
  • Thunderbolt firmware
  • Thunderbolt 3 controller drivers
  • Thunderbolt 3 software

The required updates will vary depending on your computer.

For an up-to-date list of affected computers and instructions, visit http://thunderbolttechnology.net/updates. If your manufacturer isn’t listed on the Thunderbolt website, contact your manufacturer.


Applications
  • Connect Windows and Mac based Thunderbolt 3 computers to older Thunderbolt devices, such as external hard drives, Thunderbolt displays, and older Thunderbolt capable Mac computers

Warranty Information

Warranty
2 Years

Hardware

Cable Jacket Type
PVC - Polyvinyl Chloride

Cable Shield Type
Aluminum-Mylar Foil with Braid

Connector Plating
Nickel

Connector(s)

Connector A
1 - Thunderbolt™ 3 USB-C (24-pin) Male

Connector B
1 - Thunderbolt™ 2 (20 pin) Female

Software

OS Compatibility
Windows 10 (32-bit or 64-bit), Windows 8.1 (64-bit only), macOS Sierra (10.12)

Special Notes / Requirements

Note
This adapter is compatible with Thunderbolt™ displays only. It will not work with Mini DisplayPort (mDP) or DisplayPort (DP) monitors.

Any host system that doesn’t provide the full 15W of bus power won’t work with this device. Consult the manufacturer of your host system to determine how much bus power your host system provides.

Physical Characteristics

Cable Length
7.9 in [200 mm]

Color
Black

Product Height
0.6 in [16 mm]

Product Length
11 in [280 mm]

Product Weight
2.3 oz [64 g]

Product Width
2.3 in [59 mm]

Packaging Information

Shipping (Package) Weight
3 oz [86 g]

What's in the Box

Included in Package
1 - Thunderbolt™ 3 to Thunderbolt Adapter



3 to Thunderbolt Adapter


Brand Name: StarTech.com
Cable Type: Thunderbolt 2/Thunderbolt 3
Colour: Black
Connector on First End: 1 x Type C Male Thunderbolt 3
Connector on Second End: 1 x Female Thunderbolt 2
Packaged Quantity: 1
Product Type: Data Transfer Cable


Basic

Brand Name:
StarTech.com

Cable Type:
Thunderbolt 2/Thunderbolt 3

Colour:
Black

Connector on First End:
1 x Type C Male Thunderbolt 3

Connector on Second End:
1 x Female Thunderbolt 2

Packaged Quantity:
1

Product Type:
Data Transfer Cable
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
TBT3TBTADAP

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Marketing Content:
With this adapter, you can connect newer Windows based Thunderbolt 3 computers to older Thunderbolt devices, such as external hard drives, Thunderbolt displays, and older Thunderbolt capable Mac computers.

Packaged Quantity:
1

Product Name:
Thunderbolt 3 to Thunderbolt Adapter

Product Type:
Data Transfer Cable
Physical Characteristics

Colour:
Black


Weight (Approximate):

29.5 g
Technical Information

Cable Type:
Thunderbolt 2/Thunderbolt 3

Connector Plating:
Nickel Plated

Connector on First End:
1 x 24-pin Type C Male Thunderbolt 3

Connector on Second End:
1 x 20-pin Female Thunderbolt 2

Data Transfer Rate:
2.50 GB/s

Device Supported:
Hard Drive

Printer

Storage Drive

Shielding:
Yes
Warranty

Limited Warranty:
2 Year
