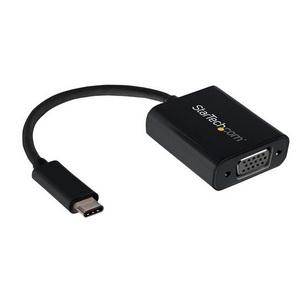

Startech USB-C to VGA Adapter CDP2VGA

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

CDP2VGA

Connect your MacBook, Chromebook or laptop with USB Type-C to a VGA monitor or projector

Hassle-free connection with the reversible USB-C connector
Maximum portability with a small footprint and lightweight design
Thunderbolt 3 port compatible
Crystal clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p

This USB-C™ to VGA video adapter lets you output high-definition VGA video from your USB Type-C™ device.

USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. The connector is featured on ultra-portable devices with USB 3.1 Gen 1. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel™. It's also compatible with Thunderbolt™ 3 ports.

Portable convenience

This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design, which makes it the perfect accessory to carry with your MacBook or Chromebook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Hassle-free connection with USB Type-C

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always work, saving you the hassle and embarrassment of struggling with your device when you're trying to present.

Crystal clear picture quality

The adapter supports video resolutions up to 1920x1200 or 1080p. You’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your USB Type-C connection to deliver every detail in stunning high-definition.

The CDP2VGA is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Note: Your USB-C equipped device must support video to work with this adapter. The adapter will not output digitally encrypted content.

Applications

Keep the adapter with you while traveling, to connect to any VGA monitor or projector you come across
Connect your BYOD MacBook or Chromebook to a provided VGA display at work
Walk into any boardroom with your USB-C laptop ready to present
Connect a VGA display to your USB-C laptop to use as a secondary monitor

Warranty Information
Warranty	2 Years
Hardware
Converter Type	Adapters
Output Signal	VGA
Ports	1
Performance
Maximum Analog Resolutions	1920x1200 or 1080p
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B	1 - VGA (15 pin, High Density D-Sub) Female Output
Power
Power Source	USB-Powered
Environmental
Humidity	25% to 85% RH Non-Condensing
Operating Temperature	5°C to 35°C (41°F to 95°F)
Storage Temperature	5°C to 35°C (41°F to 95°F)
Physical Characteristics
Color	Black
Product Height	0.6 in [14 mm]
Product Length	7.1 in [180 mm]
Product Weight	0.9 oz [26 g]
Product Width	1.5 in [37 mm]
Packaging Information
Shipping (Package) Weight	1.1 oz [30 g]
What's in the Box
Included in Package	1 - USB-C to VGA adapter

USB-C to VGA adapter - USB Type-C to VGA Video Converter - USB 3.1 Type-C to VGA Video Adapter - USB 2.0 Type-C to VGA Video Converter - USB 3.0 Type-C to VGA Adapter

Brand Name: StarTech.com

Cable Type: USB/VGA

Colour: Black

Connector on First End: 1 x HD-15 Female VGA

Connector on Second End: 1 x Type C Male USB

Packaged Quantity: 1

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Type:	USB/VGA
Colour:	Black
Connector on First End:	1 x HD-15 Female VGA
Connector on Second End:	1 x Type C Male USB
Packaged Quantity:	1
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	CDP2VGA
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	This USB-C to VGA video adapter lets you output high-definition VGA video from your USB Type-C device. USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. The connector is featured on ultra-portable devices with USB 3.1 Gen 1. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel. It's also compatible with Thunderbolt 3 ports.
Packaged Quantity:	1
Product Name:	USB-C to VGA Adapter - USB Type-C to VGA Video Converter
Product Type:	Video Cable

Physical Characteristics
Colour:	Black
Weight (Approximate):	26 g

Technical Information
Cable Type:	USB/VGA
Connector on First End:	1 x 15-pin HD-15 Female VGA
Connector on Second End:	1 x 24-pin Type C Male USB 3.1 USB
Device Supported:	Chromebook
	MacBook
	Monitor
	Notebook
	Projector
	TV
	Video Device
Features:	Lightweight
	Reversible
Supported Resolution:	1920 x 1200

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 536878

Vendor Part No CDP2VGA

UPC/EAN Number 065030862608
