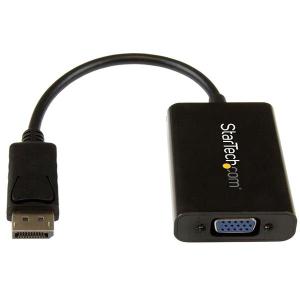

Startech DisplayPort to VGA Adapter with Audio DP2VGAA

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

DP2VGAA




Connect your PC to a VGA display and a discrete 3.5mm audio output


  • Group your VGA and audio ports together, to ensure they’re all accessible when you need them


  • Substitute a damaged or blocked audio port by connecting your audio directly through the adapter


  • Provide crystal-clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p


  • Maximum portability with a small footprint and lightweight design


This unique DisplayPort™ to VGA adapter is equipped with a built-in audio port which lets you connect DisplayPort equipped devices, such as an HP® EliteBook Folio 9470m laptop, to a VGA display or projector with audio.


Share your presentations and videos


Because most boardrooms are set up differently, the length of cables available in each room varies. Not all laptops have the DisplayPort (DP) and audio ports positioned on the same side, which can become awkward when you’re trying to deliver your presentations. It can also mean that some ports may be just out of reach during a meeting.


This convenient adapter positions your audio and video ports on the same side of your laptop, to ensure that all of the ports you need are accessible when you need them.


Substitute for a damaged audio port


If the audio port on your mobile device is damaged or blocked by other connections, this convenient adapter guarantees that you’ll always have all of the ports you need for every presentation. By connecting audio to your laptop through the adapter, you can be prepared for any situation.


In order to use the audio function of the adapter you need to power the adapter through a USB port on your laptop, or through a charge port on a USB grommet. Simply plug a Micro USB cable from the adapter into the USB port and audio will be available when you deliver your presentation.


Create a clutter-free environment


The adapter can also be used for connecting your laptop or desktop computer to your monitor and speakers. The adapter and connected cables can be placed nicely at the back of your monitor to create a tidy setup between all of your devices.


Arrive prepared, wherever you go


This DisplayPort to VGA adapter is extremely portable with a lightweight, small-footprint design. It’s the perfect accessory to carry with your mobile devices, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes the adapter ideal for BYOD (Bring Your Own Device) applications at the office.


It also enables you to arrive prepared when you’re presenting to a potential client, teaching off-site, or traveling to a meet with a customer.


The DP2VGAA is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Applications
  • Connect a VGA monitor or projector to a DisplayPort equipped device, while providing audio for your video presentations
  • Connect a VGA display to your DisplayPort laptop to use as a secondary monitor
  • Keep the adapter with you while traveling, to connect to any VGA monitor or projector you come across
  • Walk into any boardroom with your DisplayPort laptop or tablet and be ready to present

Warranty Information

Warranty

2 Years

Hardware

Adapter Style

Adapters

Audio

Yes

Converter Type

Active

Performance

Audio Specifications

2-channel stereo (3.5mm)

Maximum Analog Resolutions

1920x1200 / 1080p (output)

Maximum Digital Resolutions

1920x1200 / 1080p (input)

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - DisplayPort (20 pin) Male Input

Connector B

1 - VGA (15 pin, High Density D-Sub) Female Output

1 - 3.5 mm Mini-Jack (3 Position) Female Output

Connector Type(s)

1 - USB Micro-B (5 pin) Female Input

Power

Power Source

USB-Powered

Environmental

Humidity

40%~50%RH

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-10°C to 55°C (14°F to 131°F)

Physical Characteristics

Color

Black

Product Height

0.7 in [17 mm]

Product Length

2.6 in [67 mm]

Product Weight

1.7 oz [48 g]

Product Width

1.7 in [42 mm]

Packaging Information

Shipping (Package) Weight

2.3 oz [64 g]

What's in the Box

Included in Package

1 - DisplayPort to VGA adapter

1 - 0.25m Micro USB cable



DisplayPort to VGA Adapter with Audio


Brand Name: StarTech.com
Cable Type: DisplayPort/Mini-phone/USB/VGA
Colour: Black
Connector on First End: 1 x DisplayPort Male Digital A
Connector on Second End: 1 x HD-15 Female VGA
Connector on Second End: 1 x Mini-phone Female Audio
Connector on Second End: 1 x Type B Female Micro USB
Packaged Quantity: 1
Product Type: A/V Cable


Basic

Brand Name:

StarTech.com

Cable Type:

DisplayPort/Mini-phone/USB/VGA

Colour:

Black

Connector on First End:

1 x DisplayPort Male Digital A

Connector on Second End:

1 x HD-15 Female VGA

1 x Mini-phone Female Audio

1 x Type B Female Micro USB

Packaged Quantity:

1

Product Type:

A/V Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

DP2VGAA

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

DisplayPort to VGA Adapter with Audio - DP to VGA Converter - 1920x1200

Product Type:

A/V Cable
Miscellaneous

Compatibility:

HP EliteBook Folio 9470m laptop
Physical Characteristics

Colour:

Black


Weight (Approximate):

59.5 g
Technical Information

Cable Type:

DisplayPort/Mini-phone/USB/VGA

Connector on First End:

1 x 20-pin DisplayPort Male Digital Audio/Video

Connector on Second End:

1 x 15-pin HD-15 Female VGA

1 x 5-pin Type B Female Micro USB

1 x Mini-phone Female Audio

Device Supported:

Monitor

Projector

Speaker

Tablet

Features:

Active

Supported Resolution:

1900 x 1200
