Startech 2m Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k MDP2DPMM2M

Features

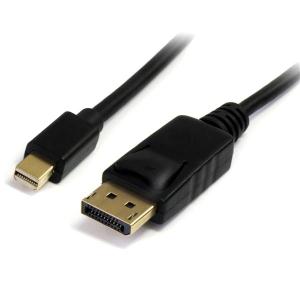

mdp2dpmm2m displayport mini cable connector
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

MDP2DPMM2M




Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor


  • High-resolution support of up to 4k x 2k


  • Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps


  • Designed and manufactured to DisplayPort 1.2 standards


The MDP2DPMM2M 2m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.


The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.


The MDP2DPMM2M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.


The StarTech.com Advantage
  • Latching DisplayPort connector prevents accidental disconnection
  • Cost-effective solution for adding a standard DisplayPort connection to your Mini Displayport-equipped PC or Mac®
  • Guaranteed reliability

Applications
  • Connect a DisplayPort monitor or projector to devices equipped with a Mini DisplayPort connection port

Warranty Information

Warranty
Lifetime

Hardware

Cable Jacket Type
PVC - Polyvinyl Chloride

Cable Shield Type
Aluminum-Mylar Foil with Braid

Connector Plating
Nickel

Fire Rating
CMG Rated (General Purpose)

Number of Conductors
19

Connector(s)

Connector A
1 - Mini-DisplayPort (20 pin) Male

Connector B
1 - DisplayPort (20 pin) Male

Physical Characteristics

Cable Length
6.6 ft [2 m]

Color
Black

Connector Style
Latching

Product Length
78.7 in [2000 mm]

Product Weight
2.1 oz [60 g]

Wire Gauge
32 AWG

Packaging Information

Package Quantity
1

Shipping (Package) Weight
2.8 oz [80 g]

What's in the Box

Included in Package
1 - 2m Mini DisplayPort to DisplayPort 1.2 Adapter Cable M-M



2m Mini DisplayPort to DisplayPort Adapter Cable - M/M - 2m DP to Mini DP - 2m DisplayPort to Mini DisplayPort


Brand Name: StarTech.com
Cable Length: 2 m
Cable Type: DisplayPort/Mini DisplayPort
Colour: Black
Connector on First End: 1 x Mini DisplayPort Male Digi
Connector on Second End: 1 x DisplayPort Male Digital A
Packaged Quantity: 1
Product Type: A/V Cable


Basic

Brand Name:
StarTech.com

Cable Length:
2 m

Cable Type:
DisplayPort/Mini DisplayPort

Colour:
Black

Connector on First End:
1 x Mini DisplayPort Male Digi

Connector on Second End:
1 x DisplayPort Male Digital A

Packaged Quantity:
1

Product Type:
A/V Cable
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
MDP2DPMM2M

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Marketing Content:
The MDP2DPMM2M 2m Mini DisplayPort to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop to an HDTV, monitor or projector that uses a standard DisplayPort connection.

Packaged Quantity:
1

Packing:
Bagged

Product Name:
2m Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k

Product Type:
A/V Cable
Lock

Cable Length:
2 m
Miscellaneous

Device Supported:
Monitor

Green Compliance Certificate/Authority:
RoHS

Green Compliant:
Yes
Physical Characteristics

Colour:
Black

Connector Plating:
Nickel Plated

Material:
Polyvinyl Chloride (PVC) - Jacket


Weight (Approximate):

87 g
Product Information

Cable Length:
2 m

Device Supported:
Monitor

Packaged Quantity:
1
Technical Information

Cable Length:
2 m

Cable Type:
DisplayPort/Mini DisplayPort

Conductor:
Copper

Connector Plating:
Nickel Plated

Connector on First End:
1 x Mini DisplayPort Male Digital Audio/Video

Connector on Second End:
1 x DisplayPort Male Digital Audio/Video

Device Supported:
Monitor

Jacket Type:
CMG

Shielding:
Yes
Warranty

Limited Warranty:
Lifetime
Print this page
Information
SKU/Item No536858
Vendor Part NoMDP2DPMM2M
UPC/EAN Number065030844468
