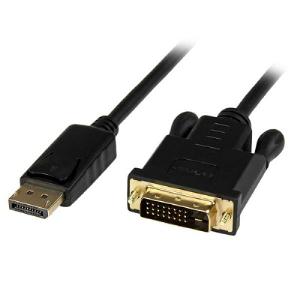

Startech 6 ft DisplayPort to DVI Active Adapter Converter Cable - DP to DVI 1920x1200 - Black DP2DVIMM6BS

Features

dp2dvimm6bs displayport cable video active

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

DP2DVIMM6BS

Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable

Active DisplayPort to DVI conversion
1x Male DisplayPort connector, 1x Male DVI connector
Supports resolutions up to 1920 x 1200
Plug-and-play Installation

The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.

For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.

The DP2DVIMM6BS is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Hassle-free installation with cable-style adapter enabling you to connect your DisplayPort source directly to a DVI display with no additional video cable required
Save upgrade costs by connecting your DisplayPort computer to a DVI monitor or Projector

Applications

Use with single-mode DisplayPort video outputs that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity video cards
Connect your DVI display device (monitor, projector) directly to a DisplayPort output device
Ideal for using your DVI monitor as a secondary display

Warranty Information
Warranty	2 Years
Hardware
Adapter Style	Cable Adapter
Audio	No
Chipset ID	PS171A
Converter Type	Active
Performance
Maximum Cable Length	6 ft [1.8 m]
Maximum Digital Resolutions	1920 x 1200
Supported Resolutions	1024 x 768 1280 x 720 1920 x 1080 1920 x 1200
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - DisplayPort (20 pin) Latching Male
Connector B	1 - DVI-D (25 pin) Male
Special Notes / Requirements
System and Cable Requirements	Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
	This adapter is not compatible for use with the Apple Cinema Display.
Environmental
Humidity	40%-85%RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Cable Length	6.1 ft [1.9 m]
Color	Black
Product Height	0.6 in [15 mm]
Product Length	72.8 in [1850 mm]
Product Weight	4 oz [113 g]
Product Width	1.6 in [40 mm]
Packaging Information
Shipping (Package) Weight	4.3 oz [123 g]
What's in the Box
Included in Package	1 - Active DisplayPort to DVI Adapter

6ft 1.8M DisplayPort to DVI Active Adapter Converter Cable 6 foot Active DP to DVI MM Cable for PC 1.8 meter Active DisplayPort to DVI Adapter Converter Cable 1920x1200 Black

Brand Name: StarTech.com

Cable Length: 1.83 m

Cable Type: DisplayPort/DVI

Colour: Black

Connector on First End: 1 x DisplayPort Male Digital A

Connector on Second End: 1 x DVI-D Male Digital Video

Packaged Quantity: 1

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Length:	1.83 m
Cable Type:	DisplayPort/DVI
Colour:	Black
Connector on First End:	1 x DisplayPort Male Digital A
Connector on Second End:	1 x DVI-D Male Digital Video
Packaged Quantity:	1
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	DP2DVIMM6BS
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.
Packaged Quantity:	1
Product Name:	DisplayPort/DVI Video Cable
Product Type:	Video Cable

Miscellaneous
Certifications & Standards:	CE FCC
Environmental Certification:	RoHS
Environmentally Friendly:	Yes

Physical Characteristics
Colour:	Black
Weight (Approximate):	119.1 g

Technical Information
Cable Length:	1.83 m
Cable Type:	DisplayPort/DVI
Conductor:	Copper
Connector on First End:	1 x 20-pin DisplayPort Male Digital Audio/Video
Connector on Second End:	1 x 25-pin DVI-D Male Digital Video
Device Supported:	Graphics Card
	Monitor
	Notebook
	Projector
	TV
	Video Device
Features:	Active

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 536849

Vendor Part No DP2DVIMM6BS

UPC/EAN Number 065030854917
