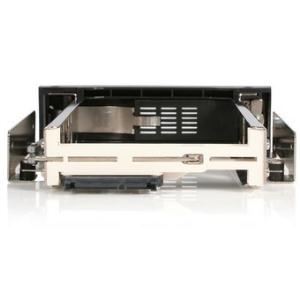

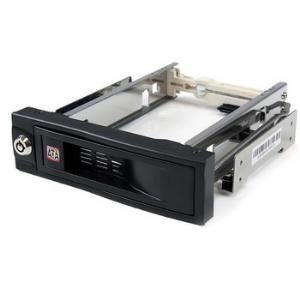

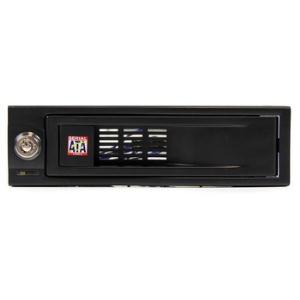

Startech 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive HSB100SATBK

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

HSB100SATBK




Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay


  • Holds a 3.5" SATA drive in a front accessible 5.25" bay



  • Trayless Design:
    drives are not mounted into separate trays/enclosures


  • Lockable drive bay


This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.


The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.


To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.


Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.


With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.


Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.


The StarTech.com Advantage
  • Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
  • Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
  • Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay

Applications
  • Add additional hot-swap bays to a server or workstation computer
  • Replace or upgrade old IDE backplane with a SATA backplane
  • System builders who need to image drives quickly and efficiently
  • Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
  • Be able to replace/remove individual drives from a storage array with minimal or no system down time

Warranty Information

Warranty

2 Years

Hardware

Compatible Drive Types

SATA

Drive Size

3.5in

Key Lock

Yes

Number of Drives

1

Performance

Hot Swap Capability

Yes

Insertion Rating

50,000+ Cycles

Temperature Alarm

No

Connector(s)

Drive Connectors

1 - SATA (7 pin, Data) Receptacle

1 - SATA Power (15 pin) Receptacle

Host Connectors

1 - SATA (7 pin, Data) Plug

1 - SATA Power (15 pin) Plug

Software

OS Compatibility

OS independent; No software or drivers required

Indicators

LED Indicators

1 - Drive Power/Activity

Environmental

Humidity

Operating - 5~85% RH Non-condensing

Storage - 5~95%

Operating Temperature

0°C to 50°C (32°F to 122°F)

Physical Characteristics

Color

Black

Enclosure Type

Aluminum and Plastic

Product Height

1.7 in [42 mm]

Product Length

7.2 in [184 mm]

Product Weight

10.8 oz [305 g]

Product Width

5.9 in [149 mm]

Packaging Information

Shipping (Package) Weight

1 lb [0.4 kg]

What's in the Box

Included in Package

1 - 5.25" Tray-Less SATA Hot-Swap Bay

2 - Key

1 - Screw Kit

1 - Instruction Manual



Holds a 3.5" SATA drive in a front accessible 5.25" bay Trayless design: drives are not mounted into separate trays/enclosures Lockable drive bay This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes. The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.
