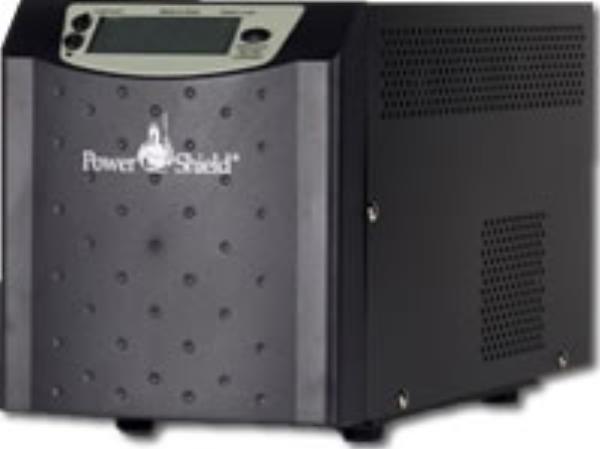

Powershield Commander 2000VA Pure Sine Wave Line Interactiv PSCM2000

PSCM2000

• Use Power Shield Commander to protect:
  • Servers
  • Gates
  • Copy Machines
  • Laser Printers
  • Applications that require remote connectivity

• Features:
  • Works for gates, camera surveillance, computers, telephone systems, servers, and other sensitive electronic equipment.
  • Best specifications in its class
  • Intelligent real time battery backup display
  • Smart 5[[][%]] AVR with 2 step buck and boost
  • Intelligent double stage charger control which translates to a faster recharge rate
  • Generator compatible
  • Highest Joule Rating - 1558 Joules of surge protection

• Includes:
  • Software for Win95/98/NT/2000/XP & Linux

• Specifications:
  • Input:
    • Input Voltage range: 180 - 300Vac
    • Frequency: 47Hz - 65Hz, 50/60Hz auto-sensing
  • Output:
    • Output Voltage: 240 +/- 5[[][%]] (2 step buck and boost)
    • Output Voltage Regulation: Nominal Voltage +/- 5[[][%]] or (optional +/-8[[][%]] AVR for wide input up to 35[[][%]])
    • Output Voltage Selectable: 200Vac or 220Vac or 230Vac or 240Vac
    • Frequency 47 - 55Hz for 50Hz nominal, 56Hz - 65Hz for 60Hz nominal or (battery mode 50Hz +/- 1[[][%]])
    • Wave Form - AC Mode: Pure Sine Wave
    • Wave Form - Battery Mode: Pure Sine Wave
    • Transfer Time: <3ms
    • Load Crest Factor: 3:1
    • Australian sockets: 2
    • 10A IEC outlets: 3
    • 15A IEC outlets: 0
  • Battery:
    • Battery Type: Sealed maintenance free lead acid batteries (12V*7.2AH)
    • Number of Batteries: 4
    • Charger: Smart CPU controls over current, over voltage, thermal protection and battery condition
    • Recharge Time: Less than 3 hours to 90[[][%]] (smart two mode pulse charging)
    • Typical Backup: Half load 14 minutes, full load 5 minutes
  • Protection:
    • Input Surge Protection: 1581Joules/40,000Amps
    • Short Circuit: 2000VA
    • Safety: EN 50091-1-1
    • Noise Filtering: Class B, EN 50091-2, FCC part 15, IEC1000-2-2, C-Tick (Full time EMI-RFI filtering)
    • Telephone / Modem / LAN: RJ45, Full time telephone, modem or LAN protection. C-tick, A-tick
  • Comms & Management:
    • Software: PowerShield UPSilon 2000 compatible with Windows, Linux, Novell & Unix
    • Ports: USB & RS232 as standard (Optional - DB9)
    • SNMP: Optional
    • AS400 Dry contact: Optional
    • LCD Display: Sophisticated LCD - input voltage, output voltage, frequency, load, battery status, smart remaining backup time
    • Audible Alarm: Alarm - on battery, overload, short circuit, over temperature, faulty battery, abnormal operation
  • Characteristics:
    • Audible Noise: < 40dB
    • Temperature: 0 - 40oC
    • Humidity: 0 - 95[[][%]] (non-condensing)
    • Weight (Net/Gross): 26/26
    • Dimensions (D x W x H): 510 x 200 x 180mm
