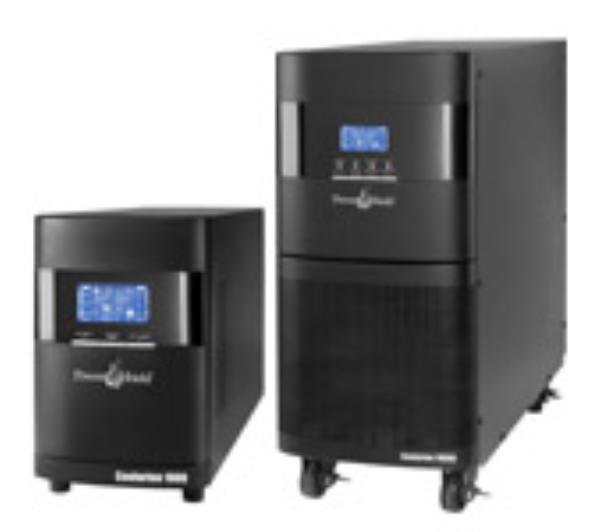

Powershield Centurion 3000VA 2400W, Online Double Conversion PSCE3000

PSCE3000

• Features:
  • True Online Double Conversion
  • Wide input voltage range (110-300 VAC)
  • 15 Amp AC power plug (not standard 10 Amp)
  • Input power factor correction 0.98
  • 50Hz/60Hz frequency converter mode
  • Programmable power outlets
  • Emergency power off function (EPO)
  • Optional Eco-mode operation for energy saving
  • Generator compatible
  • Backup time for all models is easily extended by
  • simply plugging additional battery banks
  • Battery banks are available with internal charger
  • to enable fast recharge even with large battery banks
  • USB, RS232, SNMP and AS400 multiple
  • Communications available
  • External maintenance bypass available for all models
  • N+X parallel redundancy available for 6K/10K model
  • Monitoring and Shutdown Software included

• Specifications:
  • Model: PSCE3000
  • Capacity: 3000VA / 2400W
• Input:
  • Voltage Range:
    • Low Line Transfer 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 [[][%]]
    • (based on load percentage 100[[][%]] - 80 [[][%]] / 80 [[][%]] - 70 [[][%]] / 70 - 60 [[][%]] / 60 [[][%]] - 0)
    • Low Line Comeback: 175 VAC ± 5 [[][%]]
    • High Line Transfer: 300 VAC ± 5 [[][%]]
    • High Line Comeback: 47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz
  • Frequency Range: 47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz
  • Phase: Single phase with ground
  • Power Factor: 0.98
• Output:
  • AC Voltage Regulation (Batt. Mode): ± 3[[][%]]
  • Frequency Range (Synchronized Range): 48 ~ 52Hz or 57 ~ 63Hz
  • Frequency Range (Batt. Mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
  • Current Crest Ratio 3:1
  • Harmonic Distortion: 4 [[][%]] THD (Linear Load) & 7 [[][%]] THD (Non-linear Load)
  • Transfer Time:
    • AC Mode to Batt. Mode: Zero
    • Inverter to Bypass: 4 ms
  • Waveform (Batt. Mode): Pure Sinewave
• Efficiency:
  • AC Mode: 88[[][%]]
  • Battery Mode: 83[[][%]]
• Battery:
  • Standard Model:
  • Battery Type: 12 V / 9 AH
  • Numbers: 6
  • Typical Recharge Time: 4 hours recover to 90[[][%]] capacity
  • Charging Current (max.): 1.0 A
  • Charging Voltage: 82.1 VDC ± 1[[][%]]
• Indicators:
  • LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
  • LED Panel: UPS status, Load level, Battery level, and Fault indicators
• Alarm:
  • Battery Mode: Sounding every 4 seconds
  • Low Battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding
• Physical:
  • Dimension (D X W X Hmm): 387.5 X 190 X 318
  • Net Weight (kgs): 30
• Environment:
  • Operation Humidity: 20-90 [[][%]] RH @ 0- 40°C (non-condensing)
  • Noise Level Less than 45dBA @ 1 Meter Less than 55dB @ 1 Meter
• Management:
  • Smart RS232/ USB: PowerShield NetGuard Software - Supports Windows Based Operating Systems, Linux & Unix
  • Optional SNMP: Power management from SNMP manager and web browser (Intelligent Slot)
  • AS400: AS400 dry contact communication card (Intelligent Slot)
