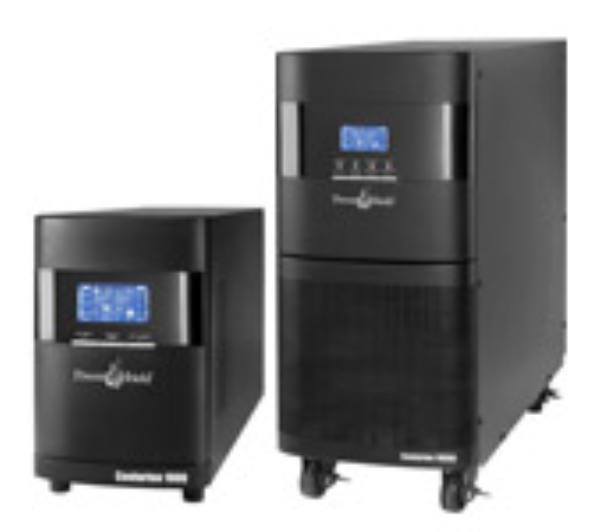

Powershield Centurion 1000VA 800W, Online Double Conversion PSCE1000

PSCE1000

• Features:
  • True Online Double Conversion
  • Wide input voltage range (110-300 VAC)
  • Input power factor correction 0.98
  • 50Hz/60Hz frequency converter mode
  • Programmable power outlets
  • Emergency power off function (EPO)
  • Optional Eco-mode operation for energy saving
  • Generator compatible
  • Backup time for all models is easily extended by
  • simply plugging additional battery banks
  • Battery banks are available with internal charger
  • to enable fast recharge even with large battery banks
  • USB, RS232, SNMP and AS400 multiple
  • Communications available
  • External maintenance bypass available for all models
  • N+X parallel redundancy available for 6K/10K model
  • Monitoring and Shutdown Software included

• Specifications:
  • Model: PSCE1000
  • Capacity: 1000VA / 800W
  • Input:
    • Voltage Range:
      • Low Line Transfer 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 [[][%]]
      • (based on load percentage 100[[][%]] - 80 [[][%]] / 80 [[][%]] - 70 [[][%]] / 70 - 60 [[][%]] / 60 [[][%]] - 0)
      • Low Line Comeback: 175 VAC ± 5 [[][%]]
      • High Line Transfer: 300 VAC ± 5 [[][%]]
      • High Line Comeback: 47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz
    • Frequency Range: 47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz
    • Phase: Single phase with ground
    • Power Factor: 0.98
  • Output:
    • AC Voltage Regulation (Batt. Mode): ± 3[[][%]]
    • Frequency Range (Synchronized Range): 48 ~ 52Hz or 57 ~ 63Hz
    • Frequency Range (Batt. Mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
    • Current Crest Ratio 3:1
    • Harmonic Distortion: 3 [[][%]] THD (Linear Load) & 6 [[][%]] THD (Non-linear Load)
    • Transfer Time:
      • AC Mode to Batt. Mode: Zero
      • Inverter to Bypass: 4 ms
    • Waveform (Batt. Mode): Pure Sinewave
  • Efficiency:
    • AC Mode: 85[[][%]]
    • Battery Mode: 83[[][%]]
  • Battery:
    • Standard Model:
      • Battery Type: 12 V / 9 AH
      • Numbers: 3
      • Typical Recharge Time: 4 hours recover to 90[[][%]] capacity
      • Charging Current (max.): 1.0 A
      • Charging Voltage: 41.0 VDC ± 1[[][%]]
  • Indicators:
    • LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
    • LED Panel: UPS status, Load level, Battery level, and Fault indicators
  • Alarm:
    • Battery Mode: Sounding every 4 seconds
    • Low Battery: Sounding every second
    • Overload: Sounding twice every second
    • Fault: Continuously sounding
  • Physical:
    • Dimension (D X W X Hmm): 338.5 X 145 X 220
    • Net Weight (kgs): 14
  • Environment:
    • Operation Humidity: 20-90 [[][%]] RH @ 0- 40°C (non-condensing)
    • Noise Level Less than 45dBA @ 1 Meter Less than 55dB @ 1 Meter
  • Management:
    • Smart RS232/ USB: PowerShield NetGuard Software - Supports Windows Based Operating Systems, Linux & Unix
    • Optional SNMP: Power management from SNMP manager and web browser (Intelligent Slot)
    • AS400: AS400 dry contact communication card (Intelligent Slot)
