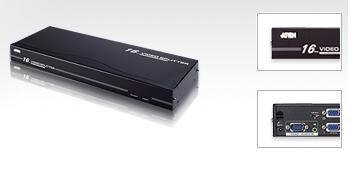

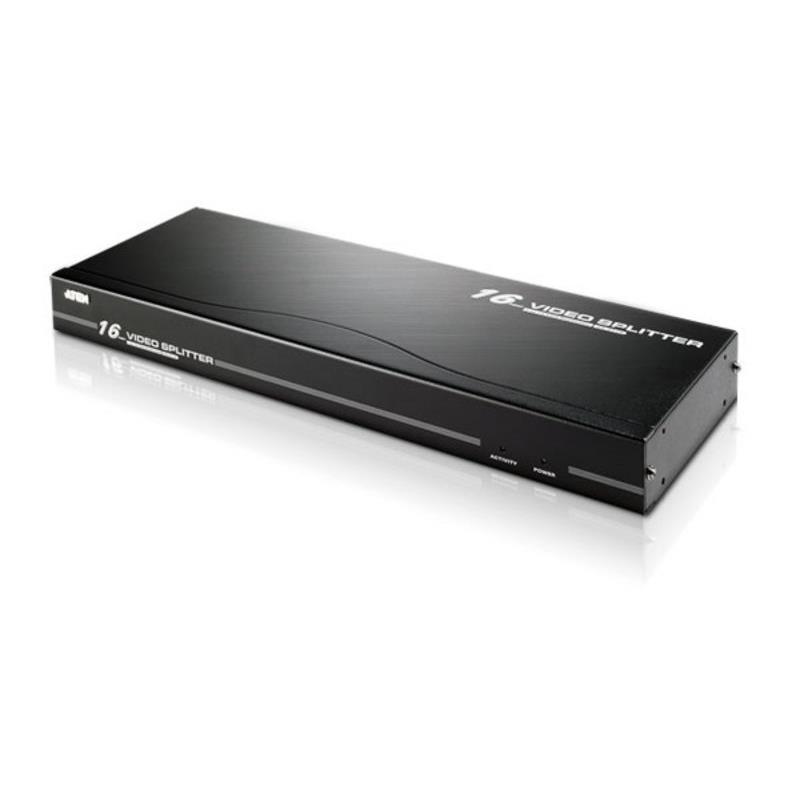

Aten VanCryst 16 Port VGA Video Splitter with Audio - 1920x1440@60Hz Max VS-0116

Features
vs-0116 video audio monitors aten
Click to view full size
splitter port them devices projectors
Click to view full size

(Pictures are For Illustration Purposes Only)

Aten/Altusen

Aten/Altusen's MPN:

VS-0116




Details:


The VS0116 16 Port Video Splitter with Audio duplicates and enhances the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.) Furthermore, it can be cascaded to additional ATEN video splitters to support hundreds of monitors.

/></p><h4>Specifications:</h4><ul> <li><strong>Display Connections:</strong> 16</li> <li><strong>Connectors:</strong></li> <ul> <li><strong>Video In:</strong> 1 x HDB-15 Male (Blue)</li> <li><strong>Audio In:</strong> 1 x Mini Stereo Jack Female (Green)</li> <li><strong>Video Out:</strong> 16 x HDB-15 Female (Blue)</li> <li><strong>Audio Out:</strong> 16 x Mini Stereo Jack Female (Green)</li> <li><strong>Power:</strong> 1 x DC Jack</li> </ul> <li><strong>Switch, Video Gain:</strong> 1 x Slide</li> <li><strong>LEDs:</strong></li> <ul> <li><strong>Power:</strong> 1 (Blue)</li> <li><strong>Activity:</strong> 1 (Green)</li> </ul> <li><strong>Video Bandwidth:</strong> 250MHz</li> <li><strong>Video:</strong> 1920 x 1440 @ 60Hz</li> <li><strong>Sync Range:</strong> Sync Positive / Negative</li> <li><strong>Signal Range:</strong> Up to 65m (210')</li> <li><strong>Power Consumption:</strong> DC5.3V, 3.3W (Max)</li> <li><strong>Environment:</strong></li> <ul> <li><strong>Operating Temp.</strong> 0 - 50°C</li> <li><strong>Storage Temp.</strong> -20 - 60°C</li> <li><strong>Humidity:</strong> 0 - 80% RH, Non-condensing</li> </ul> <li><strong>Physical Properties:</strong></li> <ul> <li><strong>Housing:</strong> Metal</li> <li><strong>Weight:</strong> 2.80 kg</li> <li><strong>Dimensions (LxWxH):</strong> 43.30 x 16.00 x 4.40cm (19

Print this page
Information
SKU/Item No497685
Vendor Part NoVS-0116
UPC/EAN Number
Our Stock **     (click for more info)
Price
$481.98
Buy Qty
QR 2D barcode QR 2D VS-0116
Product linkNo link
Manufacturer's linkAten/Altusen
Related Product(s)
Review Link(s)
* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock and Freight Information

Stock Information
 Our Qty in StockAvailability and ETA
Our own stock0Usually 1-3 days (when supplier has stock)
