APC Smart-UPS Srt 10000VA 230V SRT10KXLI

Features

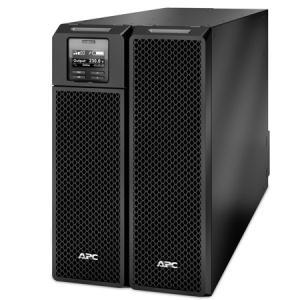

(Pictures are For Illustration Purposes Only)

APC/Schneider

APC/Schneider's MPN:

SRT10KXLI




APC Smart-UPS SRT 10000VA 230V


Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Brand Name: APC
Form Factor: Tower
Load Capacity (VA): 10000 VA
Load Capacity (Watt): 10 kW
Product Family: Smart-UPS On-Line
Product Type: Dual Conversion Online UPS
Receptacles: 1 x Hard Wire 3-wire (H N + G)
Receptacles: 3 x IEC Jumper
Receptacles: 4 x IEC 60320 C19
Receptacles: 6 x IEC 60320 C13



Battery Information


Backup/Run Time (Full Load):

3 Minute


Backup/Run Time (Half Load):

12 Minute

Battery Characteristics:

Maintenance-free, Sealed, Spill-proof

Battery Chemistry:

Sealed Lead Acid

Maximum Battery Recharge Time:

1.50 Hour

Number of Batteries:

2
Environmental Conditions

Sound Emission:

55 dB(A)

Temperature:

40°C

Thermal Dissipation:

2002 BTU/h
General Information

Brand Name:

APC

Manufacturer Part Number:

SRT10KXLI

Manufacturer Website Address:
http://www.apc.com

Manufacturer:

American Power Conversion Corp

Marketing Information:

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Product Line:

Smart-UPS On-Line

Product Name:

Smart-UPS SRT 10000VA 230V

Product Type:

Dual Conversion Online UPS
Interfaces/Ports


Network (Rj-45):

Yes

Total Number of Expansion Slots:

1

USB:

Yes
Miscellaneous

Certifications & Standards:
  • CE
  • CE Mark

Green Compliance Certificate/Authority:

REACH

RoHS

Green Compliant:

Yes

Package Contents:
  • Smart-UPS SRT 10000VA 230V
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Temperature Probe
  • USB Cable
  • Warranty Card
Physical Characteristics

Colour:

Black

Depth:

715 mm

Form Factor:

Tower

Height:

432 mm


Weight (Approximate):

111.82 kg

Width:

263 mm
Power Description

Input Voltage:

230 V AC


Load Capacity (Va):

10000 VA


Load Capacity (Watt):

10 kW

Output Voltage:

230 V AC

Surge Energy Rating:

480 J

Waveform Type:

Sine Wave
Technical Information

Bypass Switch:

Automatic & Manual

Emergency Power OFF:

Yes

Plug/Connector Type:

Hard Wire 3 wire (1PH+N+G)

Hard Wire 5-wire (3PH + N + G)

Protection Type:

Surge

Receptacles:

1 x Hard Wire 3-wire (H N + G)

3 x IEC Jumper

4 x IEC 60320 C19

6 x IEC 60320 C13
Warranty

Limited Warranty:

3 Year
Print this page
Information
SKU/Item No487648
Vendor Part NoSRT10KXLI
UPC/EAN Number731304304272
Our Stock **     (click for more info)
Price
$12,693.82
