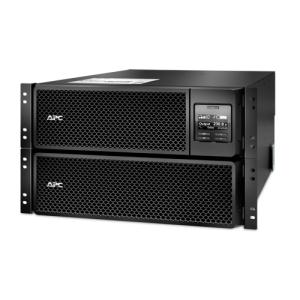

APC Smart-UPS Srt 8000VA RM 230V SRT8KRMXLI
Features
(Pictures are For Illustration Purposes Only)
APC/Schneider's MPN:
SRT8KRMXLI
APC Smart-UPS SRT 8000VA RM 230V
Backup/Run Time (Full Load) : 5 Minute
Backup/Run Time (Half Load) : 16 Minute
Brand Name : APC
Form Factor : Rack-mountable
Load Capacity (VA) : 8000 VA
Load Capacity (Watt) : 8000 W
Product Family : Smart-UPS On-Line
Product Type : Dual Conversion Online UPS
Rack Height : 6U
Receptacles : 1 x Hard Wire 3-wire (H N + G)
Receptacles : 3 x IEC Jumper
Receptacles : 4 x IEC 60320 C19
Receptacles : 6 x IEC 60320 C13
Battery Information
Backup/Run Time (Full Load) :
5 Minute
Backup/Run Time (Half Load) :
16 Minute
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Sealed Lead Acid
Hot Swappable:
Yes
Maximum Battery Recharge Time:
1.50 Hour
Number of Batteries:
2
Controls/Indicators
Status Indicators:
LED Indicators
Environmental Conditions
Sound Emission:
55 dB(A)
Temperature:
40°C
Thermal Dissipation:
1497 BTU/h
General Information
Brand Name:
APC
Manufacturer Part Number:
SRT8KRMXLI
Manufacturer Website Address:
http://www.apc.com
Manufacturer:
American Power Conversion Corp
Marketing Information:
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Line:
Smart-UPS On-Line
Product Name:
Smart-UPS SRT 8000VA RM 230V
Product Type:
Dual Conversion Online UPS
Interfaces/Ports
Network (Rj-45) :
Yes
Total Number of Expansion Slots:
1
USB:
Yes
Management
Alarm:
Battery Failure
Miscellaneous
Certifications & Standards:
Green Compliance Certificate/Authority:
RoHS
Green Compliant:
Yes
Package Contents:
Smart-UPS SRT 8000VA RM 230V
CD with Software
Documentation CD
Installation Guide
Rack Mounting Brackets
Rack Mounting Hardware
Rails Rack Mount Bracket
Temperature Probe
USB Cable
Warranty Card
Physical Characteristics
Colour:
Black
Depth:
715 mm
Form Factor:
Rack-mountable
Height:
263 mm
Rack Height:
6U
Weight (Approximate) :
111.82 kg
Width:
432 mm
Power Description
Circuit Breaker:
Yes
Input Voltage:
230 V AC
Load Capacity (Va) :
8000 VA
Load Capacity (Watt) :
8000 W
Output Voltage:
230 V AC
Surge Energy Rating:
480 J
Waveform Type:
Sine Wave
Technical Information
Bypass Switch:
Automatic & Manual
Internal
Emergency Power OFF:
Yes
Plug/Connector Type:
Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Protection Type:
Lightning
Spike
Surge
Receptacles:
1 x Hard Wire 3-wire (H N + G)
3 x IEC Jumper
4 x IEC 60320 C19
6 x IEC 60320 C13
Warranty
Limited Warranty:
3 Year
