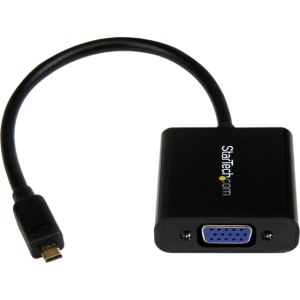

Startech Micro HDMI to VGA Adapter Converter for Smartphones / Ultrabook / Tablet - 1920x1080 MCHD2VGAE2

Features

mchd2vgae2 hdmi micro video device image 3

Click to view full size

startech type supported tablet projector

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

MCHD2VGAE2

Connect a Micro HDMI® equipped Smartphone or Tablet PC to your VGA Display, or Projector

Maximum resolution of 1920x1080 (1080p)
No external power adapter required

The MCHD2VGAE2 HDMI® Micro to VGA adapter/converter actively converts an HDMI® Micro video signal from your smartphone, Ultrabook, or tablet PC onto a VGA projector, or display. The Micro HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.

The HDMI Micro/VGA adapter supports video resolutions up to full 1080p, making it a convenient option for high-definition applications, and features a compact design with no external power source, which ensures a portable solution that's easy to carry as an accessory.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Simple plug and play adapter, for a quick and hassle-free setup
Compact design with no need for an external power adapter ensures a portable solution with a minimal footprint

Applications

Connect HDMI Micro-enabled devices such as your smartphone, Ultrabook or tablet PC to a VGA projector or display

Warranty Information
Warranty	2 Years
Hardware
Audio	No
Converter Type	Format Converter
Industry Standards	High Speed HDMI®
Ports	1
Performance
Maximum Analog Resolutions	1920x1200
Maximum Digital Resolutions	1920x1200
Supported Resolutions	1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - Micro HDMI (19 pin) Male Input
Connector B	1 - VGA (15 pin, High Density D-Sub) Female Output
Environmental
Humidity	40% to 85% RH Non-Condensing
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	0.6 in [15 mm]
Product Length	10 in [255 mm]
Product Weight	1.2 oz [33 g]
Product Width	1.8 in [45 mm]
Packaging Information
Shipping (Package) Weight	1.2 oz [33 g]
What's in the Box
Included in Package	1 - Micro HDMI® to VGA Converter Adapter

Micro HDMI to VGA Adapter Converter for Smartphones / Ultrabook / Tablet - 1920x1080 - M/F

Brand Name: StarTech.com

Cable Type: HDMI/VGA

Colour: Black

Connector on First End: 1 x HDMI (Micro Type D) Male D

Connector on Second End: 1 x HD-15 Female VGA

Packaged Quantity: 1

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Type:	HDMI/VGA
Colour:	Black
Connector on First End:	1 x HDMI (Micro Type D) Male D
Connector on Second End:	1 x HD-15 Female VGA
Packaged Quantity:	1
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	MCHD2VGAE2
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	MCHD2VGAE2 HDMI Micro to VGA adapter/converter actively converts an HDMI Micro video signal from your smartphone, Ultrabook, or tablet PC onto a VGA projector, or display.
Packaged Quantity:	1
Product Name:	HDMI/VGA Video Cable
Product Type:	Video Cable

Miscellaneous
Device Supported:	Video Device

Physical Characteristics
Colour:	Black
Material:	Plastic - Housing
Weight (Approximate):	34 g

Product Information
Device Supported:	Video Device
Packaged Quantity:	1

Technical Information
Cable Type:	HDMI/VGA
Conductor:	Copper
Connector on First End:	1 x HDMI (Micro Type D) Male Digital Audio/Video
Connector on Second End:	1 x HD-15 Female VGA
Device Supported:	Video Device

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 481749

Vendor Part No MCHD2VGAE2

UPC/EAN Number 065030850971
