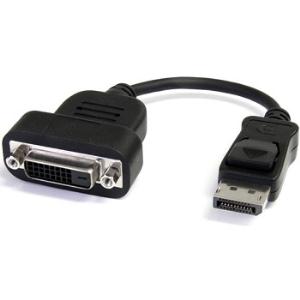

Startech DisplayPort to DVI Active Adapter DP2DVIS

Features

dp2dvis displayport monitor connector dvi-d

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

DP2DVIS

Connect a DVI monitor to a single-mode DisplayPort output from your computer

Supports resolutions up to 1920x1200
Supported on any DVI-D display including televisions and Apple Cinema Display HD
Latching DisplayPort connector

The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.

Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Active DisplayPort converter for DisplayPort video cards not capable of outputting DP++ (multi-mode) signals
Simple to use, small form-factor converter makes DisplayPort backward compatible with your DVI-D single link display
Latching DisplayPort connector ensures a solid connection

Applications

Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
Keep your existing DVI monitor to be used with your new DisplayPort computer or source
Great for using your DVI monitor as a secondary display
Perfect for larger format screens that use high DVI resolutions
Adapt from graphics cards that are not capable of outputting DP++ (multi-mode) signals

Warranty Information
Warranty	2 Years
Hardware
Adapter Style	Adapter
Audio	No
Converter Type	Active
Fire Rating	LSZH Rated (Low Smoke Zero Halogen)
Industry Standards	HDCP 1.3 DisplayPort 1.1a DDWG 1.0
Output Signal	DVI-D (DVI Digital)
Performance
Maximum Digital Resolutions	1920x1200
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - DisplayPort (20 pin) Latching Male
Connector B	1 - DVI-D (25 pin) Female
Environmental
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	0°C to 70°C (32°F to 158°F)
Physical Characteristics
Color	Black
Product Height	0.8 in [20 mm]
Product Length	7.9 in [200 mm]
Product Weight	2.5 oz [70 g]
Product Width	1.7 in [44 mm]
Packaging Information
Shipping (Package) Weight	0.2 lb [0.1 kg]
What's in the Box
Included in Package	1 - DisplayPort to DVI Adapter

DisplayPort to DVI Active Adapter - DP to DVI Active Converter

Brand Name: StarTech.com

Cable Length: 19.99 cm

Cable Type: DVI

Colour: Black

Connector on First End: 1 x DVI-D (Dual-Link) Female D

Connector on Second End: 1 x DisplayPort Male Digital V

Product Type: Video Cable

Basic
Brand Name:	StarTech.com
Cable Length:	19.99 cm
Cable Type:	DVI
Colour:	Black
Connector on First End:	1 x DVI-D (Dual-Link) Female D
Connector on Second End:	1 x DisplayPort Male Digital V
Product Type:	Video Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	DP2DVIS
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Marketing Content:	The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Product Name:	DisplayPort to DVI Active Adapter
Product Type:	Video Cable

Lock
Cable Length:	19.99 cm

Miscellaneous
Certifications & Standards:	CE FCC
Device Supported:	Monitor
Green Compliance Certificate/Authority:	RoHS
Green Compliant:	Yes

Physical Characteristics
Colour:	Black

Product Information
Cable Length:	19.99 cm
Device Supported:	Monitor

Technical Information
Cable Length:	19.99 cm
Cable Type:	DVI
Conductor:	Copper
Connector on First End:	1 x DVI-D (Dual-Link) Female Digital Video
Connector on Second End:	1 x DisplayPort Male Digital Video
Device Supported:	Monitor

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 481711

Vendor Part No DP2DVIS

UPC/EAN Number 065030842327
