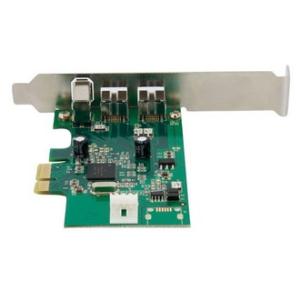

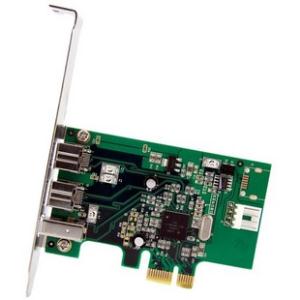

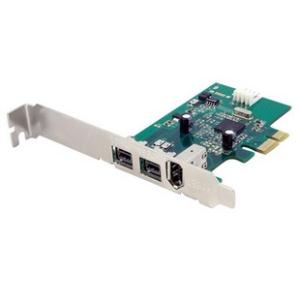

Startech 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter PEX1394B3

Features

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

PEX1394B3




Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot

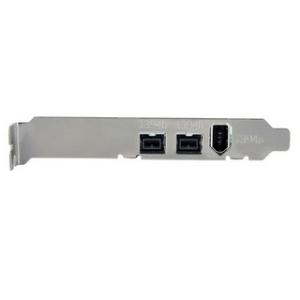

  • Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps


  • One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps


  • Built with a native PCI Express chipset, no bridge chip


This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).


The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.


The StarTech.com Advantage
  • Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
  • Utilizes a native PCI Express chipset design rather than a bridge chip, ensuring a fast, reliable and cost-effective FireWire expansion
  • Backed by a StarTech.com lifetime warranty and free lifetime technical support

Applications
  • Add a high speed FireWire port to a desktop without any FireWire ports
  • Connect a digital camera to a desktop with a PCI Express slot to download photos and video
  • Connect a high-speed external hard drive to a PCI Express-enabled system

Warranty Information

Warranty
Lifetime

Hardware

Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Chipset ID
LSI/Agere - FW643

Industry Standards
IEEE-1394/1394A/1394B

OHCI

PCI 2.2

Interface
FireWire 800 (1394b)

Ports
3

Performance

Maximum Data Transfer Rate
800 Mbps

Connector(s)

Connector Type(s)
1 - PCI Express x1 Male

External Ports
1 - FireWire 400 (6 pin, IEEE 1394a) Female

2 - FireWire 800 (9 pin, IEEE 1394b) Female

Internal Ports
1 - SP4 (4 pin, Small Drive Power) Male

Software

OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2016

Mac OS® 10.6 to 10.12

Linux 3.5.x to 4.4.x LTS Versions Only

Special Notes / Requirements

Note
The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party

System and Cable Requirements
PCI Express enabled computer with an available PCI Express x1 slot or higher

Environmental

Humidity
0~90% RH

Operating Temperature
0°C to 70°C (32°F to 158°C)

Storage Temperature
-20°C to 90°C (-4°F to 194°C)

Physical Characteristics

Product Height
4.7 in [120 mm]

Product Length
3.5 in [90 mm]

Product Weight
1.8 oz [50 g]

Product Width
0.7 in [18 mm]

Packaging Information

Shipping (Package) Weight
0.5 lb [0.2 kg]

What's in the Box

Included in Package
1 - PCI Express FireWire Card

1 - FireWire cable

1 - Low Profile Bracket

1 - Software CD

1 - Instruction Manual



3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - 1394 FW PCIe FireWire 800 / 400 Card


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Product Type: FireWire Adapter
Total Number of FireWire/i.LINK Ports: 3


Basic

Brand Name:
StarTech.com

Form Factor:
Plug-in Card

Host Interface:
PCI Express

Product Type:
FireWire Adapter

Total Number of FireWire/i.LINK Ports:
3
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
PEX1394B3

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Package Contents:
  • 2 Port FireWire 800 + 1 Port FireWire 400 PCI Express Card
  • Software

Product Model:
PEX1394B3

Product Name:
3 Port 2b 1a 1394 PCI Express FireWire Card

Product Type:
FireWire Adapter
Interfaces/Ports

Host Interface:
PCI Express

Number of FireWire/i.LINK 400 Ports:
1

Number of FireWire/i.LINK 800 Ports:
2

Total Number of FireWire/i.LINK Ports:
3
Miscellaneous

Additional Information:
  • Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices.
  • Utilizes a native PCI Express chipset design rather than a bridge chip, ensuring a fast, reliable and cost-effective FireWire expansion.

Form Factor:
Plug-in Card

Package Contents:
  • 2 Port FireWire 800 + 1 Port FireWire 400 PCI Express Card
  • Software

Platform Supported:
PC
Physical Characteristics

Form Factor:
Plug-in Card

Platform Supported:
PC
Product Information

Form Factor:
Plug-in Card

Platform Supported:
PC
Technical Information

Host Interface:
PCI Express

Platform Supported:
PC
Warranty

Limited Warranty:
2 Year
