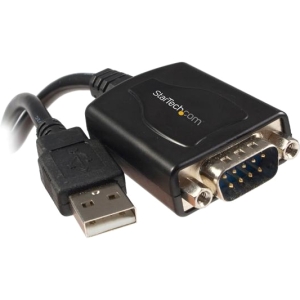

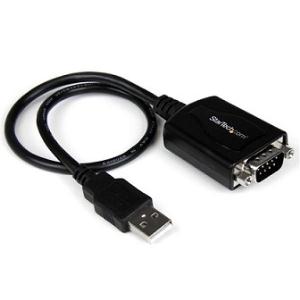

Startech 1 Port Professional USB to Serial Adapter Cable with COM Retention ICUSB2321X

Features

Click to view full size

startech type information professional manufacturer

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Startech's MPN:

ICUSB2321X

Add one serial RS-232 port with com retention to any laptop or computer with a USB port

USB to Straight-Through RS232 Serial Adapter
COM Port assignments maintained across reboot
Single cable design for portability

The ICUSB2321X Professional grade USB Serial Adapter cable converts a USB 2.0 port into an RS232 serial port allowing you to connect to, monitor and control your serial devices. A durable, single cable design makes this the perfect solution for mobile technicians/administrators that require serial connectivity. Once connected, the USB to serial adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the port provided by the adapter in the event it is disconnected, then re-connected to the host computer.

This innovative adapter offers a professional grade solution for connecting legacy or industrial RS232 serial devices to more modern computers, or computers with unused USB ports – perfect for connecting serial modems, barcode scanners or any device with serial sync through USB, eliminating the expense of upgrading the serial peripheral for USB compatibility.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices with minimal hassle
Easy plug and play installation with USB Powered device - no power outlet required
Extensive list of compatible operating systems makes this device perfect for almost any RS232 application

Applications

Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Connect, monitor and control industrial/automotive sensors and equipment
Connect bar code scanners, receipt printers and other point of sale devices
Connect a satellite receiver, serial modem, or PDA with serial sync
Connect and program LED and Digital signage boards with serial communication ports

Warranty Information
Warranty	2 Years
Hardware
Bus Type	USB 2.0
Chipset ID	Texas Instruments - TIUSB3410
Interface	Serial
Port Style	Cable Adapters
Ports	1
Performance
FIFO	32 Bytes
Max Baud Rate	230.4 Kbps
Serial Protocol	RS-232
Connector(s)
Connector Type(s)	1 - DB-9 (9 pin, D-Sub) Male
	1 - USB Type-A (4 pin) USB 2.0 Male
Software
OS Compatibility	Windows® XP, Vista, 7, 8 Windows Server® 2003, 2008 R2, 2012, 2016
Special Notes / Requirements
System and Cable Requirements	One available USB 1.1 (or above) port
Environmental
Humidity	5~85% RH
Operating Temperature	-10°C to 80°C (14°F to 176°F)
Storage Temperature	-20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Cable Length	1 ft [0.3 m]
Color	Black
Enclosure Type	Plastic
Product Height	0.5 in [13 mm]
Product Length	16.5 in [420 mm]
Product Weight	1.2 oz [33.4 g]
Product Width	1.4 in [35 mm]
Packaging Information
Shipping (Package) Weight	0.3 lb [0.1 kg]
What's in the Box
Included in Package	1 - USB to Serial Adapter
	1 - Driver CD
	1 - Instruction Manual

1 Port Professional USB to Serial Adapter Cable with COM Retention - USB to DB9 - USB to Serial Port

Brand Name: StarTech.com

Colour: Black

Connector on First End: 1 x Type A Female USB

Connector on Second End: 1 x DB-9 Male Serial

Product Type: Data Transfer Cable

Basic
Brand Name:	StarTech.com
Colour:	Black
Connector on First End:	1 x Type A Female USB
Connector on Second End:	1 x DB-9 Male Serial
Product Type:	Data Transfer Cable

General Information
Brand Name:	StarTech.com
Manufacturer Part Number:	ICUSB2321X
Manufacturer Website Address:	http://www.startech.com/au
Manufacturer:	StarTech.com
Product Model:	ICUSB2321X
Product Name:	1 Port Professional USB to Serial Adapter Cable with COM Retention
Product Type:	Data Transfer Cable

Miscellaneous
Additional Information:	Operating System(s): Windows 8 (32-bit) Windows 7 / Vista / XP(32/64-bit) Windows Server 2003 (32/64-bit)

Miscellaneous

Additional Information:

Operating System(s):

Windows 8 (32-bit)
Windows 7 / Vista / XP(32/64-bit)
Windows Server 2003 (32/64-bit)

Physical Characteristics
Colour:	Black
Weight (Approximate):	33.5 g

Technical Information
Conductor:	Copper
Connector on First End:	1 x Type A Female USB
Connector on Second End:	1 x DB-9 Male Serial

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 481478

Vendor Part No ICUSB2321X

UPC/EAN Number 065030827270
