Thermaltake Core V21 Mini Case USB 3.0 (No PSU) CA-1D5-00S1WN-00

Features
ca-1d5-00s1wn-00 core performance chassis cooling
Click to view full size
designed rsquo motherboard vertical horizontal
Click to view full size

(Pictures are For Illustration Purposes Only)

Thermaltake

Thermaltake's MPN:

CA-1D5-00S1WN-00




Details:

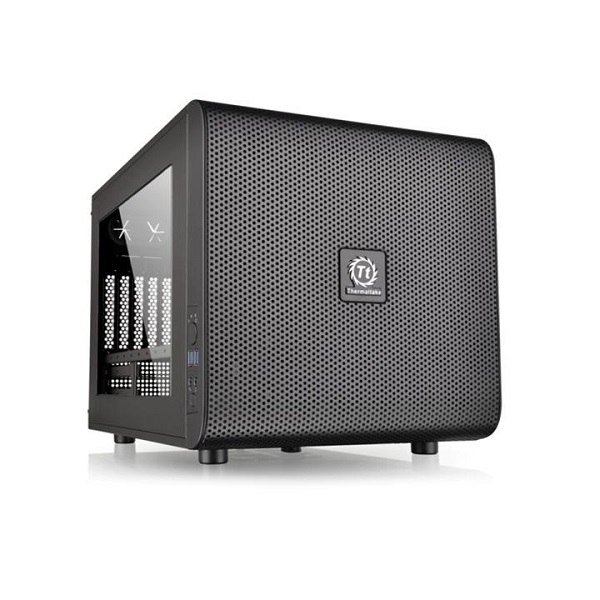

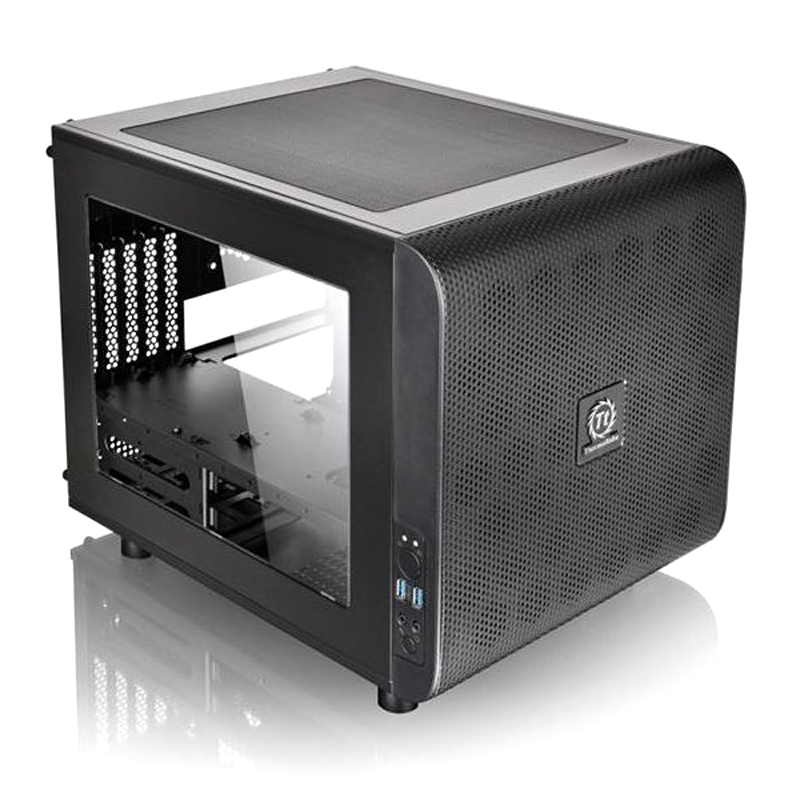

Thermaltake Core V21 Micro Chassis


As the latest addition to the Core V Series, the new Thermaltake Core V21 sports a quadrate micro M-ATX-based chassis that offers an endless stackable and flexible thermal solution. It allows externally-modular upgrades for enthusiasts to create dual systems. Designed for use in either a vertical or horizontal orientation on the motherboard, users can customise the chassis for the best viewing presentation. A 200mm fan on the front panel ensures that the Core V21 delivers outstanding cooling performance with compatibility for extensive DIY/AIO LCS, further enhancing the reputation that the air cooling units of the series has become renowned for. Guaranteed to be an immensely powerful system, the Core V21 also has the ability to accommodate various overclocking components to boost performance even further where it counts!

Vertical or Horizontal Motherboard Placement


The Core V21 is designed for use in either a vertical or horizontal orientation on the motherboard. Built for customization that reflects the enthusiast’s personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance. A removable PSU dust filter is embedded in the bottom panel of the chassis. Additionally, shockproof rubber gaskets on the PSU bracket help to minimize noise during operation.
/></div> <div class=

Stackable and Flexible Thermal Solution


With its endless stackable design, the Core V21 is in a class above the rest. Virtually limitless utility is possible. It’s the first expandable system that allows enthusiasts to incorporate externally -modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby allowing for a dedicated top/bottom set-up for pure cooling. The maximum radiator length supported is 600mm at the front of the stack.
/></div> <p class=

Remarkable Expansion


Designed for high-end gaming system compatibility, the Core V21’s modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA up to 350mm in length, and a tower CPU cooler up to 185mm in height. Even with a high-wattage PSU of up to 200mm in length, there’s still plenty of space available for cable management. Moreover, two 240mm radiators can be installed on top of the chassis, delivering superior cooling performance.
/></div> <div class=

Optimized Ventilation


With its exceptional cooling ability, the Core V21 offers various mounting points to support all types of cooling systems, including DIY/AIO liquid-cooling systems and air-cooling units. A large 200mm fan is preinstalled on the front to guarantee that any type of gaming system can be accommodated.
/></div> <div class=

Chambers Concept


The Core V21 is optimized for space management. It is divided into two main chambers: the upper chamber is made for cooling performance and efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.
/></div> <div class=


Specifications:

  • P/N: CA-1D5-00S1WN-00
  • Case Type: Micro Case
  • Dimension (HxWxD): 336 x 320 x 424mm (13.2 x 12.6 x 16.7")
  • Net Weight: 6.5 kg / 14.3 lb
  • Side Panel: Transparent Window
  • Colour: Black
  • Material: SPCC
  • Cooling System Front (intake): 200 x 200 x 30mm fan (800rpm, 13dBA)
  • Drive Bays Hidden: 3 x 3.5" or 2.5", 3 x 2.5"
  • Expansion Slots: 5
  • Motherboards:
    • 6.7" x 6.7" (Mini ITX)
    • 9.6" x 9.6" (Micro ATX)
  • I/O Ports:
    • 2 x USB 3.0
    • 1 x HD Audio
  • PSU: Standard PS2 PSU (optional)
  • LCS Upgradable: Supports 1/2", 3/8", 1/4" water tube
  • Fan Support:
    • Front:
      • 1 x 120mm or 2 x 120mm
      • 1 x 140mm or 2 x 140mm
      • 1 x 200mm
    • Top:
      • 1 x 120mm or 2 x 120mm or 3 x 120mm or 4 x 120mm
      • 1 x 140mm or 2 x 140mm
    • Rear:
      • 1 x 120mm
      • 1 x 140mm
    • Bottom: 1 x 120mm or 2 x 120mm
    • Left / Right Side:
      • 1 x 120mm or 2 x 120mm
      • 1 x 140mm or 2 x 140mm
  • Radiator Support:
    • Front:
      • 1 x 120mm or 1 x 240mm
      • 1 x 140mm
    • Top:
      • 2 x 120mm or 2 x 240mm
      • 1 x 140mm or 1 x 280mm
    • Rear: 1 x 120mm
    • Left / Right Side:
      • 1 x 120mm or 1 x 240mm
      • 1 x 140mm or 1 x 280mm
  • CPU cooler height limitation: 185mm
  • VGA length limitation: 350mm
  • PSU length limitation: 200mm (With Bottom Fan)
