Startech Slim USB 3.0 to HDMI External Video Card Multi Monitor Adapter – 1920x1200 / 1080p USB32HDES

Features
usb32hdes adapter hdmi video windows
Click to view full size
slim chipset startech product display
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB32HDES

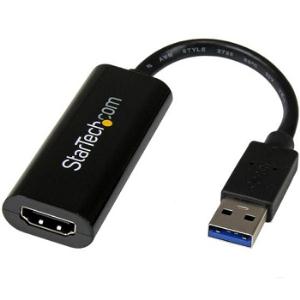

Connect an HDMI display through this slim USB 3.0 Adapter for a multi-monitor solution ideal for your Ultrabook® or Laptop


  • Slim lightweight design


  • Ultra-portable


  • SuperSpeed USB 3.0 (5 Gbps)


The USB32HDES Slim USB 3.0 to HDMI Adapter turns a USB 3.0 port into an HDMI output with 1920x1200/1080p video support. The adapter minimizes clutter with a slim design that seamlessly blends with your video cable - an ideal space-saving solution for multi-monitor applications on Ultrabook™, laptop, or desktop computers.


Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).


To save space while travelling, this ultra-portable USB to HDMI adapter features a lightweight, small footprint design that fits easily in a laptop carrying bag.


Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display/projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.


The USB32HDES is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Three monitors attached to a single computer using two USB adapters



Recommended System Requirements:



Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher

USB 3.0 Port (Backwards compatible with USB 2.0)


The StarTech.com Advantage
  • Minimizes clutter, with a slim design that blends seamlessly with your video cable
  • Ensures smooth, High-Definition video content, using a high bandwidth USB 3.0 connection
  • Ideal for travel with an ultra-portable small footprint and lightweight design

Applications
  • Add a secondary HDMI display with full HD capability
  • View large or multiple spreadsheets across several displays
  • Use the adapter to connect your PC to your HDMI-equipped projector or display for viewing family pictures and movies
  • Add multi-monitor capability to a single computer, to create engaging multimedia presentations
  • Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other
  • Run multiple applications on different screens - check your email on one display and search the web on the other

Warranty Information

Warranty
2 Years

Hardware

Audio
Yes

Chipset ID
T5-302/MCT

Memory
16MB DDRII SDRAM

Output Signal
HDMI

USB Pass-Through
No

Performance

Audio Specifications
2-Channel Stereo (48Khz)

General Specifications
This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.

Maximum Digital Resolutions
1920x1200/1080p

Supported Resolutions

Widescreen(16/32 Bit):


1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720



Standard(16/32 Bit):


1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - USB Type-A (9 pin) USB 3.0 Male Input

Connector B
1 - HDMI (19 pin) Female Output

Software

Microsoft WHQL Certified
Yes

OS Compatibility
Windows® 10 (32/64)

Windows 8 / 8.1 (32/64)

Windows 7(32/64)

Windows Vista (32/64)

Windows XP (32/64)

Special Notes / Requirements

Note
Connect a maximum of five USB32HDES adapters on a single PC - See manual for system requirements

System and Cable Requirements

Cpu:
i3 Dual core 2.8GHz


Ram:
2GB or higher



Full Hd Video:



Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher

Power

Power Source
USB-Powered

Environmental

Humidity

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-10°C to 75°C (14°F to 167°F)

Physical Characteristics

Cable Length
2.4 in [62 mm]

Color
Black

Enclosure Type
Plastic

Product Height
0.5 in [12 mm]

Product Length
7.5 in [190 mm]

Product Weight
0.8 oz [23.5 g]

Product Width
1 in [25 mm]

Packaging Information

Shipping (Package) Weight
5.3 oz [150 g]

What's in the Box

Included in Package
1 - Slim USB 3.0 Video Adapter

1 - Driver CD

1 - instruction manual



Slim USB 3.0 to HDMI External Video Card Multi Monitor Adapter 1920x1200 1080p


Brand Name: StarTech.com
Chipset Manufacturer: MCT
Chipset Model: T5-302
Form Factor: External
HDMI: Yes
Host Interface: USB 3.0
Maximum Resolution: 1920 x 1200
Product Type: Graphic Adapter


Basic

Brand Name:
StarTech.com

Chipset Manufacturer:
MCT

Chipset Model:
T5-302

Form Factor:
External

HDMI:
Yes

Host Interface:
USB 3.0

Maximum Resolution:
1920 x 1200

Product Type:
Graphic Adapter
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB32HDES

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Packaged Quantity:
1

Product Name:
Slim USB 3.0 Video Adapter

Product Type:
Graphic Adapter
Interfaces/Ports

HDMI:
Yes

Host Interface:
USB 3.0

Number of HDMI Outputs:
1
Miscellaneous

Certifications & Standards:
  • FCC
  • CE

Environmental Certification:
RoHS

Environmentally Friendly:
Yes

Package Contents:
  • Slim USB 3.0 Video Adapter
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:
PC

System Requirements:
  • CPU: Quad Core 2.4GHz or Higher (i5 recommended)
  • RAM: 4GB or higher
  • USB 3.0 port (Backwards compatible with USB 2.0)

OS Compatibility:
  • Windows® 10 (32/64)
  • Windows 8 / 8.1 (32/64)
  • Windows 7(32/64)
  • Windows Vista (32/64)
  • Windows XP (32/64)
Physical Characteristics

Form Factor:
External

Height:
12 mm

Length:
62 mm


Weight (Approximate):

2.4 g

Width:
25 mm
Processor & Chipset

Chipset Manufacturer:
MCT

Chipset Model:
T5-302
Technical Information

Digital Signal:
Yes

Maximum Resolution:
1920 x 1200
Warranty

Limited Warranty:
2 Year
Print this page
Information
SKU/Item No481095
Vendor Part NoUSB32HDES
UPC/EAN Number065030854887
Our Stock **     (click for more info)
Price
$69.34
