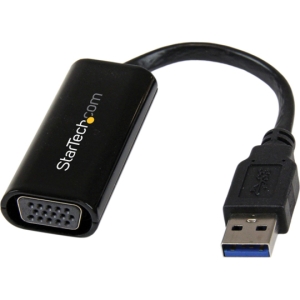

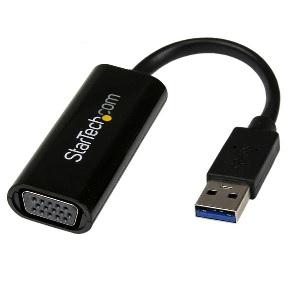

Startech Slim USB 3.0 to VGA External Video Card Multi Monitor Adapter – 1920x1200 / 1080p USB32VGAES

Features
usb32vgaes adapter video slim windows
Click to view full size
startech chipset product display port
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB32VGAES




Connect a VGA display through this slim USB 3.0 Adapter for a multi-monitor solution ideal for your Ultrabook® or Laptop


  • Slim lightweight design


  • Ultra-portable


  • SuperSpeed USB 3.0 (5 Gbps)


The USB32VGAES Slim USB 3.0 to VGA Adapter turns a USB 3.0 port into a VGA output port with 1920x1200/1080p video support. The adapter minimizes clutter with a slim design that seamlessly blends with your video cable - an ideal space-saving solution for multi-monitor applications on Ultrabook™, laptop, or desktop computers.


Functioning as an external graphics card, this USB to VGA adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).


To save space while travelling, this ultra-portable USB to VGA adapter features a lightweight, small footprint design that fits easily in a laptop carrying bag.


Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your VGA display/projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.


The USB32VGAES is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Three monitors attached to a single computer using two USB adapters



Recommended System Requirements:



Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher

USB 3.0 port (Backwards compatible with USB 2.0)


The StarTech.com Advantage
  • Minimizes clutter, with a slim design that blends seamlessly with your video cable
  • Ensures smooth, High-Definition video content, using a high bandwidth USB 3.0 connection
  • Ideal for travel with an ultra-portable small footprint and lightweight design

Applications
  • Add a secondary VGA display with full HD capability
  • View large or multiple spreadsheets across several displays
  • Use the adapter to connect your PC to your VGA-equipped projector or display for viewing family pictures and movies
  • Add multi-monitor capability to a single computer, to create engaging multimedia presentations
  • Have reference material on one display and a working document copy on the other
  • Run multiple applications on different screens - check your email on one display and search the web on the other

Warranty Information

Warranty
2 Years

Hardware

Chipset ID
T5-302/MCT

Memory
16MB DDRII SDRAM

Ports
1

USB Pass-Through
No

Performance

General Specifications
This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.

Maximum Analog Resolutions
1920x1200/1080p

Supported Resolutions

Widescreen(16/32 Bit):


1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720



Standard(16/32 Bit):


1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600

Wide Screen Supported
Yes

Connector(s)

Connector A
1 - USB Type-A (9 pin) USB 3.0 Male Input

Connector B
1 - VGA (15 pin, High Density D-Sub) Female Output

Software

Microsoft WHQL Certified
Yes

OS Compatibility
Windows® 10 (32/64)

Windows 8 / 8.1 (32/64)

Windows 7(32/64)

Windows Vista (32/64)

Windows XP (32/64)

Special Notes / Requirements

Note
Connect a maximum of five USB32VGAES adapters on a single PC - See manual for system requirements

System and Cable Requirements

Cpu:
i3 Dual core 2.8GHz


Ram:
2GB or higher



Full Hd Video:



Cpu:
Quad Core 2.4GHz or Higher (i5 recommended)


Ram:
4GB or higher

Power

Power Source
USB-Powered

Environmental

Humidity

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-10°C to 75°C (14°F to 167°F)

Physical Characteristics

Cable Length
2.4 in [62 mm]

Color
Black

Enclosure Type
Plastic

Product Height
0.5 in [12 mm]

Product Length
7.5 in [190 mm]

Product Weight
0.9 oz [25 g]

Product Width
1 in [25 mm]

Packaging Information

Shipping (Package) Weight
0 lb [0 kg]

What's in the Box

Included in Package
1 - Slim USB 3.0 Video Adapter

1 - Driver CD

1 - Instruction Manual



Slim USB 3.0 to VGA External Video Card Multi Monitor Adapter1920x1200 1080p


Brand Name: StarTech.com
Chipset Manufacturer: MCT
Chipset Model: T5-302
Form Factor: External
Host Interface: USB 3.0
Maximum Resolution: 1920 x 1200
Product Type: Graphic Adapter
VGA: Yes


Basic

Brand Name:
StarTech.com

Chipset Manufacturer:
MCT

Chipset Model:
T5-302

Form Factor:
External

Host Interface:
USB 3.0

Maximum Resolution:
1920 x 1200

Product Type:
Graphic Adapter

VGA:
Yes
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB32VGAES

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Marketing Content:
The USB32VGAES Slim USB 3.0 to VGA Adapter turns a USB 3.0 port into a VGA output port with 1920x1200/1080p video support. The adapter minimizes clutter with a slim design that seamlessly blends with your video cable-an ideal space-saving solution for multi-monitor applications on Ultrabook, laptop, or desktop computers.

Packaged Quantity:
1

Product Name:
Slim USB 3.0 Video Adapter

Product Type:
Graphic Adapter
Interfaces/Ports

Host Interface:
USB 3.0

Number of VGA Outputs:
1

VGA:
Yes
Miscellaneous

Certifications & Standards:
  • FCC
  • CE

Environmental Certification:
RoHS

Environmentally Friendly:
Yes

Package Contents:
  • Slim USB 3.0 Video Adapter
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:
PC

System Requirements:
  • CPU: Quad Core 2.4GHz or Higher (i5 recommended)
  • RAM: 4GB or higher
  • USB 3.0 port (Backwards compatible with USB 2.0)

Operating System(s):
  • Windows 8 (32/64)
  • Windows 8.1 (32/64)
  • Windows 7 (32/64)
  • Windows Vista (32/64)
  • Windows XP (32/64)
Physical Characteristics

Form Factor:
External

Height:
12 mm

Length:
62 mm


Weight (Approximate):

2.4 g

Width:
25 mm
Processor & Chipset

Chipset Manufacturer:
MCT

Chipset Model:
T5-302
Technical Information

Analog Signal:
Yes

Maximum Resolution:
1920 x 1200
Warranty

Limited Warranty:
2 Year
