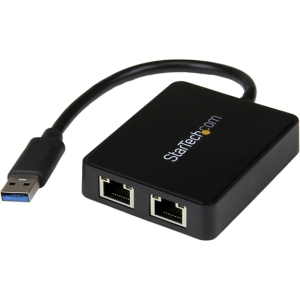

Startech USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Port USB32000SPT

Features
usb32000spt port gigabit ethernet network
Click to view full size
ports supported adapter type rj-45
Click to view full size

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure

Startech's MPN:

USB32000SPT




Add two Gigabit Ethernet ports and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port


  • Dual Gigabit Ethernet ports through a single USB connection


  • Integrated USB 3.0 pass-through port


  • IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible


The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.


This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.


The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Connect to two different networks simultaneously, through a single USB 3.0 port
  • Conserve available USB 3.0 ports with USB pass-through

Applications
  • Business or IT professionals that need to connect to two separate networks simultaneously
  • Run a virtual machine(s) on a workstation, with access to separate physical network connections
  • Replacement for a failed built-in Gigabit Ethernet port on a laptop

Warranty Information

Warranty
2 Years

Hardware

Bus Type
USB 3.0

Chipset ID
ASIX - AX88179 (2)

VIA - VL811

Industry Standards
IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az

Interface
RJ45 (Gigabit Ethernet)

Ports
2

Performance

Auto MDIX
Yes

Compatible Networks
10/100/1000 Mbps

Full Duplex Support
Yes

Jumbo Frame Support
4K max.

Max Distance
100 m / 330 ft

Maximum Data Transfer Rate
5 Gbps (USB 3.0)

2 Gbps (Ethernet - Full-Duplex)

Type and Rate
USB 3.0 - 5 Gbit/s

Connector(s)

Connector Type(s)
1 - USB Type-A (9 pin) USB 3.0 Female

1 - USB Type-A (9 pin) USB 3.0 Male

2 - RJ-45 Female

Software

OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.6 to 10.12 - VLAN tagging is currently not supported in Mac OS

Linux Kernel 2.6.25 to 4.4.x LTS Versions only

Special Notes / Requirements

System and Cable Requirements
Available USB port

Indicators

LED Indicators
1 - Gigabit Link/Activity (Amber)

2 - 10/100 Link/Activity (Green)

Power

Power Source
USB-Powered

Environmental

Humidity
5~85% RH

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Cable Length
8 in [203.2 mm]

Color
Black

Enclosure Type
Plastic

Form Factor
Attached Cable

Product Height
0.6 in [16 mm]

Product Length
3 in [75 mm]

Product Weight
2.1 oz [59 g]

Product Width
2.4 in [60 mm]

Packaging Information

Shipping (Package) Weight
5.1 oz [145 g]

What's in the Box

Included in Package
1 - USB 3.0 Dual Network Adapter

1 - Driver CD

1 - Instruction Manual



USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Port - USB 3.0 LAN Adapter - USB 3.0 2 Port Gigabit Network Adapter - USB 3 NIC


Brand Name: StarTech.com
Device Supported: PC
Form Factor: Desktop
Host Interface: USB
Network Technology: 10/100/1000Base-T
Number of Network (RJ-45) Ports: 2
Product Type: Gigabit Ethernet Card
Total Number of Ports: 2


Basic

Brand Name:
StarTech.com

Device Supported:
PC

Form Factor:
Desktop

Host Interface:
USB

Network Technology:
10/100/1000Base-T

Number of Network (RJ-45) Ports:
2

Product Type:
Gigabit Ethernet Card

Total Number of Ports:
2
General Information

Brand Name:
StarTech.com

Manufacturer Part Number:
USB32000SPT

Manufacturer Website Address: 		http://www.startech.com/au

Manufacturer:
StarTech.com

Package Contents:
  • USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Pass-Through
  • 1 x Driver CD
  • 1 x Instruction Manual

Packaged Quantity:
1

Product Name:
USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Pass-Through

Product Type:
Gigabit Ethernet Card
Interfaces/Ports

Ethernet AUI:
No

Host Interface:
USB

InfiniBand:
No


Network (Rj-45):

Yes

Number of Network (RJ-45) Ports:
2

PoE (RJ-45) Port:
No

Serial Port:
No

Total Number of Ports:
2

USB:
Yes

XJACK:
No
Media & Performance

Media Type Supported:
Twisted Pair

Network Technology:
10/100/1000Base-T
Miscellaneous

Certifications & Standards:
  • FCC
  • CE
IEEE Standards:
  • 802.3i
  • 802.3u
  • 802.3ab
  • 802.3x
  • 802.1Q

Device Supported:
PC

Form Factor:
Desktop

Green Compliance Certificate/Authority:
RoHS

Green Compliant:
Yes

Package Contents:
  • USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Pass-Through
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:
PC

System Requirements:
Windows 10
Network & Communication

InfiniBand:
No

Network Technology:
10/100/1000Base-T
Network

Network Technology:
10/100/1000Base-T
Physical Characteristics

Depth:
76.2 mm

Form Factor:
Desktop

Height:
15.2 mm

Platform Supported:
PC


Weight (Approximate):

51 g

Width:
61 mm
Power Description

PoE (RJ-45) Port:
No
Product Information

Device Supported:
PC

Form Factor:
Desktop

Packaged Quantity:
1

Platform Supported:
PC

Width:
61 mm
Technical Information

Device Supported:
PC

Host Interface:
USB

Media Type Supported:
Twisted Pair

Number of Network (RJ-45) Ports:
2

Platform Supported:
PC

USB:
Yes
Warranty

Limited Warranty:
2 Year
