APC Rack Pdu 2G. METERED-BY-OUTLET. ZEROU. 32A. 230V. (21) C13 (3) C19 AP8453

Features

ap8453 rack receptacles 60320 metered-by-outlet

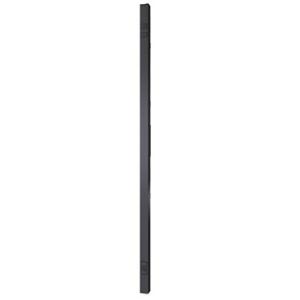

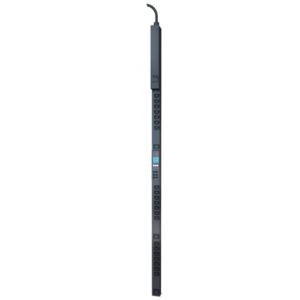

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

APC/Schneider's MPN:

AP8453

RACK PDU 2G. METERED-BY-OUTLET. ZEROU. 32A. 230V. (21) C13 (3) C19

Brand Name: APC

Form Factor: Rack-mountable

Form Factor: Vertical

Input Receptacles: IEC 60309 2P+E

Output Receptacles: 21 x IEC 60320 C13

Output Receptacles: 3 x IEC 60320 C19

Power Rating: 7.40 kVA

Product Type: PDU

Rack Height: 0U

General Information
Brand Name:	APC
Manufacturer Part Number:	AP8453
Manufacturer Website Address:	http://www.apc.com
Manufacturer:	American Power Conversion Corp
Marketing Information:	The Schneider Electric Rack Po wer Distribution Unit (PDU) distributes power to devices in a rack. The Rack PDU measures the load of the P DU, phase, banks, and each individual outlet. You can access the Rack PDU through Web, Telnet, SNMP, SSH, or StruxureWare interfaces for comprehensive configuration and monitoring functionality. The Network Port Sharing (NPS) feature allows up to four AP8XXX Rack PDUs to be conn ected together within a rack in order to share one IP address.
Product Line:	Metered
Product Name:	Metered-by-Outlet Rack PDU
Product Type:	PDU

Interfaces/Ports
Network (Rj-45):	Yes
Serial Port:	Yes
USB:	Yes

Management
Management:	Web Telnet SNMP SSH StruxureWare

Miscellaneous
Certifications & Standards:	EN 55022 Class A EN 55024 EN 61000-3-2 EN 61000-3-3 VDE CE IEC/EN 60950-1 LVD EMC
Green Compliance Certificate/Authority:	REACH
	RoHS
Green Compliant:	Yes
Package Contents:	Metered-by-Outlet Rack PDU CAN Port Terminator Installation Guide Rack Mounting Brackets Safety Guide Serial Configuration Cable

Physical Characteristics
Colour:	Black
Cord Length:	3.05 m
Depth:	51 mm
Form Factor:	Rack-mountable
	Vertical
Height:	1829 mm
Number of Cord/Cable:	1
Rack Height:	0U
Weight (Approximate):	8.21 kg
Width:	56 mm

Power Description
Input Current:	32 A
Input Voltage:	230 V AC
Output Voltage:	230 V AC
Power Rating:	7.40 kVA

Technical Information
Input Receptacles:	IEC 60309 2P+E
Output Receptacles:	21 x IEC 60320 C13
	3 x IEC 60320 C19
Protection Type:	Overcurrent Protection
	Overload Protection

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 480256

Vendor Part No AP8453

UPC/EAN Number 731304317555
