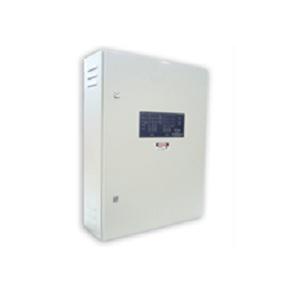

Eaton 3 Phase 160A 80kA Enclosed PPF1603CEI

Features

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Eaton's MPN:

PPF1603CEI

3 Phase 160A 80kA Enclosed

Basic Specification
Marketing Content:	Designed for IEC, Class II, 3 phase. Point of entry and sub circuit applications. An ideal combination, high performance series filter with remote alarm output for critical applications.

DEVICE FEATURES
Input Voltage:	380 - 440 Volt

DIMENSION
Depth (Mm):	200.0
Height (Mm):	800.0
Weight (Kg):	50.0
Width (Mm):	600.0

OTHER FEATURES
Other Features:	* Energy Absorption rating - per mode (Joules) :Primary protection L-N: 1,200J/ph, 3600J total, Secondary protection L-N: 600J/ph, 1,600J total,Common mode protection N-E: 2130J, Aggregate rating: 7530J* Protection modes : Line-Neutral, Neutral-Earth* Alarms/indicators : Mimic panel display via LED (2 colour), OK - Green; Protection Fault - Red. Dry contact alarm relay output – 250Vac/32Vdc, 10A, 4kV isolation, Alarm under-voltage cutoff 180Vac

OTHER FEATURES

Other Features:

* Energy Absorption rating - per mode (Joules) :Primary protection L-N: 1,200J/ph, 3600J total, Secondary protection L-N: 600J/ph, 1,600J total,Common mode protection N-E: 2130J, Aggregate rating: 7530J* Protection modes : Line-Neutral, Neutral-Earth* Alarms/indicators : Mimic panel display via LED (2 colour), OK - Green; Protection Fault - Red. Dry contact alarm relay output – 250Vac/32Vdc, 10A, 4kV isolation, Alarm under-voltage cutoff 180Vac

PRODUCT
Brand Name:	Eaton
Manufacturer Web Site:	http://www.eaton.com/
Product Model:	PPF1603CEI
Product Type:	Surge Filter

Information

SKU/Item No 470386

Vendor Part No PPF1603CEI

UPC/EAN Number 3553340680755

Our Stock ** (click for more info)

Price

$8,975.71
